Additional Info
- Standard width: min. 100 mm
- Standard length: 10 m
- Standard core diameter: 76 mm
- Further dimensions upon request

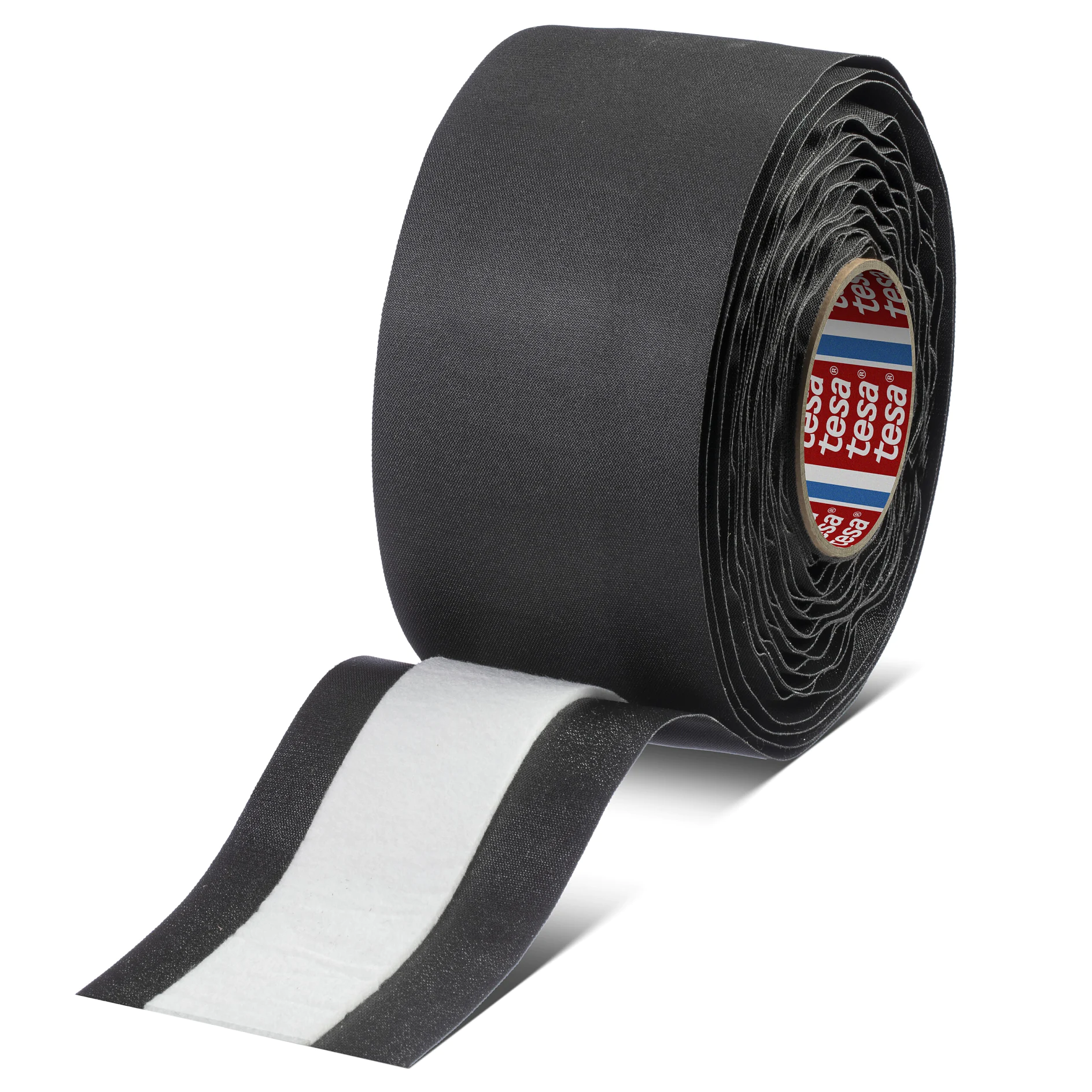

tesa® 63000 Crash Protection Sleeve
Designed to ensure maximum mechanical impact protection for wire harnesses
Product Features
- Two-layer Solution with high abrasion-resistant base and dampening inner layer
- Secure closing and fixation due to well-known tesa design
- Tightly fixation on the harness for minimized use of space but still maintaining flexibility of the harness
Product description
tesa® 63000 is a PA cloth-based wire harness sleeve with a waterborne acrylic adhesive primarily targeted to be used in vulnerable locations in the vehicle to protect harnesses against high mechanical impacts during crash. Thanks to its innovative two-layer design, tesa® 63000 is a great band-aid solution, easy to apply and secure in its application.
Product details and specifications
Product Features
- Two-layer Solution with high abrasion-resistant base and dampening inner layer
- Secure closing and fixation due to well-known tesa design
- Tightly fixation on the harness for minimized use of space but still maintaining flexibility of the harness
- High mechanical impact resistance up to 50 J
- High abrasion resistance of class F
- Temperature resistance up to 125°C
- Solvent-free adhesive
- Flag-resistant
- Excellent cable compatibility
Application Fields
- Passenger compartment
- Engine compartment
- E-Mobility applications
Product Construction
| Backing material | PA cloth |
|---|---|
| Total thickness | 2,000 µm |
| Type of adhesive | advanced acrylic |
Product Construction
| Backing material | PA cloth |
|---|---|
| Total thickness | 2,000 µm |
| Type of adhesive | advanced acrylic |
Properties / Performance Values
| Noise damping (LV312) | Class E |
|---|---|
| Abrasion resistance (5mm mandrel, LV312) | Class H |
| Temperature resistance max. | 125 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class H |
| Temperature resistance min. | -40 °C |
| Crash protection (J) | 50 J |
Properties / Performance Values
| Noise damping (LV312) | Class E |
|---|---|
| Abrasion resistance (5mm mandrel, LV312) | Class H |
| Temperature resistance max. | 125 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class H |
| Temperature resistance min. | -40 °C |
| Crash protection (J) | 50 J |
Adhesion to Values
| Adhesion to steel | 3.2 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3.2 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
