tesa® 61305
50µm double sided transparent high performance filmic tape
Product description

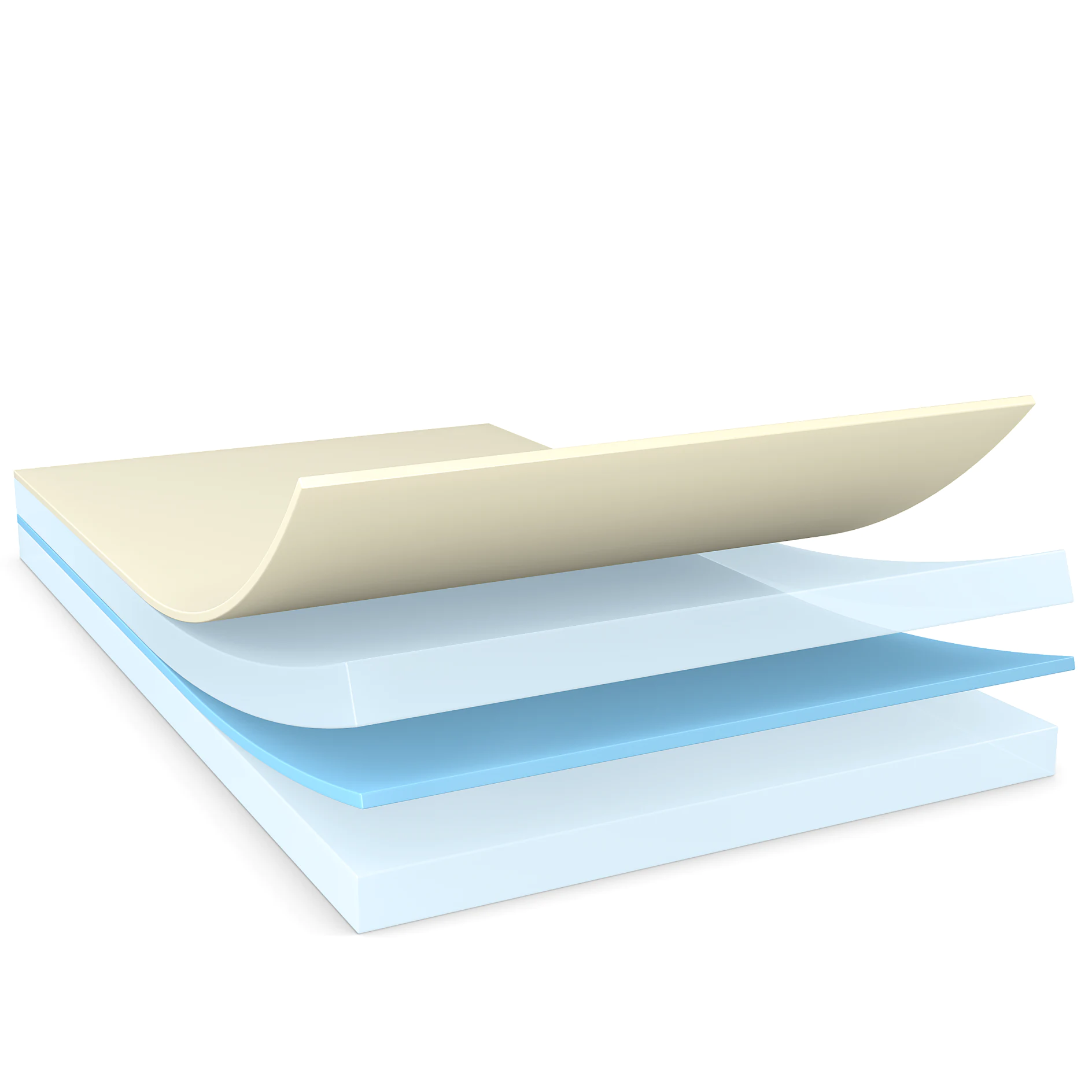

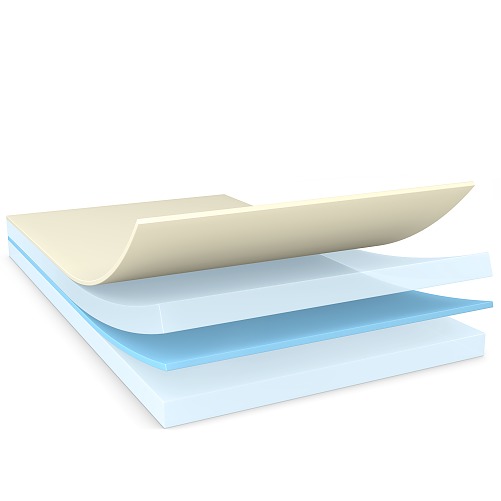

tesa® 61305 is a double sided self-adhesive tape consisting of a transparent PET backing and a tackified acrylic adhesive.
Special features:
- Thickness: 50µm
- Very high bonding strength
- Superior push out resistance
- Quick bonding performance
- Excellent resistance to demanding environmental conditions
Product details and specifications
Application Fields
- Demanding mounting applications
- Components mounting
| Backing material | PET film |
|---|---|
| Color | transparent |
| Colour of liner | white with tesa logo |
| Thickness of liner | 71 µm |
| Total thickness | 50 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | glassine |
| Weight of liner | 80 g/m² |
| Elongation at break | 60 % |
|---|---|
| Tensile strength | 8.7 N/cm |
| Temperature resistance short term | 200 °C |
| Temperature resistance long term | 100 °C |
| Tack | medium |
| Static shear resistance at 40°C | good |
| Static shear resistance at 23°C | good |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
| Adhesion to ABS (initial) | 8 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 8.5 N/cm |
| Adhesion to Glass (initial) | 12.4 N/cm |
| Adhesion to Glass (after 14 days) | 12.7 N/cm |
| Adhesion to PMMA (initial) | 11.5 N/cm |
| Adhesion to PMMA (after 14 days) | 12 N/cm |
| Adhesion to Steel (initial) | 10.3 N/cm |
| Adhesion to Steel (after 14 days) | 12.9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
