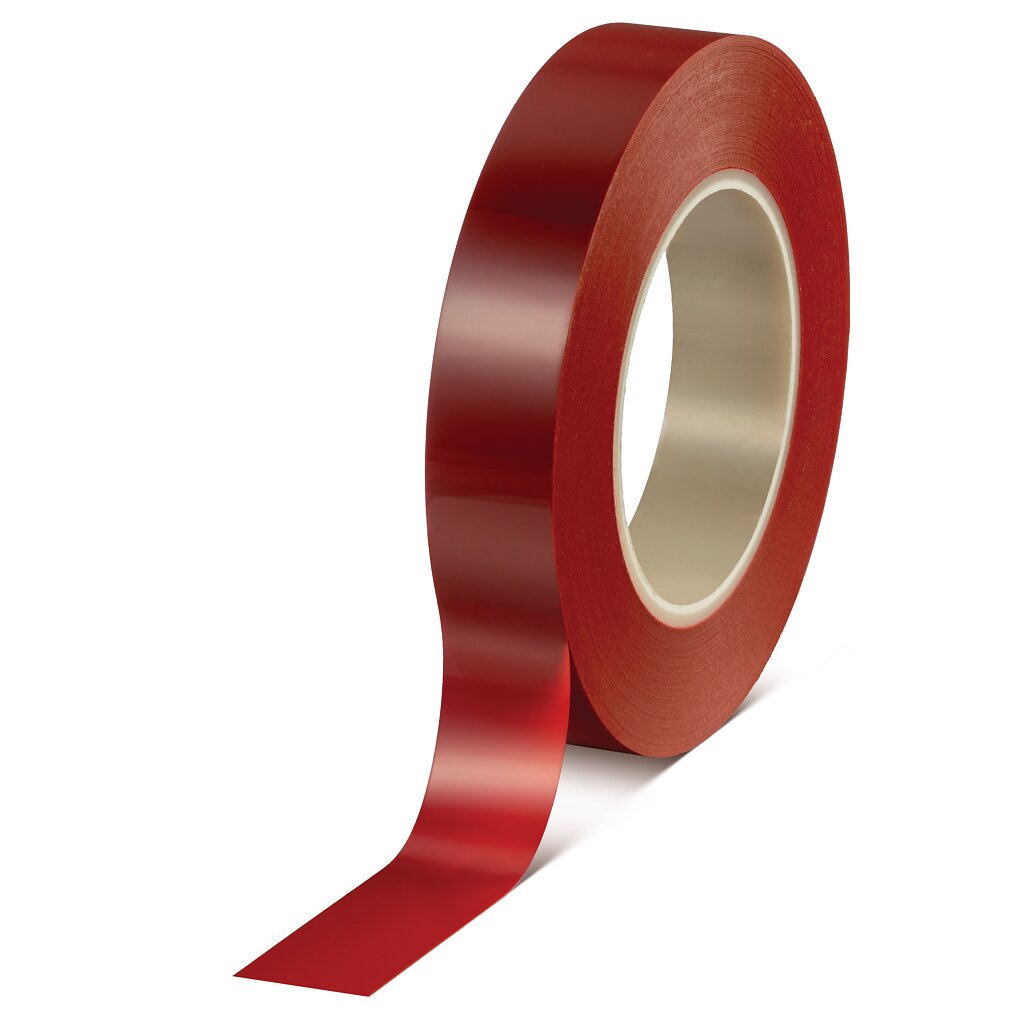

tesa® 61126

High temperature resistant polyester tape

Product description

tesa® 61126 is a premium polyester tape with a high temperature resistant silicone adhesive. Due to the high coating weight it ensures a secure bond even to rough or irregular surfaces. The excellent temperature resistance makes it suitable for high demanding applications such as masking during powder coating, galvanizing, autoclave bonding operations during composite production or wave soldering processes. tesa® 61126 dark red color provides an excellent visibility of the tape at first sight and makes it suitable for automatic detection. The masking tape's silicone adhesive system makes the tape extremely heat-resistant, withstanding extreme temperatures of up to 220°C for as long as 7 hours at a time. The high-temperature tape features easy application and easy one-piece removal without leaving residues behind.
Benefits:

Long-term high temperature resistance (220°C / 7h or 200°C / 24h)
High coating weight for secure bonding even on irregular surface or non-polar materials
Removable in one piece without leaving residues
Excellent visibility and contrast

Product details and specifications

Application Fields

tesa® 61126 is used for masking off areas that are to be protected during powder-coating and galvanizing processes that require a tape with high coating weight and excellent visibility and contrast
The high-temperature tape is recommended for bonding and splicing of non-polar material, high temperature exposure and bonding operations during composite production
tesa® 61126 can withstand temperatures of up to 220°C for 7 hours
The masking tape features residue-free removal

Backing material	PETP
Total thickness	125 µm
Type of adhesive	silicone

Backing material	PETP
Total thickness	125 µm
Type of adhesive	silicone

Elongation at break	140 %
Tensile strength	60 N/cm

Elongation at break	140 %
Tensile strength	60 N/cm

Adhesion to steel	4.3 N/cm

Adhesion to steel	4.3 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 61126_en-SG 66 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Name of product	tesa® 61126	tesa® 4331	tesa® 61124	tesa® 50600 Standard	tesa® 51407	tesa® 51408	tesa® 50650 Conformable	tesa® 4831	tesa® 4338 PV1	tesa® 4316 PV3	tesa® 4318 PV2
Total thickness	125 µm	110 µm	60 µm	80 µm	62 µm	65 µm	55 µm	125 µm	145 µm	140 µm	170 µm
Type of adhesive	silicone	silicone	silicone	silicone	silicone	silicone	silicone	acrylic	natural rubber	natural rubber	natural rubber
Backing material	PETP	PET / non-woven	PETP	PET	Polyimide	Polyimide	PETP	PET / non-woven	slightly-creped paper	slightly-creped paper	slightly-creped paper
Adhesion to steel	4.3 N/cm	4 N/cm	3.5 N/cm	4 N/cm	2.5 N/cm	2.8 N/cm	3.3 N/cm	3.5 N/cm	4 N/cm	3.4 N/cm	4 N/cm
