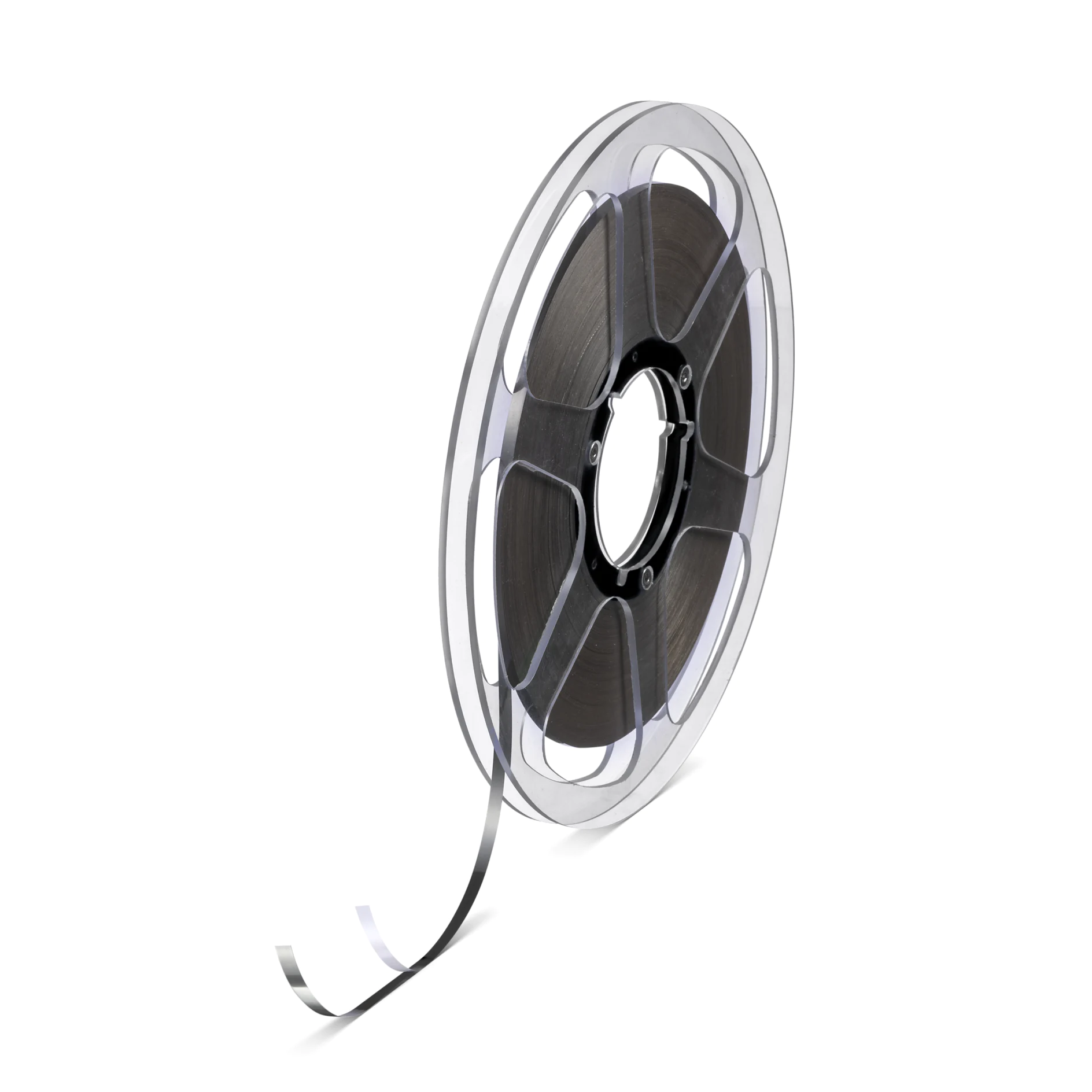

tesa® 60860
58µm single-sided high conductivity charge collector tape
Product description
tesa® 60860 is a single-sided electrically conductive self-adhesive tape. It consists of an electrically conductive tin-plated copper backing with an electrically conductive acrylic adhesive and has been designed for use as self-adhesive bus bar in thin film solar panels and EMI shielding for electronics devices
tesa® 60860 features especially:
- Excellent XYZ conductivity
- Reliable performance after damp heat storage and electrical ageing
- Good initial adhesion and shear resistance
- Tear resistant PET liner for automated application
- Withstands common lamination process in solar industry
- 35 µm soft tin-plated copper backing
Product details and specifications
Application Fields
- Charger collector tape for thin film solar panels
- EMI shielding for smart phone, Note PC, tablet PC applications in electronics

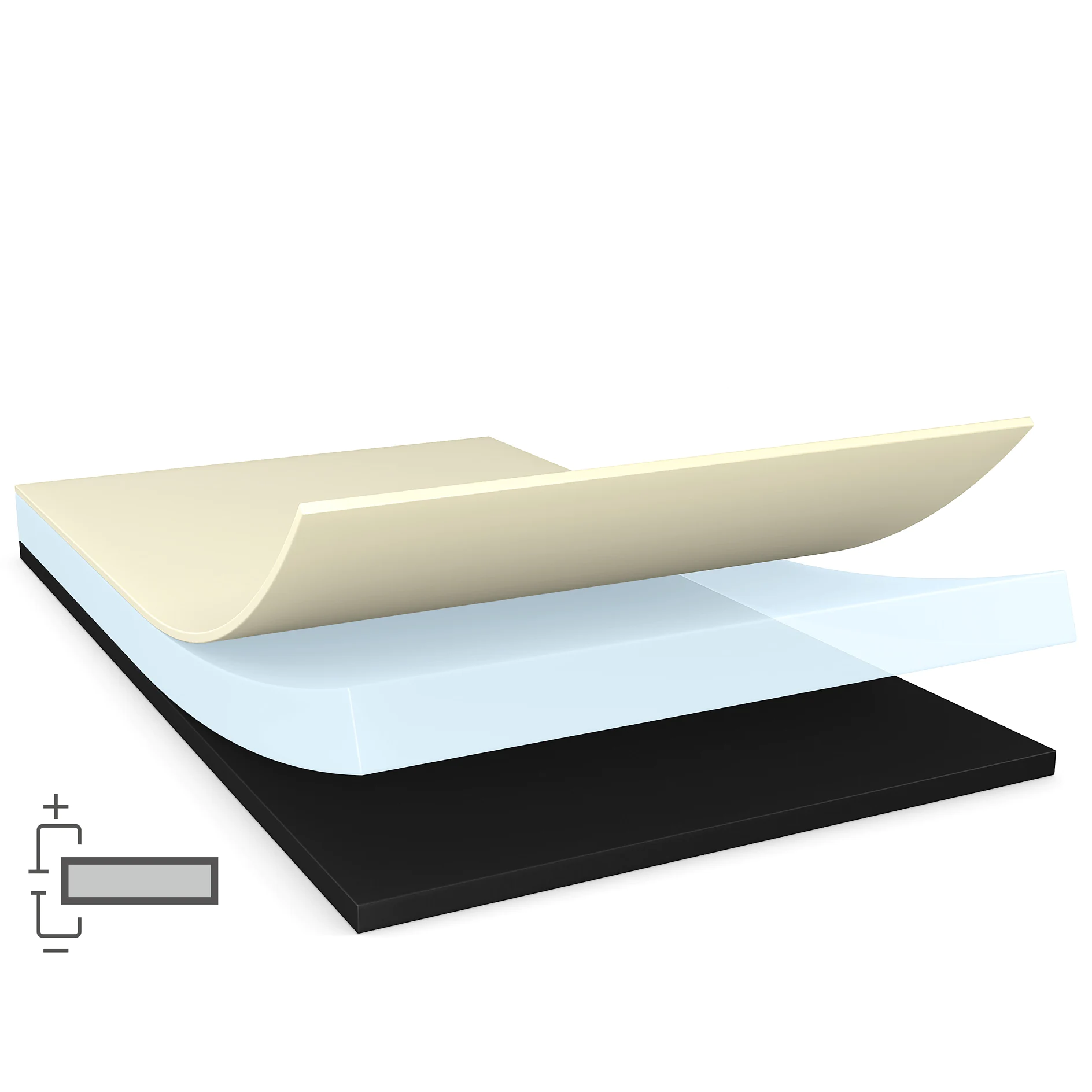

Product Construction
| Backing material | tin-plated copper |
|---|---|
| Color | silver |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 58 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
Product Construction
| Backing material | tin-plated copper |
|---|---|
| Color | silver |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 58 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
Properties / Performance Values
| Tensile strength | 50 N/cm |
|---|---|
| Static shear resistance at 40°C | good |
| Contact resistance z-direction | 2 mOhm |
| Temperature resistance short term | 200 °C |
Properties / Performance Values
| Tensile strength | 50 N/cm |
|---|---|
| Static shear resistance at 40°C | good |
| Contact resistance z-direction | 2 mOhm |
| Temperature resistance short term | 200 °C |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 7 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel (after 14 days) | 7 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
