tesa® 60215

500µm single sided grey electrically conductive foam tape

Product description

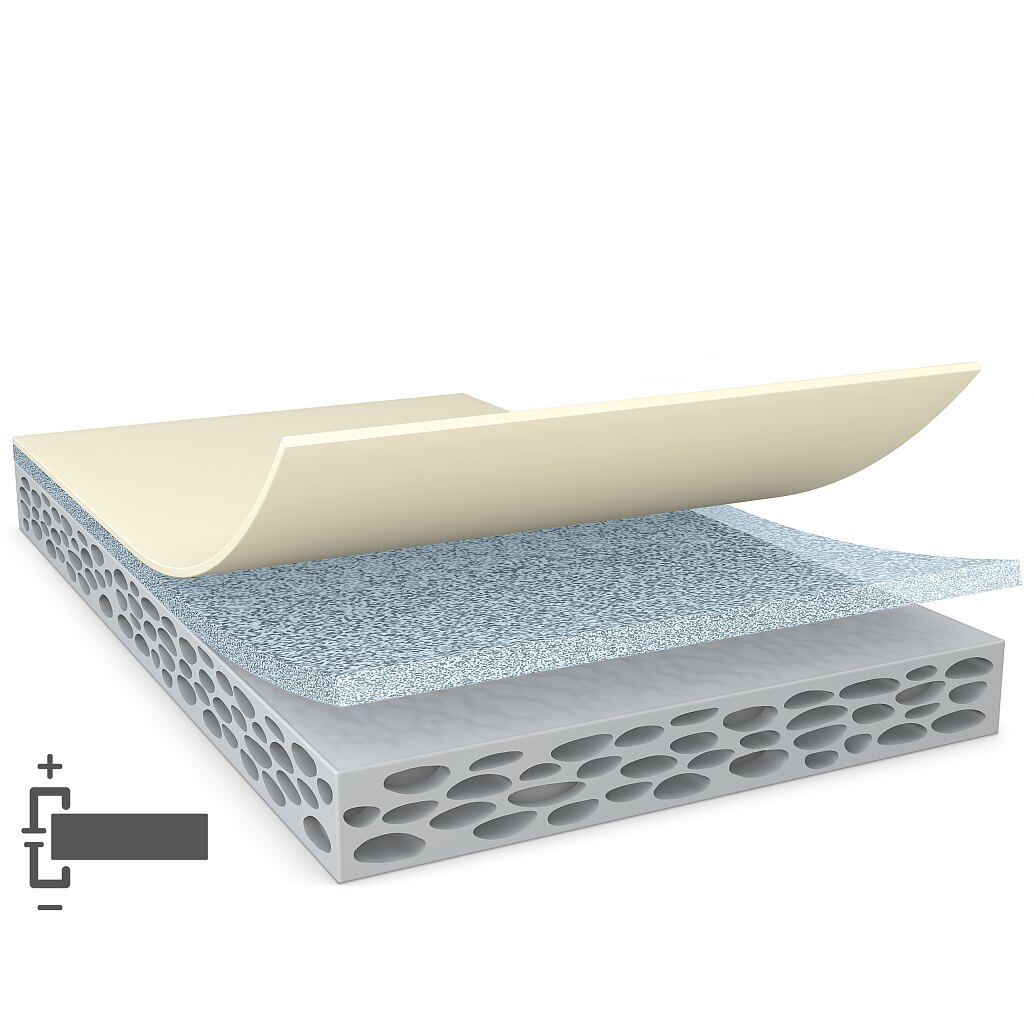

tesa® 60215 is a grey single sided electrically conductive self adhesive foam tape. It consists of a highly compressible electrically conductive foam backing and an electrically conductive adhesive.

tesa® 60215 features especially:

Thickness: 500 µm
Highly compressible foam backing with low closure force and reliable recovery properties
Excellent conformability to surface variations and tolerances
Excellent electrical conductivity over a wide working range in XYZ-direction even at high temperatures and humidity
High adhesion level even at harsh environmental conditions
Excellent shock absorbing and cushioning properties
High stability of the foam to avoid flaking of particles

Product details and specifications

Application Fields

EMI shielding and grounding applications
Electrostatic discharge applications

Backing material	conductive foam
Color	grey
Colour of liner	white/blue logo
Thickness of liner	120 µm
Total thickness	500 µm
Type of adhesive	conductive acrylic
Type of liner	PE-coated paper

Backing material	conductive foam
Color	grey
Colour of liner	white/blue logo
Thickness of liner	120 µm
Total thickness	500 µm
Type of adhesive	conductive acrylic
Type of liner	PE-coated paper

Contact resistance z-direction (initial)	0.03 Ohm / square inch
Temperature resistance short term	200 °C
Surface resistance x-y-direction	0.2 Ohm / square
Release of liner	easy

Contact resistance z-direction (initial)	0.03 Ohm / square inch
Temperature resistance short term	200 °C
Surface resistance x-y-direction	0.2 Ohm / square
Release of liner	easy

Adhesion to Steel (after 14 days)	8.3 N/cm

Adhesion to Steel (after 14 days)	8.3 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60215_en-SG 37.6 kB
