tesa® 60262

50µm double sided grey electrically conductive non-woven tape

Product description

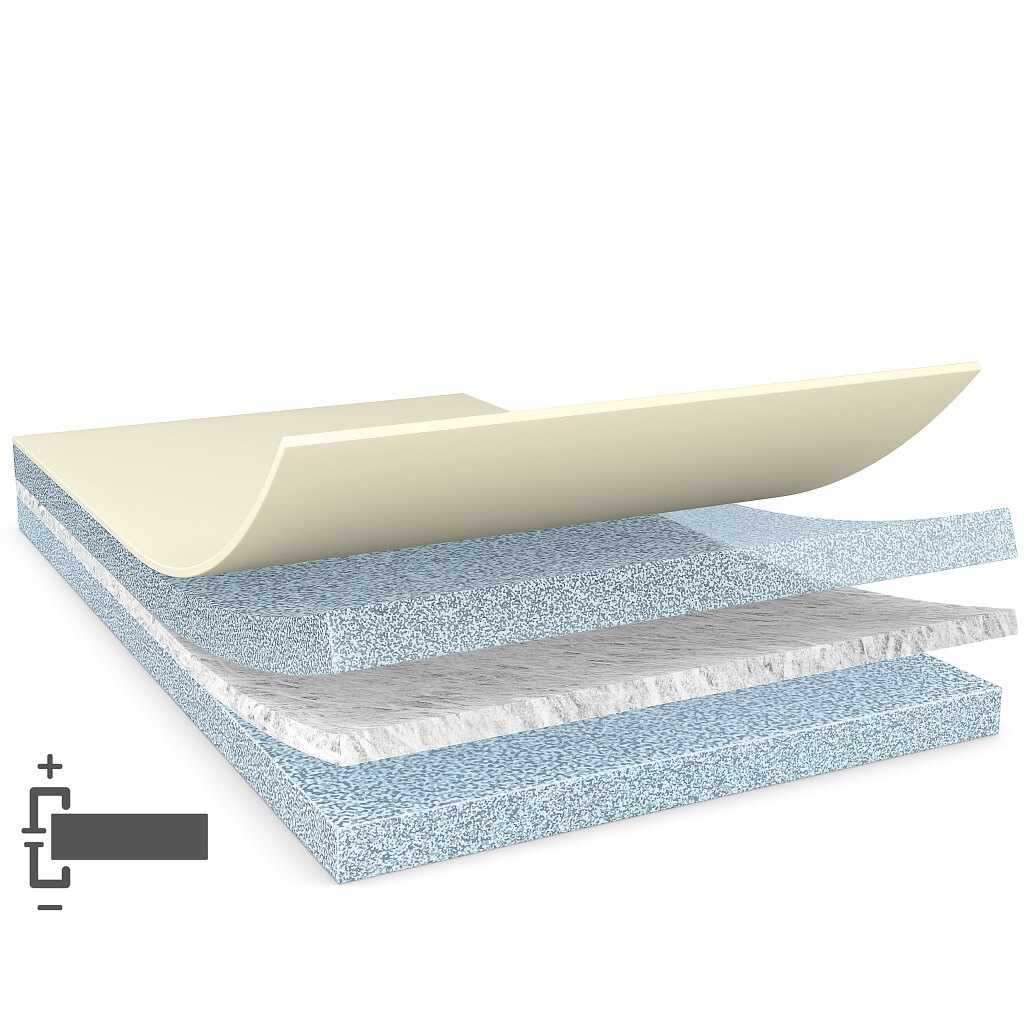

tesa® 60262 is a grey double sided electrically conductive self adhesive tape. It consists of an electrically conductive non-woven backing and an electrically conductive acrylic adhesive.

tesa® 60262 features especially:

Thickness: 50µm
Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
High adhesion level even at harsh environmental conditions
Excellent conformability and adjustment to uneven surfaces
Very good die-cuttability

Product details and specifications

Application Fields

EMC applications, such as grounding
Electrostatic discharge applications

Backing material	conductive non-woven
Color	grey
Colour of liner	white/blue logo
Thickness of liner	120 µm
Total thickness	50 µm
Type of adhesive	conductive acrylic
Type of liner	PE-coated paper

Backing material	conductive non-woven
Color	grey
Colour of liner	white/blue logo
Thickness of liner	120 µm
Total thickness	50 µm
Type of adhesive	conductive acrylic
Type of liner	PE-coated paper

Static shear resistance at 40°C	very good
Release of liner	easy
Contact resistance z-direction (initial)	0.02 Ohm / square inch
Surface resistance x-y-direction	0.2 Ohm / square
Temperature resistance short term	200 °C

Static shear resistance at 40°C	very good
Release of liner	easy
Contact resistance z-direction (initial)	0.02 Ohm / square inch
Surface resistance x-y-direction	0.2 Ohm / square
Temperature resistance short term	200 °C

Adhesion to Steel (after 14 days)	8.3 N/cm

Adhesion to Steel (after 14 days)	8.3 N/cm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 60262_en-SG 37.3 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Name of product	tesa® 60262	tesa® 60257	tesa® 60260	tesa® 60381	tesa® 60255	tesa® 60362	tesa® 60251	tesa® 60261	tesa® 60382	tesa® 60372	tesa® 60256	tesa® 60264
Total thickness	50 µm	250 µm	35 µm	50 µm	150 µm	50 µm	55 µm	25 µm	50 µm	50 µm	200 µm	17 µm
Type of adhesive	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic	conductive acrylic
Backing material	conductive non-woven	conductive woven	conductive non-woven	conductive woven	conductive woven	conductive woven	conductive woven	conductive non-woven	conductive non-woven	conductive non-woven	conductive woven	conductive non-woven
Adhesion to Steel (after 14 days)	8.3 N/cm	10.8 N/cm	4.2 N/cm	10 N/cm	10.5 N/cm	8 N/cm		5.6 N/cm	10 N/cm	5.6 N/cm	10.6 N/cm	4.5 N/cm
Surface resistance x-y-direction	0.2 Ohm / square	0.2 Ohm / square	0.2 Ohm / square	0.3 Ohm / square	0.2 Ohm / square		0.2 Ohm / square	0.2 Ohm / square	0.3 Ohm / square			0.2 Ohm / square
Contact resistance z-direction (initial)	0.02 Ohm / square inch	0.05 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.05 Ohm / square inch	0.01 Ohm / square inch	0.05 Ohm / square inch	0.02 Ohm / square inch	0.06 Ohm / square inch	0.01 Ohm / square inch	0.05 Ohm / square inch	0.02 Ohm / square inch
