tesa® 60251
55µm double sided grey electrically conductive removable woven tape
Product description

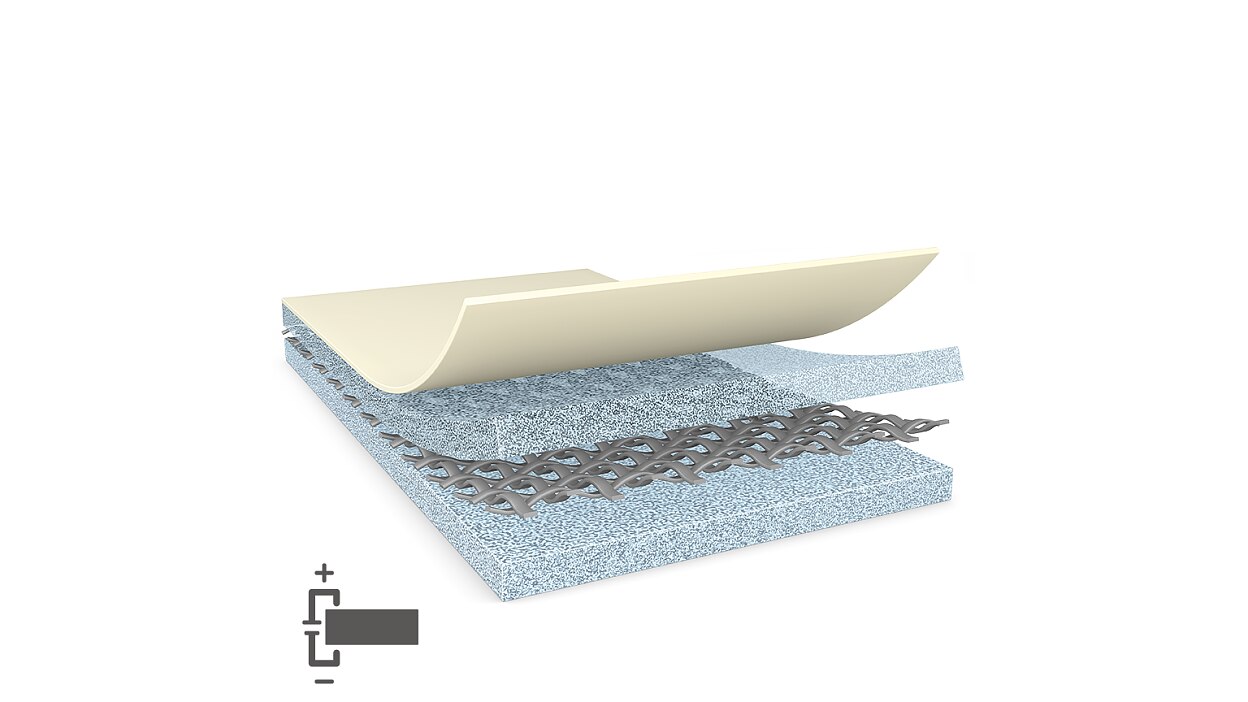

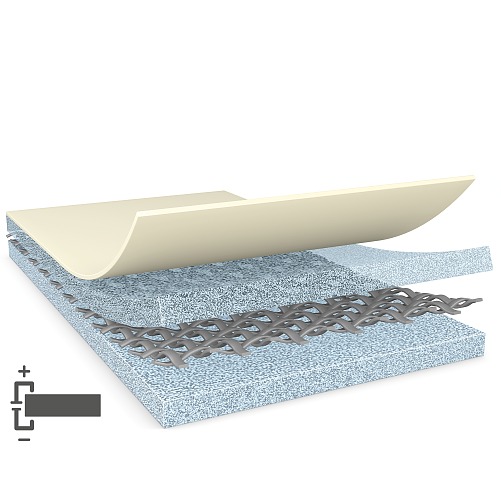

tesa® 60251 is a grey double sided electrically conductive self adhesive tape. It consists of an electrically conductive woven backing coated with an electrically conductive permanent adhesive on one side and a special electrically conductive removable adhesive on the other (open) side.
tesa® 60251 features especially:
- Thickness: 55µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- High adhesion level even at harsh environmental conditions
- Very good removability
Product details and specifications
Application Fields
- EMC applications, such as grounding
- Electrostatic discharge applications
Product Construction
| Backing material | conductive woven |
|---|---|
| Color | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 55 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
Product Construction
| Backing material | conductive woven |
|---|---|
| Color | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 55 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
Properties / Performance Values
| Release of liner | easy |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Temperature resistance short term | 180 °C |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Properties / Performance Values
| Release of liner | easy |
|---|---|
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Temperature resistance short term | 180 °C |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Adhesion to Values
| Adhesion to steel (after 14 days), removable side | 1.3 N/cm |
|---|---|
| Adhesion to Steel (initial), removable side | 0.5 N/cm |
| Adhesion to Steel (initial), permanent side | 4.6 N/cm |
| Adhesion to steel (after 14 days), permanent side | 7.6 N/cm |
Adhesion to Values
| Adhesion to steel (after 14 days), removable side | 1.3 N/cm |
|---|---|
| Adhesion to Steel (initial), removable side | 0.5 N/cm |
| Adhesion to Steel (initial), permanent side | 4.6 N/cm |
| Adhesion to steel (after 14 days), permanent side | 7.6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
