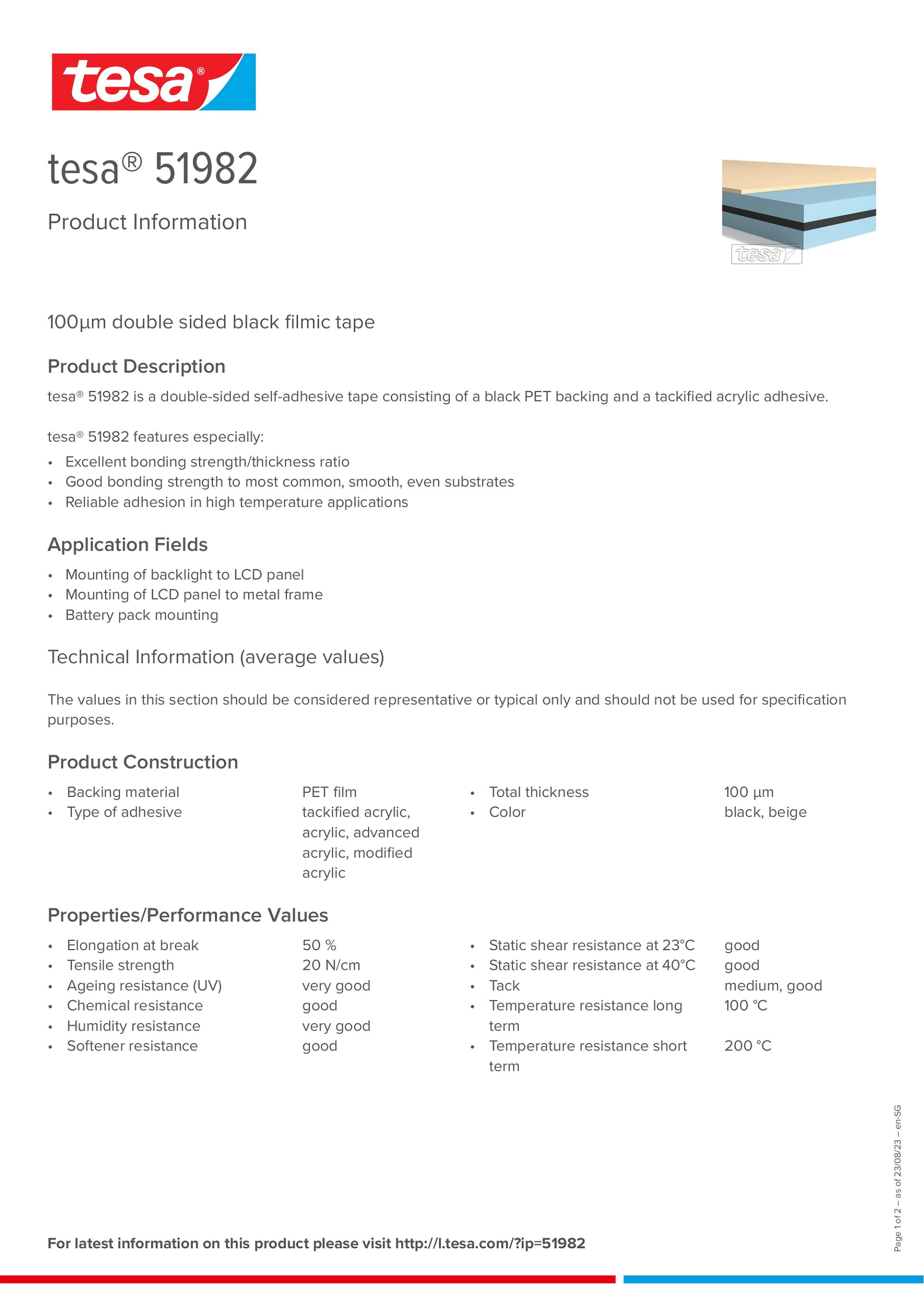

tesa® 51982

100µm double sided black filmic tape

Product description

tesa® 51982 is a double-sided self-adhesive tape consisting of a black PET backing and a tackified acrylic adhesive.

tesa® 51982 features especially:
  • Excellent bonding strength/thickness ratio
  • Good bonding strength to most common, smooth, even substrates
  • Reliable adhesion in high temperature applications

Application Fields

  • Mounting of backlight to LCD panel
  • Mounting of LCD panel to metal frame
  • Battery pack mounting

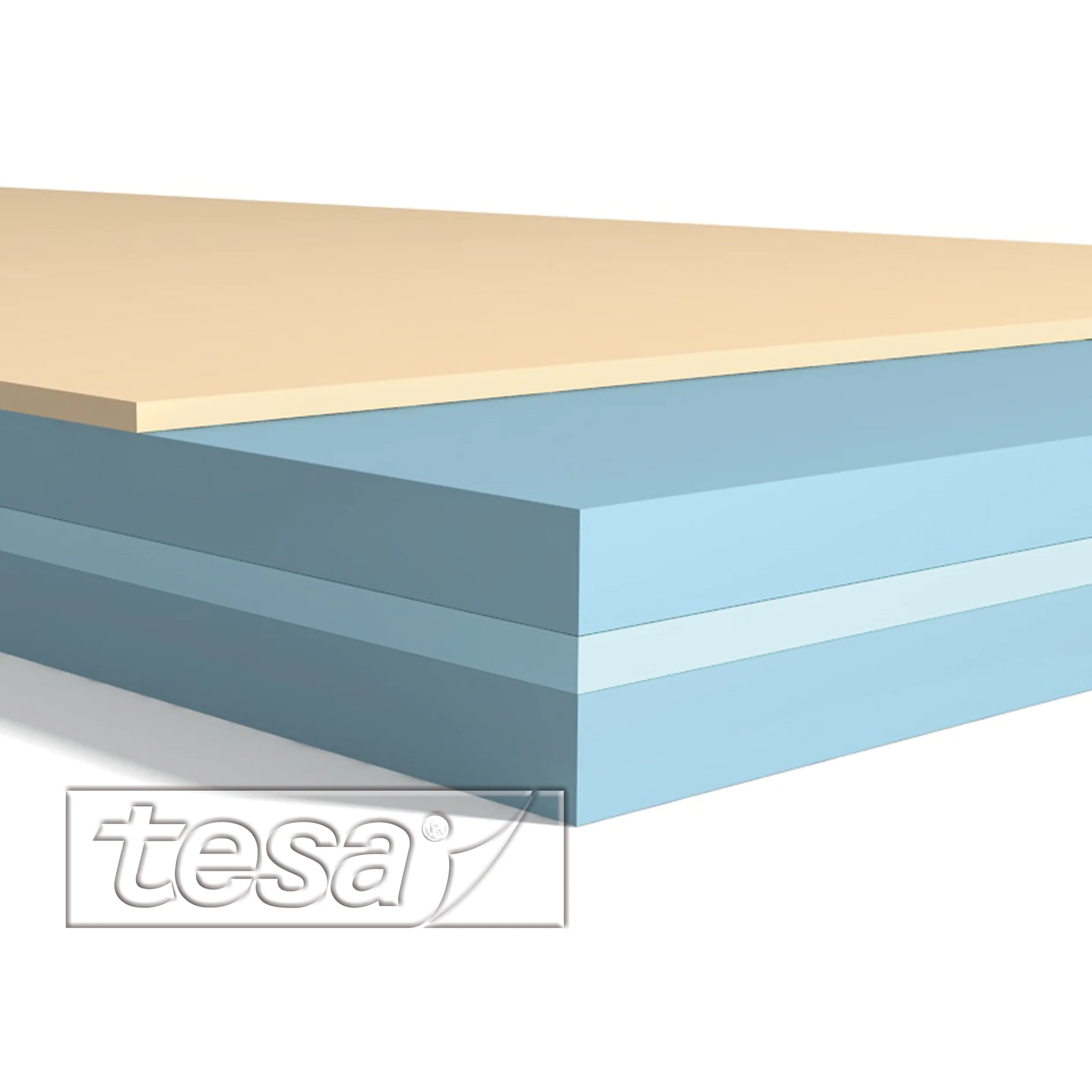

Product Construction

Backing material PET film
Color black, beige
Total thickness 100 µm
Type of adhesive tackified acrylic, acrylic, advanced acrylic, modified acrylic

Properties / Performance Values

Elongation at break 50 %
Tensile strength 20 N/cm
Ageing resistance (UV) very good
Chemical resistance good
Humidity resistance very good
Softener resistance good
Static shear resistance at 23°C good
Static shear resistance at 40°C good
Tack medium, good
Temperature resistance long term 100 °C
Temperature resistance short term 200 °C

Adhesion to Values

Adhesion to ABS (after 14 days) 9.6 N/cm
Adhesion to Aluminium (initial) 7.9 N/cm
Adhesion to Aluminium (after 14 days) 10.6 N/cm
Adhesion to PC (initial) 9.2 N/cm
Adhesion to PC (after 14 days) 11 N/cm
Adhesion to PE (initial) 4.6 N/cm
Adhesion to PE (after 14 days) 5.1 N/cm
Adhesion to PET (initial) 7 N/cm
Adhesion to PET (after 14 days) 8.4 N/cm
Adhesion to PP (initial) 4.4 N/cm
Adhesion to PP (after 14 days) 6.2 N/cm
Adhesion to PS (initial) 8.3 N/cm
Adhesion to PS (after 14 days) 9.2 N/cm
Adhesion to PVC (initial) 7 N/cm
Adhesion to PVC (after 14 days) 10 N/cm
Adhesion to Steel (initial) 11 N/cm
Adhesion to Steel (after 14 days) 11.7 N/cm
Adhesion to ABS (initial) 7.6 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
