tesa 51570 double sided non woven tape white transluscent 515700000200

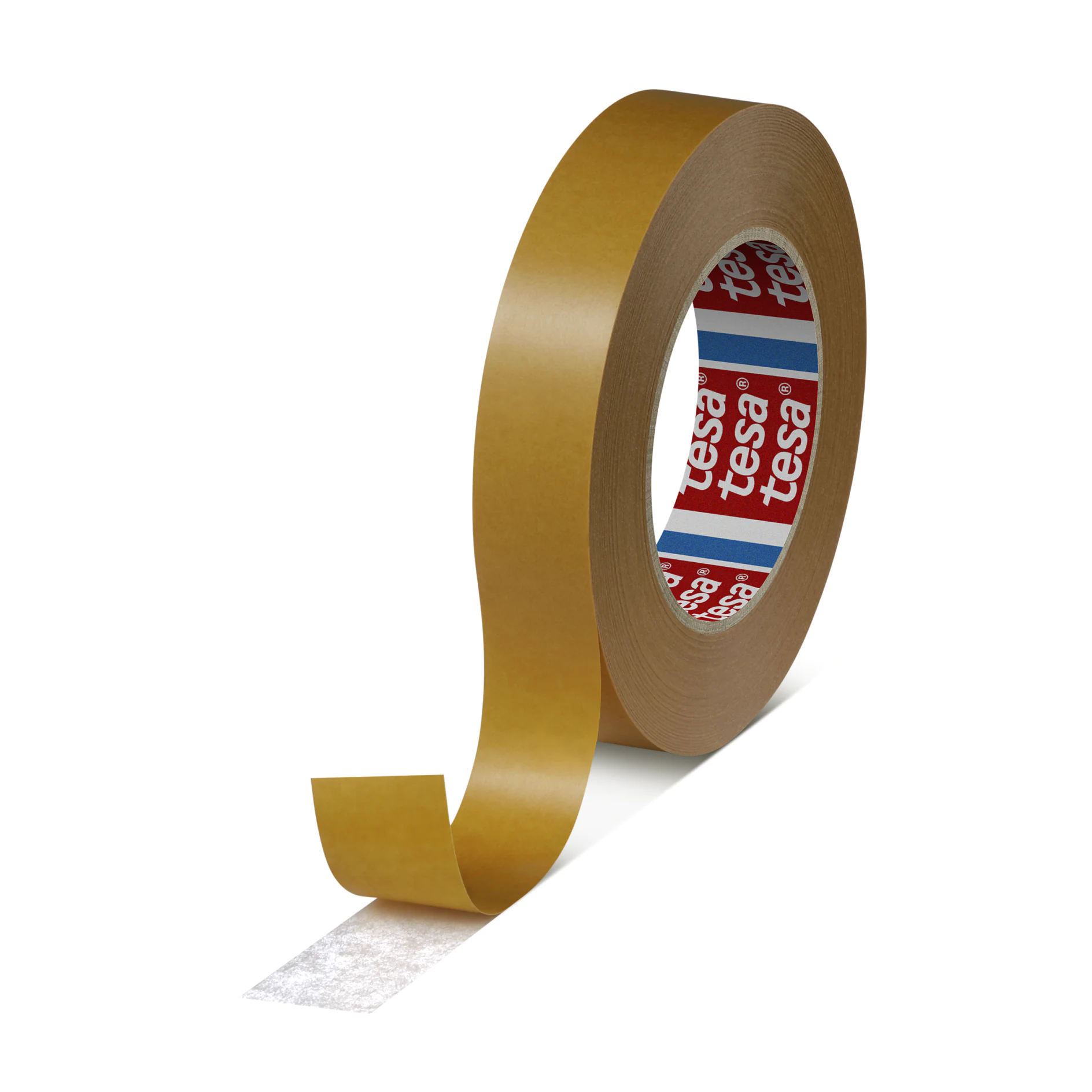

tesa® 51570

Double-sided non-woven tape

Product description

tesa® 51570 is a double-sided tape with a non-woven backing. It is used for permanent mounting of metal and plastic materials, e.g. aluminum, polystyrene, polypropylene, ABS. The thick layer of adhesive bonds well on uneven surfaces and has a very high initial bond.

Application Fields

General purpose mounting

Product Construction

Type of adhesive synthetic rubber
Total thickness 110 µm
Backing material non-woven

Properties / Performance Values

Static shear resistance at 23°C good
Chemical resistance low
Humidity resistance good
Tack very good
Ageing resistance (UV) medium
Static shear resistance at 40°C low
Fogging good
Temperature resistance long term 40 °C
Softener resistance low
Temperature resistance short term 80 °C

Adhesion to Values

Adhesion to Steel (initial) 12 N/cm
Adhesion to PE (initial) 5.5 N/cm
Adhesion to PP (after 14 days) 12 N/cm
Adhesion to PVC (initial) 9 N/cm
Adhesion to PE (after 14 days) 7 N/cm
Adhesion to PS (initial) 8 N/cm
Adhesion to PP (initial) 7 N/cm
Adhesion to Steel (after 14 days) 13 N/cm
Adhesion to PVC (after 14 days) 12.5 N/cm

Additional Info

It is not recommended to apply tesa® 51570 where a temperature load of over 60° C prevails for a longer period.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
