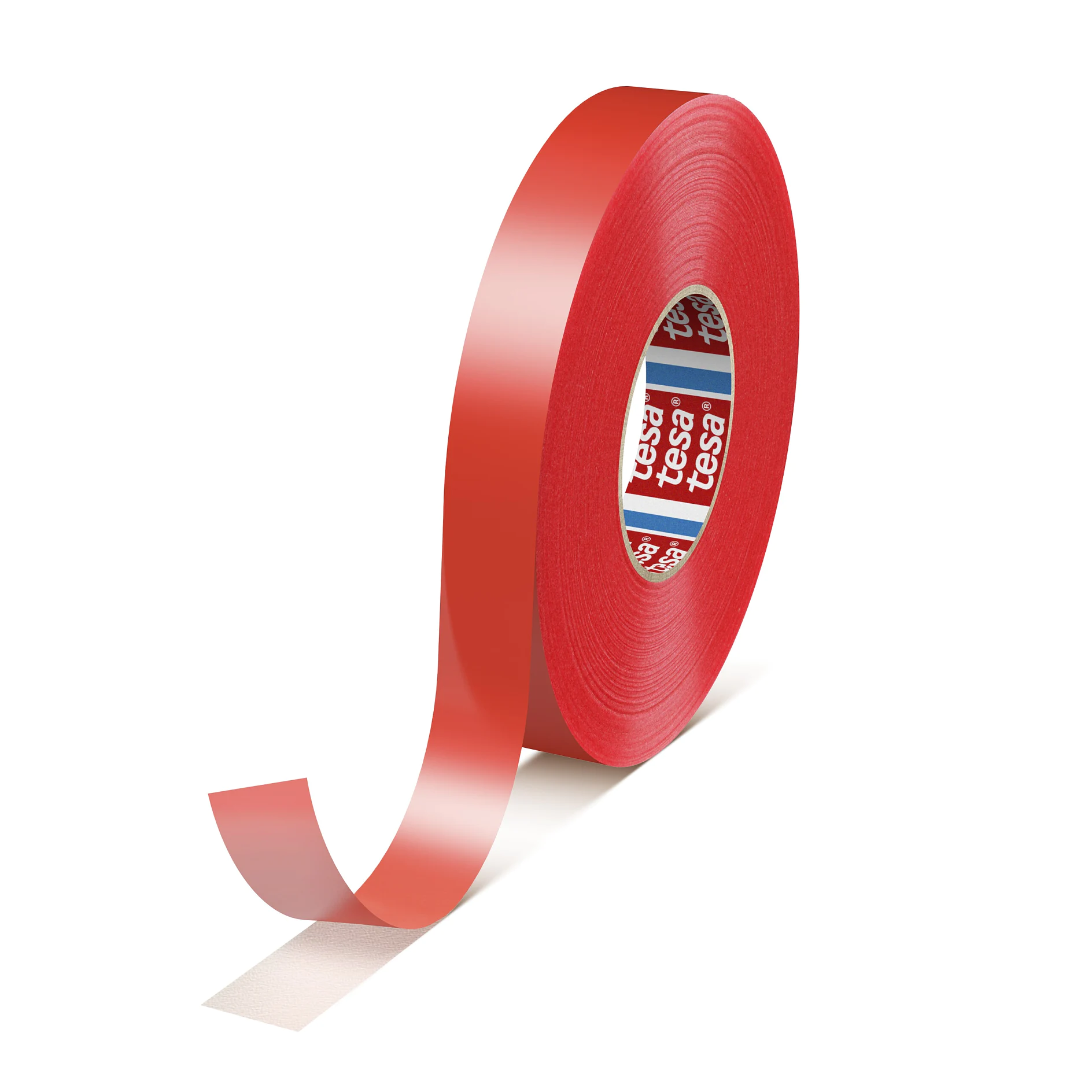

tesa® 51014
Product details and specifications
| Backing material | non-woven |
|---|---|
| Color | translucent |
| Colour of liner | red |
| Thickness of liner | 90 µm |
| Total thickness | 215 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PE |
| Weight of liner | 82 g/m² |
| Elongation at break | 3 % |
|---|---|
| Tensile strength | 8 N/cm |
| Temperature resistance long term | 80 °C |
| Temperature resistance short term | 200 °C |
| Temperature resistance min. | -40 °C |
| Adhesion to ABS (initial) | 6.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 7.6 N/cm |
| Adhesion to ABS (covered side, after 14 days) | 13.1 N/cm |
| Adhesion to ABS (covered side, initial) | 11.3 N/cm |
| Adhesion to Aluminium (initial) | 5.9 N/cm |
| Adhesion to Aluminium (after 14 days) | 6.3 N/cm |
| Adhesion to Alu (covered side, after 14 days) | 12.1 N/cm |
| Adhesion to Aluminium (covered side, initial) | 10.8 N/cm |
| Adhesion to PC (initial) | 6.8 N/cm |
| Adhesion to PC (after 14 days) | 12.9 N/cm |
| Adhesion to PC (covered side, after 14 days) | 16 N/cm |
| Adhesion to PC (covered side, initial) | 12.8 N/cm |
| Adhesion to PE (initial) | 5.2 N/cm |
| Adhesion to PE (after 14 days) | 5.6 N/cm |
| Adhesion to PE (covered side, initial) | 7.5 N/cm |
| Adhesion to PE (covered side, after 14 days) | 8.6 N/cm |
| Adhesion to PET (initial) | 5.5 N/cm |
| Adhesion to PET (after 14 days) | 5.9 N/cm |
| Adhesion to PET (covered side, initial) | 10 N/cm |
| Adhesion to PET (covered side, after 14 days) | 11.8 N/cm |
| Adhesion to PP (initial) | 5.2 N/cm |
| Adhesion to PP (after 14 days) | 5.8 N/cm |
| Adhesion to PP (covered side, after 14 days) | 13.3 N/cm |
| Adhesion to PP (covered side, initial) | 10.6 N/cm |
| Adhesion to PS (initial) | 6.6 N/cm |
| Adhesion to PS (after 14 days) | 7.5 N/cm |
| Adhesion to PS (covered side, after 14 days) | 12.9 N/cm |
| Adhesion to PS (covered side, initial) | 12.1 N/cm |
| Adhesion to PVC (initial) | 5.9 N/cm |
| Adhesion to PVC (after 14 days) | 9.5 N/cm |
| Adhesion to PVC (covered side, initial) | 8.8 N/cm |
| Adhesion to PVC (covered side, after 14 days) | 13.8 N/cm |
| Adhesion to Steel (initial) | 7.3 N/cm |
| Adhesion to Steel (after 14 days) | 8.6 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 12.9 N/cm |
| Adhesion to Steel (covered side, initial) | 11.7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
