Additional Info
Standard dimensions:
50 m x 15 mm
50 m x 30 mm
100m x 1000mm
50 m x 15 mm
50 m x 30 mm
100m x 1000mm

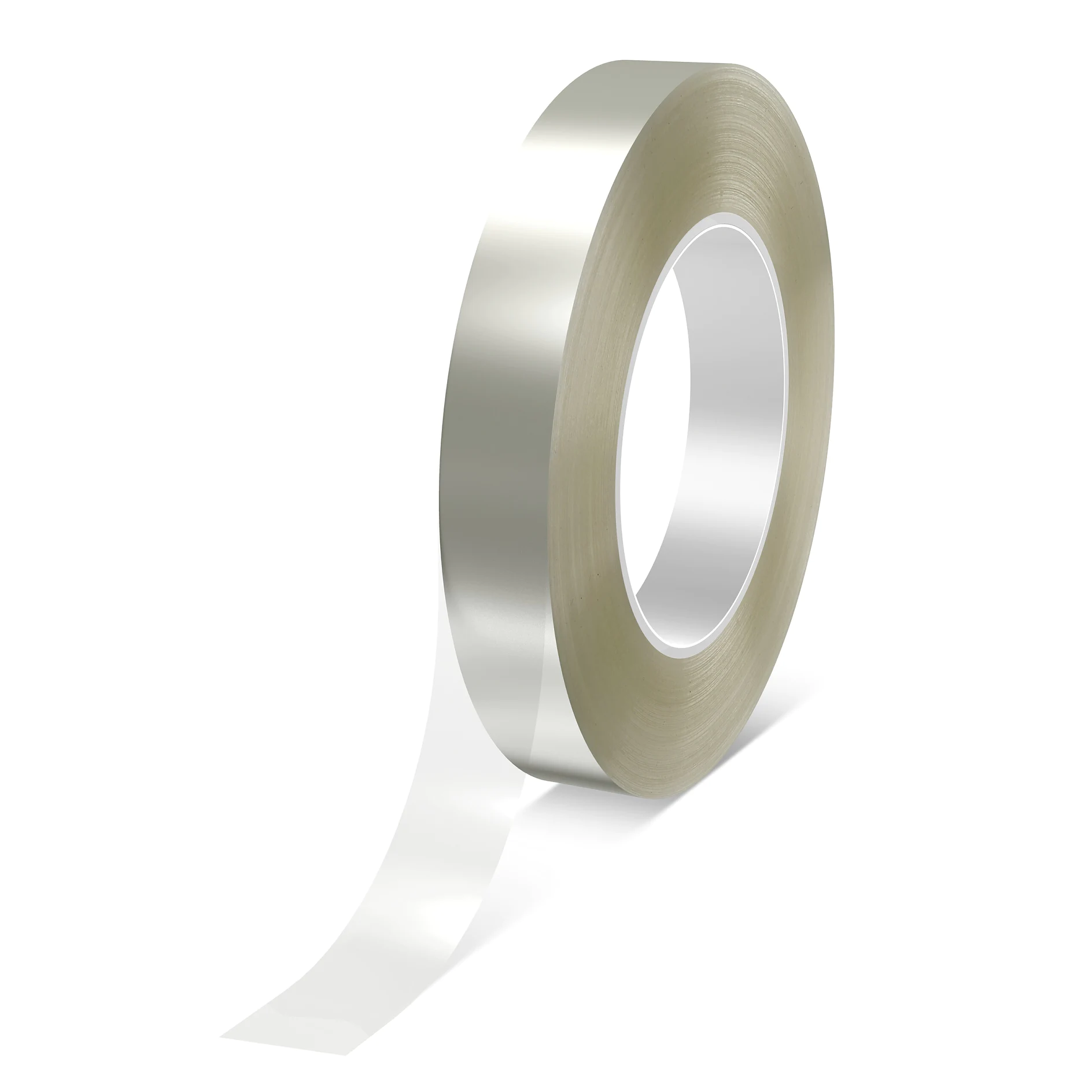

tesa® 50999
Heat Tabbing Film
Product Features
- tesa® Heat Tabbing Film can be securely attached to silicone free liner.
Product description
tesa® 50999 is a co-extrusion PE/PET translucent heat weldable film, which ensures extremely high liner pick-up rates. These heat tabs are formed by using the right parameters of heat, pressure and time.
Recommended parameter set: 155°C stamp temperature at 1 bar for 1.5 seconds.
Product details and specifications
Product Features
- tesa® Heat Tabbing Film can be securely attached to silicone free liner.
Application Fields
- Fast and reliable liner removal in production
- Automatic process applied by robots
Product Construction
| Backing material | multilayer film |
|---|---|
| Color | translucent |
| Total thickness | 150 µm |
| Type of adhesive | none |
| Type of liner | none |
Product Construction
| Backing material | multilayer film |
|---|---|
| Color | translucent |
| Total thickness | 150 µm |
| Type of adhesive | none |
| Type of liner | none |
Properties / Performance Values
| Elongation at break | 75 % |
|---|---|
| Tensile strength | 40 N/cm |
Properties / Performance Values
| Elongation at break | 75 % |
|---|---|
| Tensile strength | 40 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
