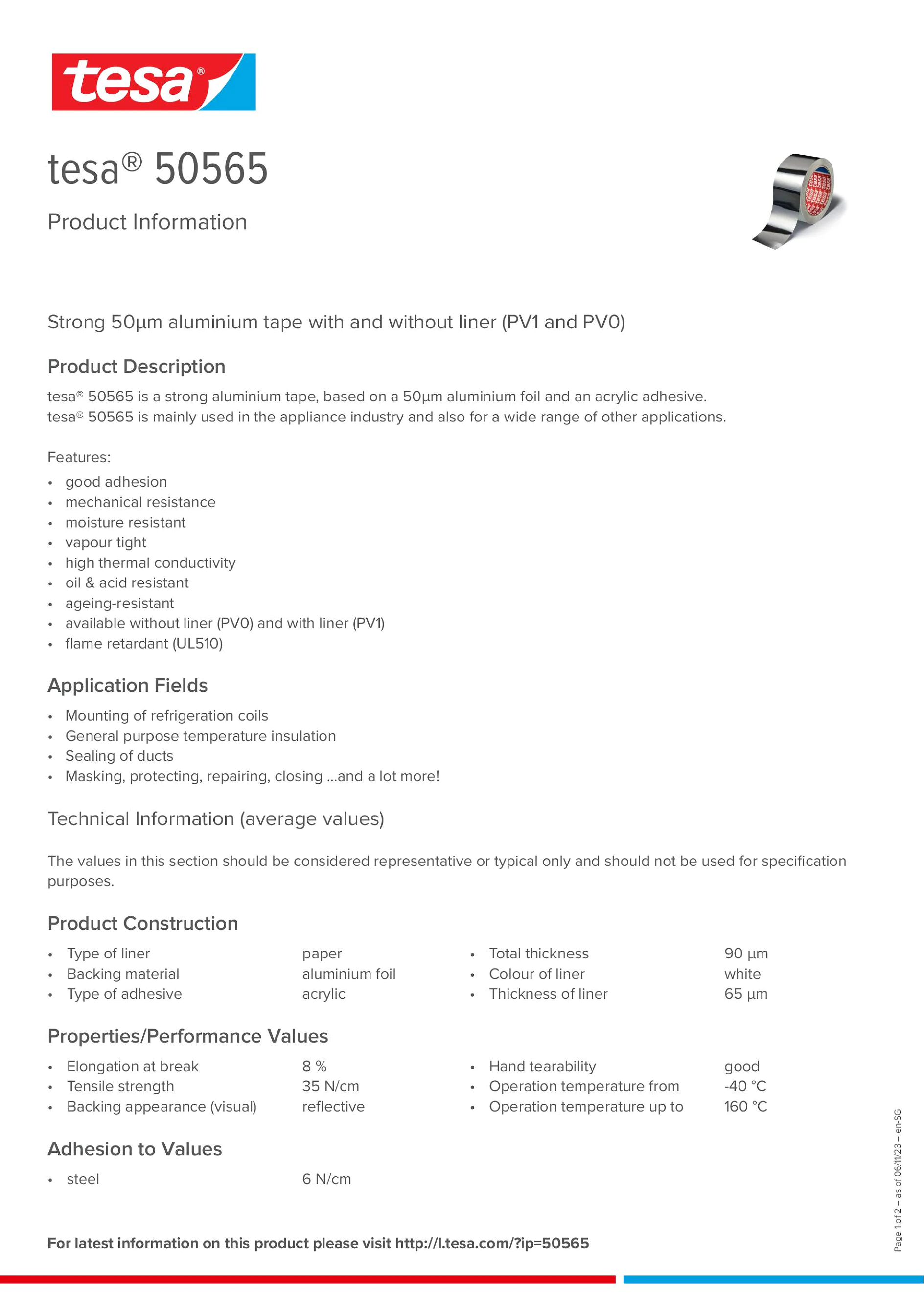

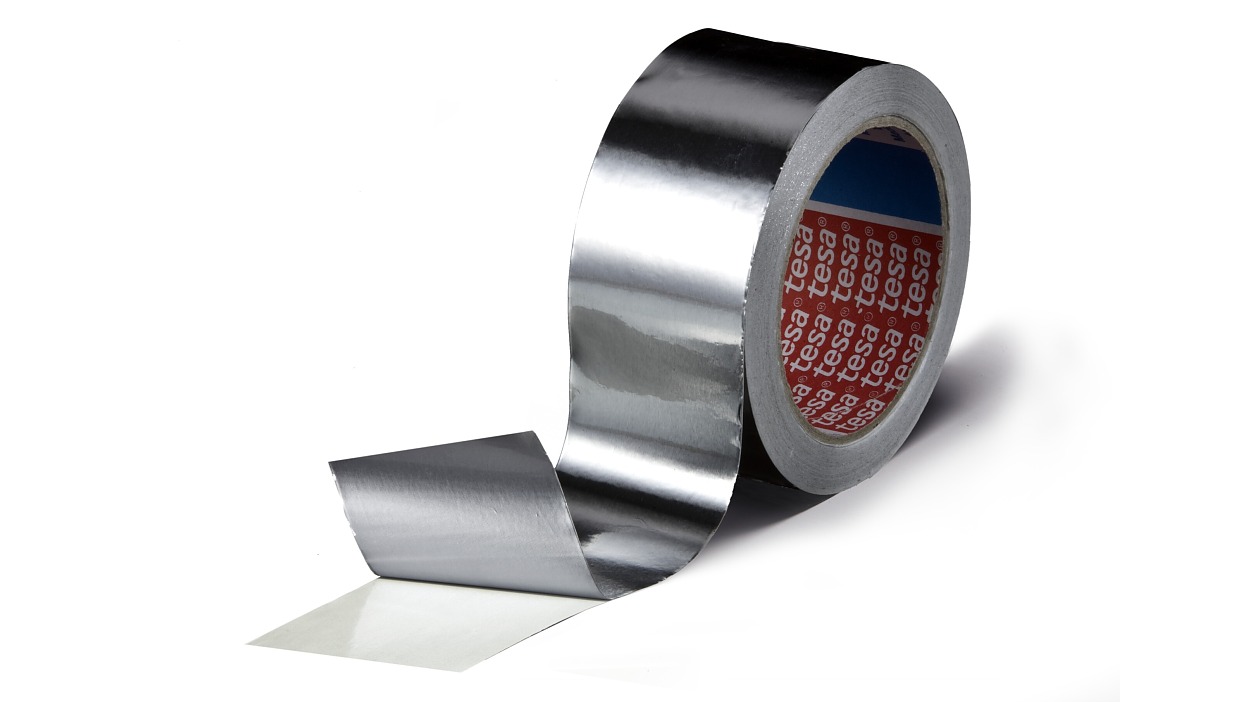

tesa® 50565

Strong 50µm aluminium tape with and without liner (PV1 and PV0)

Product description

tesa® 50565 is a strong aluminium tape, based on a 50µm aluminium foil and an acrylic adhesive.
tesa® 50565 is mainly used in the appliance industry and also for a wide range of other applications.

  • good adhesion
  • mechanical resistance
  • moisture resistant
  • vapour tight
  • high thermal conductivity
  • oil & acid resistant
  • ageing-resistant
  • available without liner (PV0) and with liner (PV1)
  • flame retardant (UL510)

Application Fields

  • Mounting of refrigeration coils
  • General purpose temperature insulation
  • Sealing of ducts
  • Masking, protecting, repairing, closing ...and a lot more!

Product Construction

Backing material aluminium foil
Colour of liner white
Thickness of liner 65 µm
Thickness of tape
Total thickness 90 µm
Type of adhesive acrylic
Type of liner paper

Properties / Performance Values

Abrasion resistance good
Elongation at break 8 %
Tensile strength 35 N/cm
Backing appearance (visual) reflective
Hand tearability good
Operation temperature from -40 °C
Operation temperature up to 160 °C
Temperature resistance min. -40 °C
Water resistance very good
Suitable for die cutting yes

Adhesion to Values

Adhesion to steel 6 N/cm


tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
