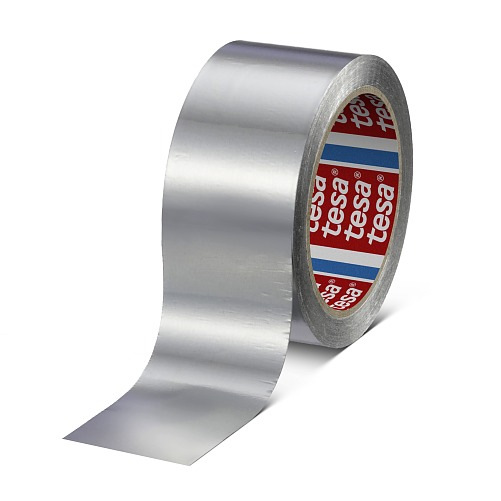

tesa® 60630
30µm conformable aluminum foil tape
Product description
tesa® 60630 is a conformable aluminum tape based on a 30 µm (1.2 mil) aluminum foil, a transparent acrylic adhesive.
Features:
- Conformable to curved surfaces
- Easy to unwind
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light reflective
- Flame retardant according to DIN 4102, class B1
- Flame retardant according to the requirements in UL 510A
Product details and specifications
Application Fields
- Mounting of refrigerator coils in appliance industry
- Joining and sealing of thermal insulation and ducts
- To make substrates electrically and thermally conductive
- To reflect heat radiation
Product Construction
| Backing material | aluminium foil |
|---|---|
| Total thickness | 65 µm |
| Type of adhesive | acrylic |
| Type of liner | none |
Product Construction
| Backing material | aluminium foil |
|---|---|
| Total thickness | 65 µm |
| Type of adhesive | acrylic |
| Type of liner | none |
Properties / Performance Values
| Elongation at break | 3 % |
|---|---|
| Tensile strength | 25 N/cm |
| Water resistance | very good |
| Backing appearance (visual) | reflective |
| Operation temperature from | -40 °C |
| Hand tearability | very good |
| Easy to remove | no |
| Suitable for die cutting | no |
| Operation temperature up to | 160 °C |
| Abrasion resistance | good |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 3 % |
|---|---|
| Tensile strength | 25 N/cm |
| Water resistance | very good |
| Backing appearance (visual) | reflective |
| Operation temperature from | -40 °C |
| Hand tearability | very good |
| Easy to remove | no |
| Suitable for die cutting | no |
| Operation temperature up to | 160 °C |
| Abrasion resistance | good |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to Backing | 0.1 N/cm |
|---|---|
| Adhesion to Glass (initial) | 7 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to steel | 8 N/cm |
Adhesion to Values
| Adhesion to Backing | 0.1 N/cm |
|---|---|
| Adhesion to Glass (initial) | 7 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PVC (initial) | 5.5 N/cm |
| Adhesion to steel | 8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
