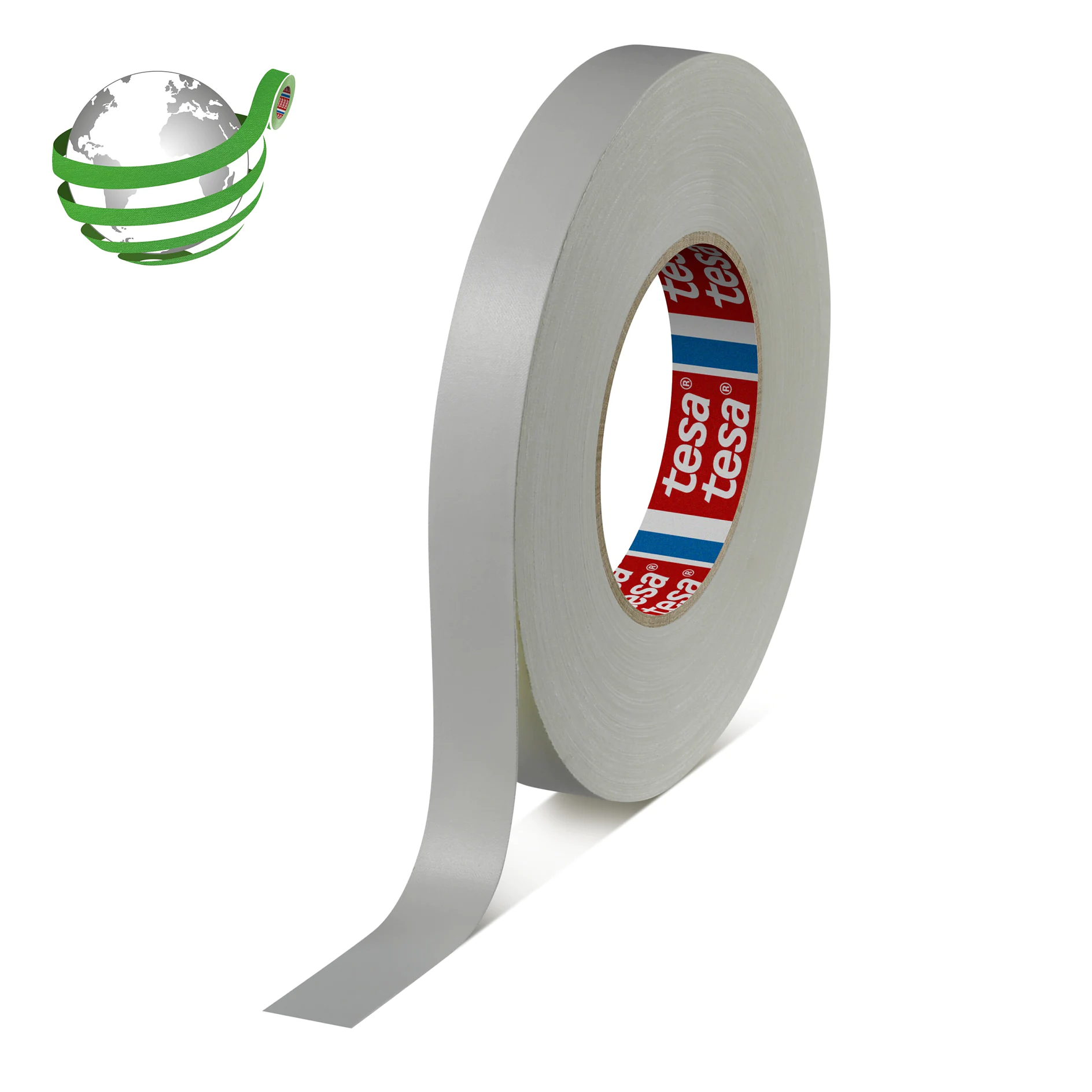

tesa® 4688
Standard polyethylene coated cloth tape
Product description
tesa® 4688 is a standard grade polyethylene coated cloth tape. It is based on a 55 mesh woven PET/rayon fabric backing coated with a pressure sensitive natural rubber adhesive.
tesa® 4688 is a typical repairing tape, convenient for a variety of needs with very good handling characteristics.
Features:
- strong adhesion, even on rough surfaces
- waterproof
- easy to unwind
- tesa® 4688 is certified by AREVA according to requirements of the Siemens AG standard TLV 9027/01/06 for nuclear power station: total halogen content < 1000 ppm; total sulphur content < 1000 ppm
- available in 8 colours: black, white, grey, yellow, blue, red, green, brown
Product details and specifications
Application Fields
- Marking, masking, packaging, protecting, fastening, closing
- Bonding of construction films
- Closing of cartons, tins, etc.
- Fixing of wires
- Bundling of cables
- Splicing of films, marking of parts during maintenance in nuclear power plants
Product Construction
| Backing material | PE extruded cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | natural rubber |
| Type of liner | none |
Product Construction
| Backing material | PE extruded cloth |
|---|---|
| Total thickness | 260 µm |
| Type of adhesive | natural rubber |
| Type of liner | none |
Properties / Performance Values
| Elongation at break | 9 % |
|---|---|
| Tensile strength | 52 N/cm |
| Dielectric breakdown voltage | 2,900 V |
| Water resistance | good |
| Abrasion resistance | good |
| Straight tear edges | good |
| Temperature resistance (30 min) | 110 °C |
| Hand tearability | good |
| Temperature resistance (removability from aluminum after 30 min exposure) | 110 °C |
| Mesh | 55 threads/inch² |
Properties / Performance Values
| Elongation at break | 9 % |
|---|---|
| Tensile strength | 52 N/cm |
| Dielectric breakdown voltage | 2,900 V |
| Water resistance | good |
| Abrasion resistance | good |
| Straight tear edges | good |
| Temperature resistance (30 min) | 110 °C |
| Hand tearability | good |
| Temperature resistance (removability from aluminum after 30 min exposure) | 110 °C |
| Mesh | 55 threads/inch² |
Adhesion to Values
| Adhesion to steel | 4.5 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 4.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
