tesa® Softprint 53418 FE

Plate mounting tape for photopolymer plates in flexographic printing

Product description

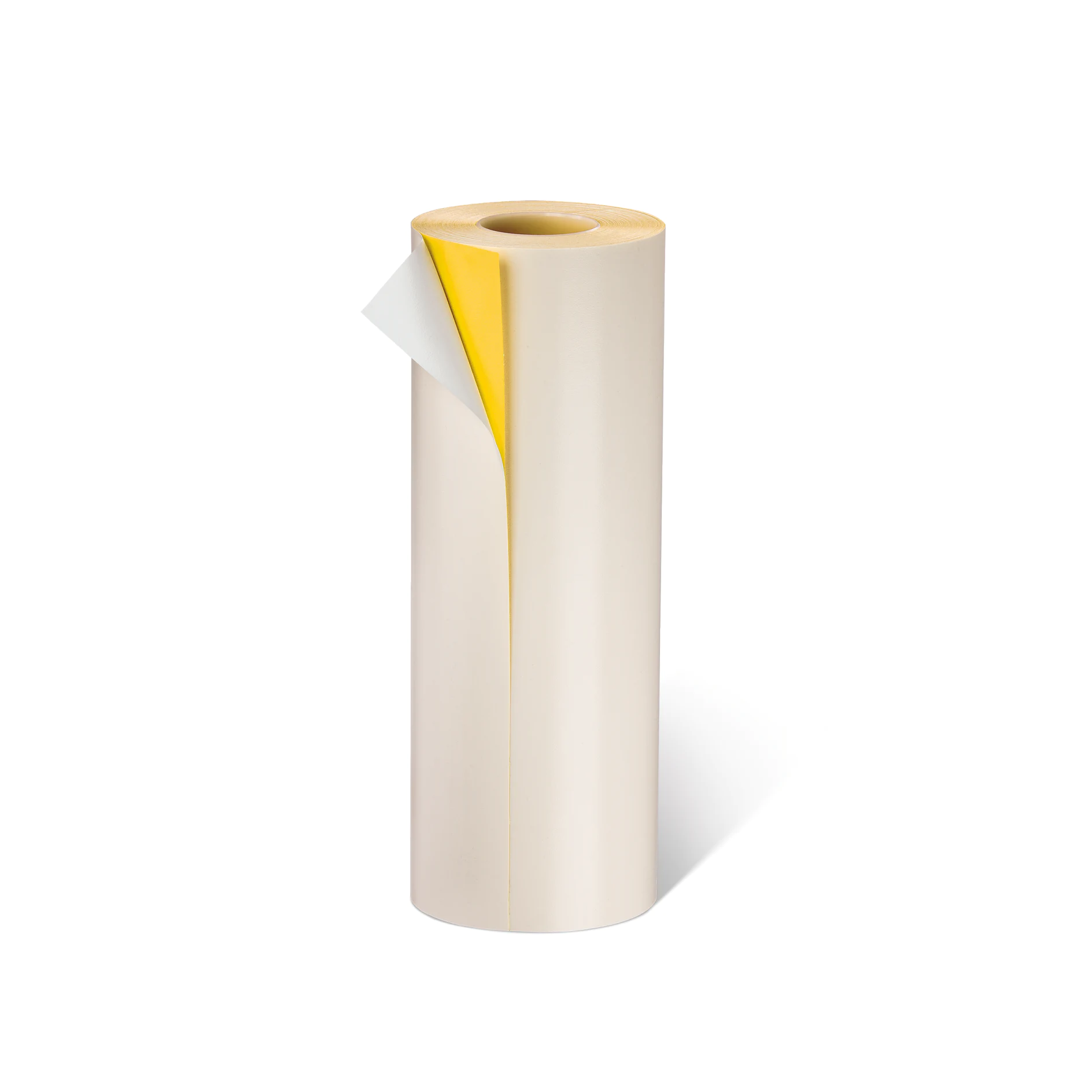

Double-sided foam tape
The x-soft foam makes this the ideal solution for printing fine screens.
Foam Properties
  • Low thickness tolerance
  • Long lasting, constant recovery characteristics

Adhesive Properties
  • Low tack surface characteristics
  • Secure plate bonding with excellent resistance to edge lifting
  • Excellent tape bonding towards cylinder/sleeve side
  • Solvent resistance

Additional Properties
  • Compensating product design for demanding sleeve/cylinder surfaces.
  • Structured PP liner
  • Color indicates foam hardness

Application Fields

Mounting of 1.14 mm (0.45‘‘) and 1.70 mm (0.067‘‘) flexographic printing plates onto steel / aluminum / PU cylinders and sleeves.

Product Construction

Type of adhesive tackified acrylic
Type of liner PP
Total thickness 430 µm
Backing material PE foam with film lamination
Color yellow

Properties / Performance Values

Hardness extra soft
Thickness category 380
Color of logo yellow
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
