tesa® Sleeve 68000 PV17

Aluminium laminated glass cloth sleeve for radiant heat reflection and enhanced flexibility in the engine compartment

Product Features

Flexible and smooth
Temperature Resistance 200°C / 240h (according to SAE J2192) 232°C / 168h (according to ISO 188 Method B)
Thermal Effectiveness (according to SAE J2302) -55°C at 350°C heat source temperature -83°C at 450°C heat source temperature -110°C at 550°C heat source temperature

All product features

Product description

tesa® Sleeve 68000 PV17 is an aluminum laminated glass cloth with an acrylic adhesive and a thin PET fleece layer, designed for automotive engine compartments. Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides excellent radiant heat shielding as well as enhanced durability at high temperature.

The tesa® Sleeve product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility. Customized length-specific kiss cutting is available on request. tesa® Sleeve 68000 PV17 is specifically designed for efficient lengthwise manual application.

Color: silver. Liner: silicone

Product details and specifications

Product Features

Flexible and smooth
Temperature Resistance 200°C / 240h (according to SAE J2192) 232°C / 168h (according to ISO 188 Method B)
Thermal Effectiveness (according to SAE J2302) -55°C at 350°C heat source temperature -83°C at 450°C heat source temperature -110°C at 550°C heat source temperature
Self extinguishing
High flexibility
Ageing-resistant
Resistant to environmental influences
High temperature resistance
Superior radiant heat reflection

Application Fields

tesa® Sleeve 68000 PV17 has been developed for:

Applications within the wire harness segment.
Bundling and wire protection in areas with increased demands for radiant heat protection.
Shielding against radiant heat sources in the automotive engine compartment.

Backing material	aluminium laminated glasscloth
Total thickness	450 µm
Type of adhesive	acrylic

Backing material	aluminium laminated glasscloth
Total thickness	450 µm
Type of adhesive	acrylic

Elongation at break	4 %
Tensile strength	270 N/cm
Noise damping (LV312)	Class C

Elongation at break	4 %
Tensile strength	270 N/cm
Noise damping (LV312)	Class C

Adhesion to steel	6 N/cm

Adhesion to steel	6 N/cm

Adhesion to steel: Backing breaks at forces greater than 6 N/cm

Standard widths: 50, 68, 80, 100, 130, 160 mm
Standard length: 50 m
Most combinations of width and length are possible
Kiss-cut available on request

Harness diameter / tesa® Sleeve width recommendation

Ø 8 mm - 10 mm / 50 mm
Ø 10 mm - 15 mm / 68 mm
Ø 16 mm - 19 mm / 80 mm
Ø 20 mm - 25 mm / 100 mm
Ø 26 mm - 35 mm / 130 mm
Ø 36 mm - 43 mm / 160 mm

¹ Smaller harness diameters need to be tested individuallyStandard core diameter: 76 mm

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® Sleeve 68000_en-SG 51.8 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

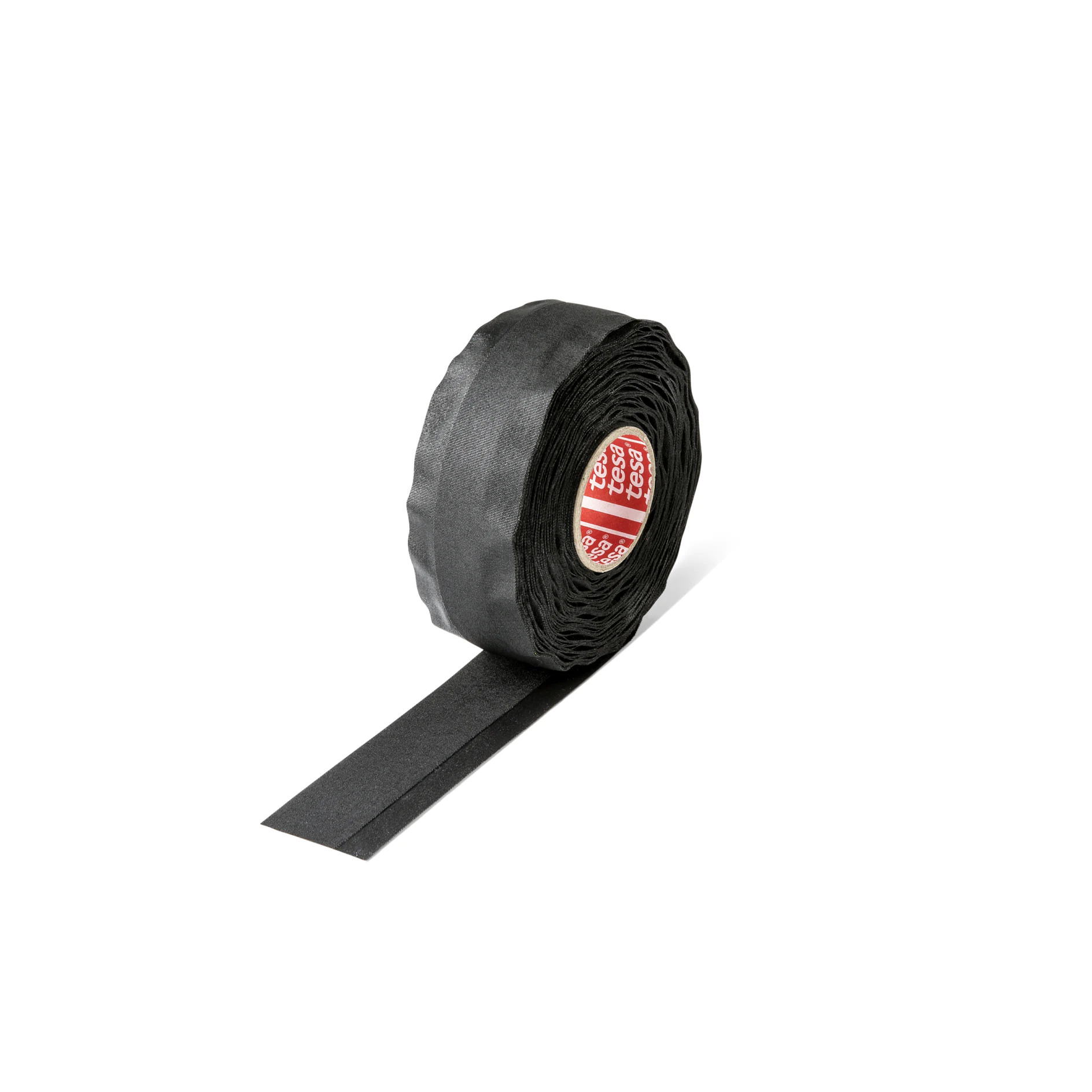

Name of product	tesa® Sleeve 68000 PV17	tesa® 54678	tesa® 4549	tesa® Spiralsleeve 51026 PV5	tesa® 4687	tesa® 54657 Low VOC	tesa® Sleeve 51026 PV9	tesa® 68000 PV1	tesa® 51036 PV2	tesa® 51036 PV7	tesa® 51037	tesa® 51006
