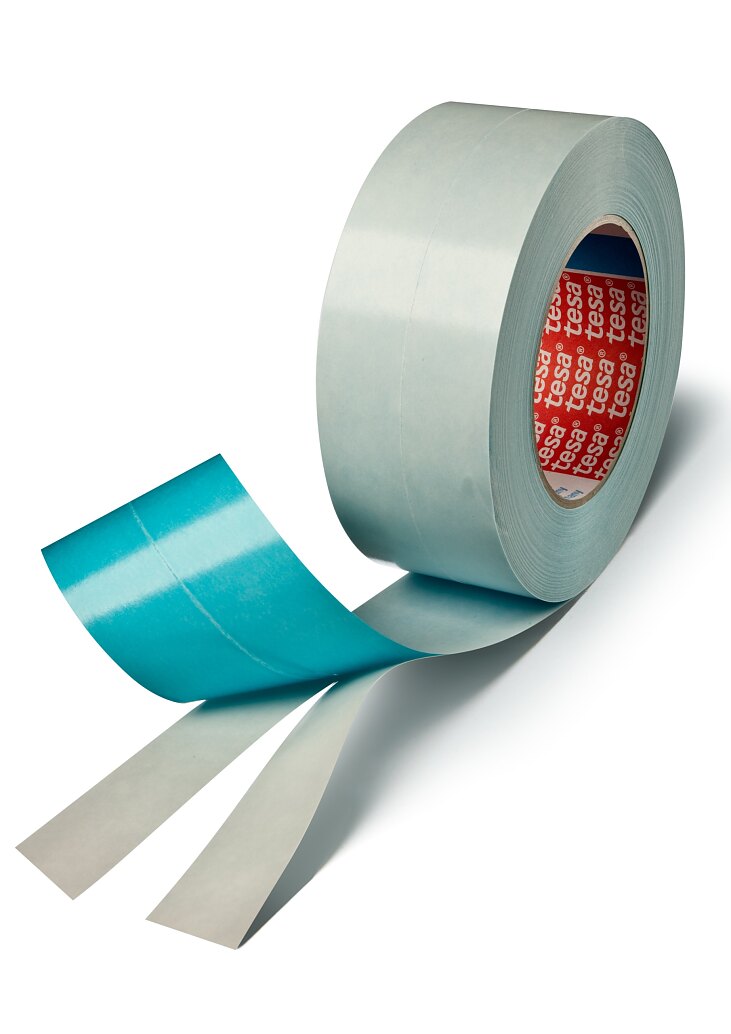

tesa® CaRes 51455 PV11

Repulpable, single-sided splicing tape

Product description

Product Description

tesa CaRes® 51455 is a single-sided repulpable splicing tape, with a liner consisting of a flat-back paper and a modified water soluble acrylic adhesive.

tesa CaRes® 51455 special features:

The patented calcium resistant adhesive (CaRes) for a maximised life time of permanent splices on papers containing calcium carbonate (CaCO3)
slit liner for easier manual splice application
Thin but strong backing to allow a low total splice thickness
Printable and coatable backing for easy further processing

Very high shear strength
Very high heat resistance
Very good adhesion values on most paper grades

tesa CaRes® 51455 is certified by independent laboratories for:

Repulpability according to TAPPI UM-213 over full pH-range (pH3 – pH9)

Product details and specifications

Application Fields

tesa CaRes® 51455 is particularly suitable for:

Manual permanent butt-splicing

Backing material	flat paper
Color	blue
Total thickness	80 µm
Type of adhesive	repulpable tackified acrylic
Type of liner	repulpable siliconised paper

Backing material	flat paper
Color	blue
Total thickness	80 µm
Type of adhesive	repulpable tackified acrylic
Type of liner	repulpable siliconised paper

Elongation at break	6 %
Shelf life time (packed) < 25°C	12 months
Tensile strength (crosswise)	30 N/cm
Tack	medium
Static shear resistance	very good

Elongation at break	6 %
Shelf life time (packed) < 25°C	12 months
Tensile strength (crosswise)	30 N/cm
Tack	medium
Static shear resistance	very good

Other products for butt-splicing:

tesa® 51444 - reduced thickness for thinner splices
tesa® 51445 - stronger backing for higher splice security
tesa® 51465 - slit liner and splitting strip for secure tape fixation during the manual splice preparation
tesa® 61445 - black backing for optical detection

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 51455_en-SG 62.7 kB

Contact us

Thank you for your message

We'll get back to you as soon as possible.

Best regards

Your tesa Team

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® CaRes 51455 PV11	tesa® CaRes 51913 PV11	tesa® 51914	tesa® CaRes 51445 PV11	tesa® 51191	tesa® 61914	tesa® 51917	tesa® CaRes 51444 PV11	tesa® 4441	tesa® 51915	tesa® 7009
Total thickness	80 µm	65 µm	90 µm	80 µm	130 µm	75 µm	115 µm	50 µm	140 µm	50 µm	285 µm
Type of adhesive	repulpable tackified acrylic	repulpable tackified acrylic	repulpable tackified acrylic	repulpable tackified acrylic	modified acrylic	modified acrylic	repulpable tackified acrylic	repulpable tackified acrylic	repulpable tackified acrylic	repulpable tackified acrylic	tackified acrylic
Backing material	flat paper	non-woven	non-woven	flat paper	Splittable paper	non-woven	non-woven	flat paper	slightly-creped paper	none	non-woven
Type of liner	repulpable siliconised paper	repulpable siliconised paper	repulpable siliconised paper	repulpable siliconised paper	PET film	bi-siliconised paper	repulpable siliconised paper	repulpable siliconised paper	none	repulpable siliconised paper
Type of liner	type: repulpable siliconised paper	type: repulpable siliconised paper	type: repulpable siliconised paper	type: repulpable siliconised paper	type: PET film	type: bi-siliconised paper	type: repulpable siliconised paper	type: repulpable siliconised paper	type: none	type: repulpable siliconised paper
Color	blue	blue		blue		blue		blue			translucent
Thickness of tape						75 µm			140 µm
