tesa® 77015 Bond & Detach
150µm double-sided white high shock & high tack stretch release tape
Product description
tesa® 77015 is a stretch release tape with a special stretchable backing equipped with a high shock adhesive.
tesa® 77015 features:
- Thickness: 150 µm
- Outstanding shock resistance
- High tack
- Very high bonding strength
- High tear resistance
- Easy removability by stretching the adhesive
- The tape can be removed even after a long bonding time
- Residue free removability
- IPX8
Product details and specifications
Application Fields

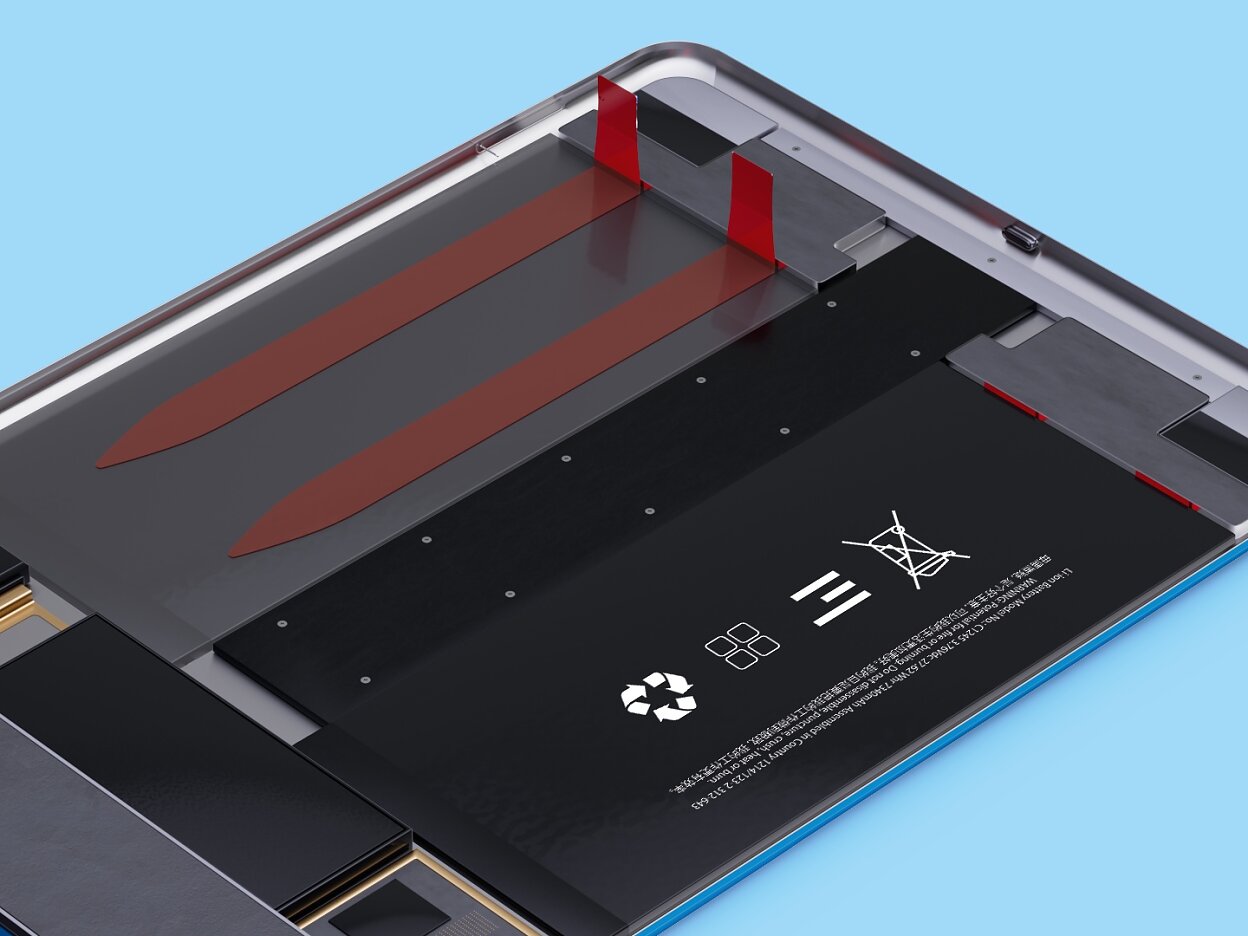

- Battery mounting
- Permanent mounting of components in electronic devices with the option to remove the parts for repairing or recycling
- Temporary fixation of components

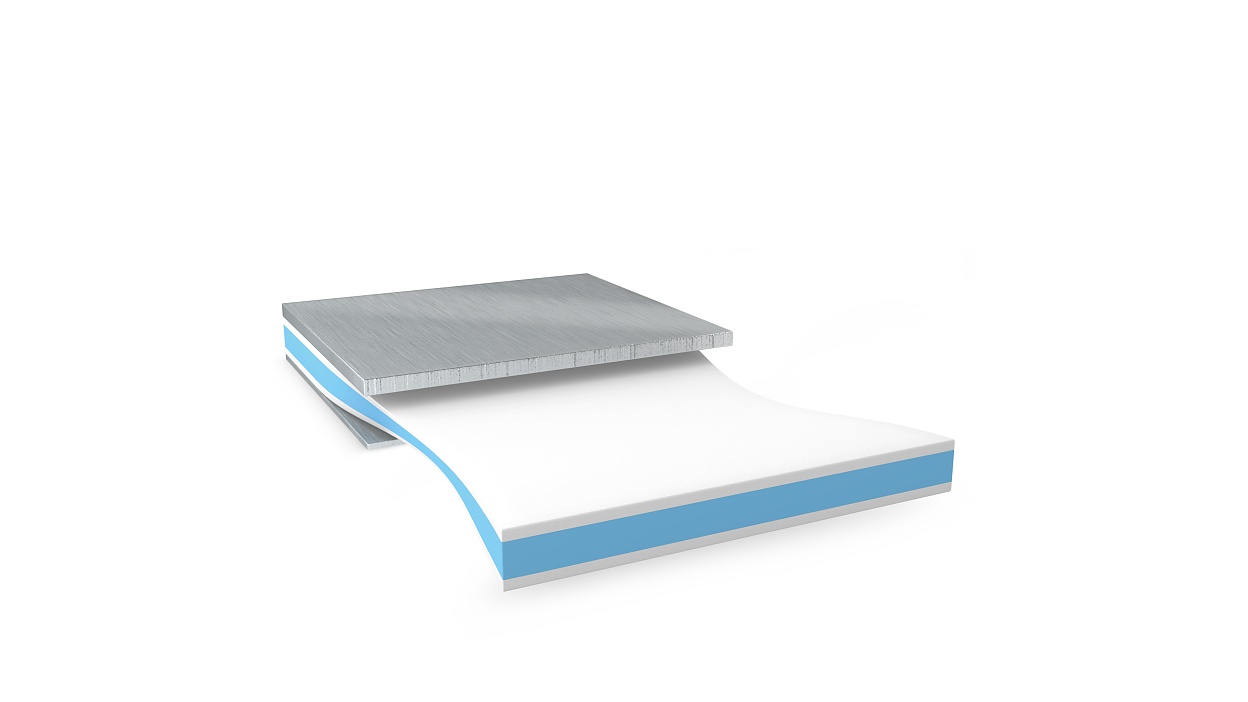

Product Construction
Backing material | stretchable specialty |
---|---|
Color | white |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Type of adhesive | specialty |
Type of liner | PET |
Product Construction
Backing material | stretchable specialty |
---|---|
Color | white |
Colour of liner | transparent |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Type of adhesive | specialty |
Type of liner | PET |
Properties / Performance Values
Static shear resistance at 23°C | very good |
---|---|
Removability after 14 days (23°C) | very good |
Temperature resistance short term | 90 °C |
Static shear resistance at 40°C | very good |
Residue free removal | yes |
Temperature resistance long term | 60 °C |
Properties / Performance Values
Static shear resistance at 23°C | very good |
---|---|
Removability after 14 days (23°C) | very good |
Temperature resistance short term | 90 °C |
Static shear resistance at 40°C | very good |
Residue free removal | yes |
Temperature resistance long term | 60 °C |
Adhesion to Values
Adhesion to Aluminium (initial) | 9 N/cm |
---|---|
Adhesion to Aluminium (after 14 days) | 10 N/cm |
Adhesion to Magnesium (initial) | 8 N/cm |
Adhesion to Magnesium (after 14 days) | 9 N/cm |
Adhesion to PE (initial) | 7 N/cm |
Adhesion to PE (after 14 days) | 8 N/cm |
Adhesion to Steel (initial) | 10 N/cm |
Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Values
Adhesion to Aluminium (initial) | 9 N/cm |
---|---|
Adhesion to Aluminium (after 14 days) | 10 N/cm |
Adhesion to Magnesium (initial) | 8 N/cm |
Adhesion to Magnesium (after 14 days) | 9 N/cm |
Adhesion to PE (initial) | 7 N/cm |
Adhesion to PE (after 14 days) | 8 N/cm |
Adhesion to Steel (initial) | 10 N/cm |
Adhesion to Steel (after 14 days) | 10 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
