tesa_AC-foam-reinforced-black_dr_001

tesa® 76120

200µm double sided black high shock & clean removable reinforced tape

Product description

tesa® 76120 is a double-sided reinforced black mounting tape with a special quick bonding and easy removable adhesive.
Special features:
  • Thickness: 200μm
  • High tack and quick bonding even on LSE substrates
  • Temperature sensitive removing with very fast and residue free removability especially at elevated temperatures
  • Outstanding shock resistance
  • Good anti-repulsion properties to prevent lifting
  • Light blocking
  • Waterproofing (IPX8)
  • Light blocking

Application Fields

  • Backcover bonding for mobile devices
  • Display bottom mounting for OLED displays
  • Demanding mounting applications for components in electronic devices

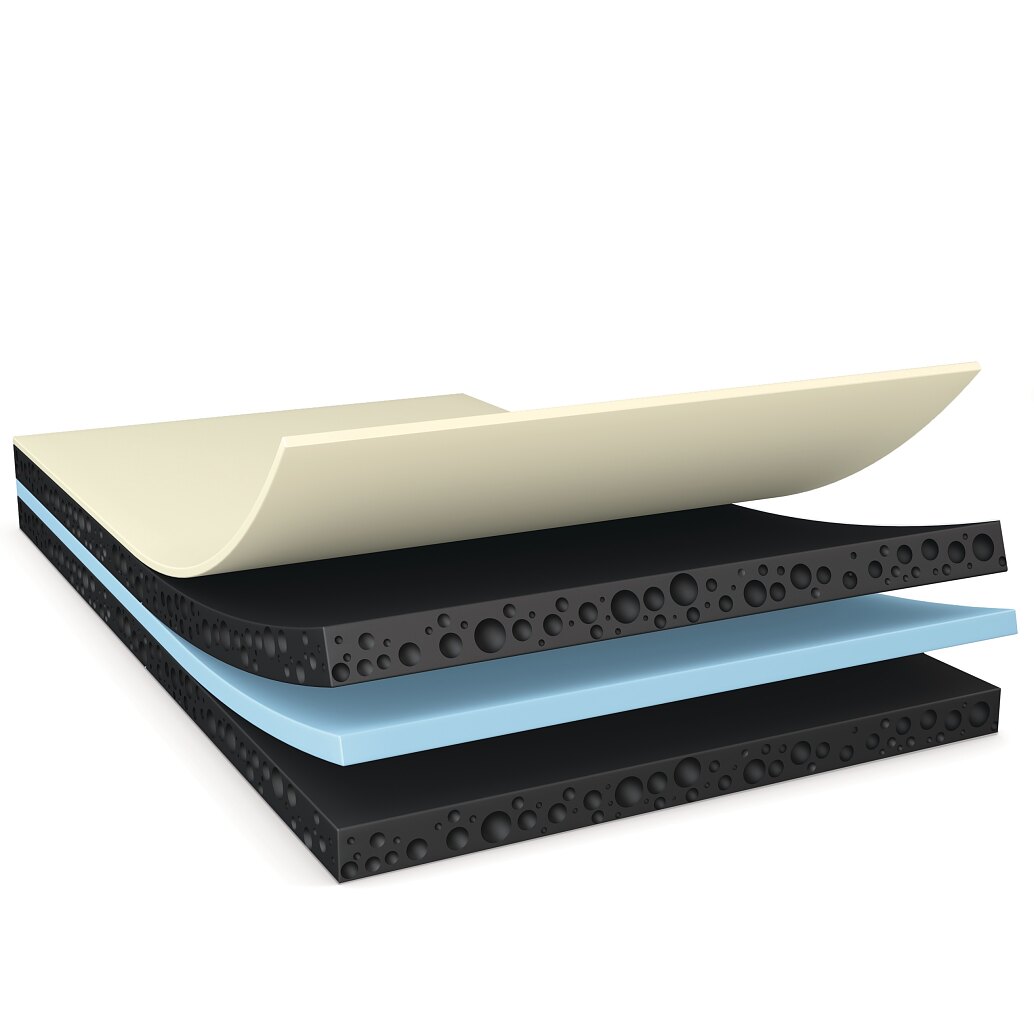

Product Construction

Type of adhesive specialty
Type of liner PET
Colour of liner transparent
Total thickness 200 µm
Thickness of liner 50 µm
Backing material PETP
Color black

Properties / Performance Values

Elongation at break 100 %
Static shear resistance at 40°C very good
Temperature resistance long term 60 °C
Temperature resistance short term 90 °C

Adhesion to Values

Adhesion to Steel (initial) 11 N/cm
Adhesion to PE (initial) 8 N/cm
Adhesion to PC (after 14 days) 9 N/cm
Adhesion to Aluminium (after 14 days) 9 N/cm
Adhesion to PC (initial) 9 N/cm
Adhesion to Glass (after 14 days) 10 N/cm
Adhesion to PE (after 14 days) 8 N/cm
Adhesion to Glass (initial) 10 N/cm
Adhesion to Aluminium (initial) 9 N/cm
Adhesion to Steel (after 14 days) 11 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
