Additional Info
Liner variants:
PV20 brown glassine liner / blue tesa logo
PV20 brown glassine liner / blue tesa logo
120µm double sided translucent non-woven tape

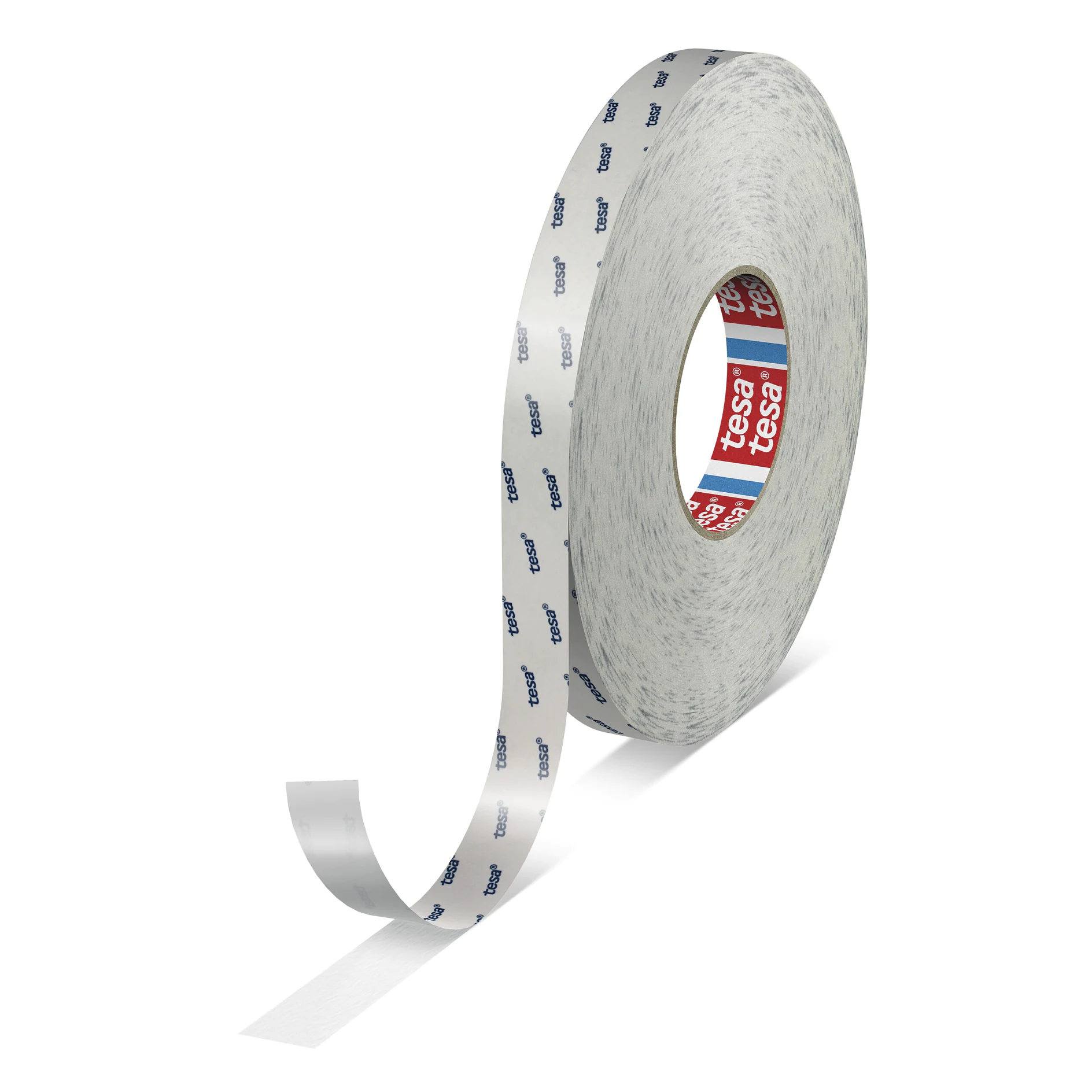

tesa® 68645 is a translucent, double-sided self-adhesive tape consisting of a non-woven backing and a tackified acrylic adhesive.
tesa® 68645 features especially:
| Backing material | non-woven |
|---|---|
| Color | translucent |
| Total thickness | 120 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | paper |
| Backing material | non-woven |
|---|---|
| Color | translucent |
| Total thickness | 120 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | paper |
| Temperature resistance long term | 80 °C |
|---|---|
| Tack | very good |
| Temperature resistance short term | 150 °C |
| Temperature resistance long term | 80 °C |
|---|---|
| Tack | very good |
| Temperature resistance short term | 150 °C |
| Adhesion to ABS (initial) | 10 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 12 N/cm |
| Adhesion to Glass (initial) | 11 N/cm |
| Adhesion to Glass (after 14 days) | 12 N/cm |
| Adhesion to PC (initial) | 10 N/cm |
| Adhesion to PC (after 14 days) | 12 N/cm |
| Adhesion to PE (initial) | 3 N/cm |
| Adhesion to PE (after 14 days) | 3.5 N/cm |
| Adhesion to Steel (initial) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 12 N/cm |
| Adhesion to ABS (initial) | 10 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 12 N/cm |
| Adhesion to Glass (initial) | 11 N/cm |
| Adhesion to Glass (after 14 days) | 12 N/cm |
| Adhesion to PC (initial) | 10 N/cm |
| Adhesion to PC (after 14 days) | 12 N/cm |
| Adhesion to PE (initial) | 3 N/cm |
| Adhesion to PE (after 14 days) | 3.5 N/cm |
| Adhesion to Steel (initial) | 9 N/cm |
| Adhesion to Steel (after 14 days) | 12 N/cm |
Download the files below for more technical details and information on this product.
