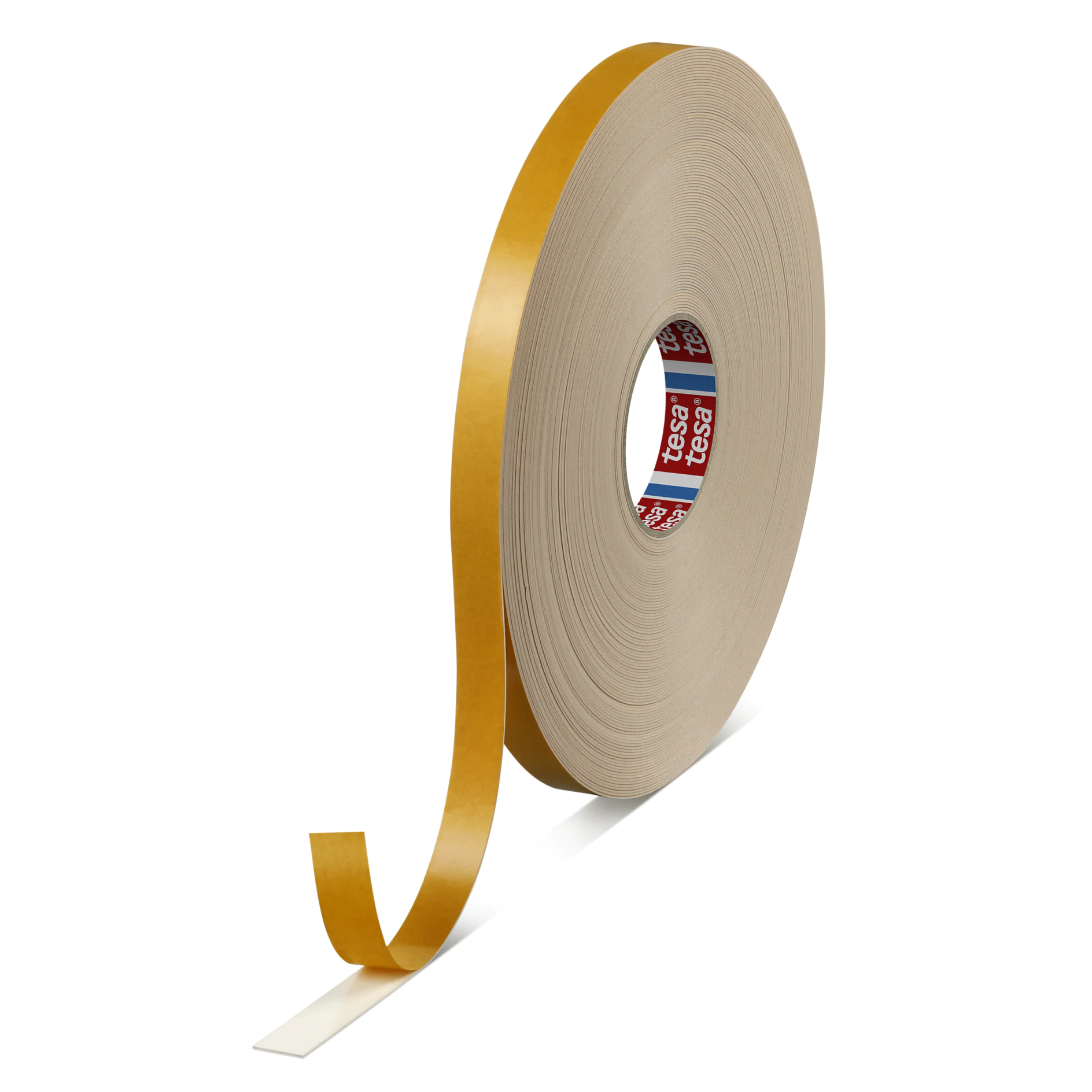

tesa® 62510

Double sided PE foam mounting tape

Product description

tesa® 62510 is a double sided PE foam tape for mounting applications. It consists of a highly conformable PE-foam backing and a tackified acrylic adhesive.

Product benefits:

¹ High ultimate adhesion level for a reliable bonding performanceFully outdoor suitable: UV, water and ageing resistantConformable PE foam core with high inner strengthSuitable for automatic and manual module assemblyEasy solar module assembly due to a high foam compression rate

Product details and specifications

Application Fields

General mounting applications
Mounting of trims and profiles
Solar module frames

Backing material	PE foam
Color	black/white
Total thickness	1,000 µm
Type of adhesive	tackified acrylic

Elongation at break	180 %
Tensile strength	10 N/cm
Humidity resistance	very good
Static shear resistance at 40°C	good
Tack	good
Static shear resistance at 70°C	very good
Temperature resistance long term	80 °C
Ageing resistance (UV)	very good
Softener resistance	medium
Static shear resistance at 23°C	good
Temperature resistance short term	80 °C

Adhesion to ABS (initial)	8 N/cm
Adhesion to ABS (after 14 days)	13.5 N/cm
Adhesion to Aluminium (initial)	8 N/cm
Adhesion to Aluminium (after 14 days)	13.5 N/cm
Adhesion to PC (initial)	8 N/cm
Adhesion to PC (after 14 days)	13.5 N/cm
Adhesion to PE (initial)	0.9 N/cm
Adhesion to PE (after 14 days)	0.9 N/cm
Adhesion to PET (initial)	6 N/cm
Adhesion to PET (after 14 days)	13.5 N/cm
Adhesion to PP (initial)	1.2 N/cm
Adhesion to PP (after 14 days)	1.2 N/cm
Adhesion to PS (initial)	8 N/cm
Adhesion to PS (after 14 days)	8 N/cm
Adhesion to PVC (initial)	13.5 N/cm
Adhesion to PVC (after 14 days)	13.5 N/cm
Adhesion to Steel (initial)	13.5 N/cm
Adhesion to Steel (after 14 days)	13.5 N/cm

Liner variants:
PV0 brown glassine paper (70µm)
PV13 transparent PET (50µm)
PV15 blue PE (100µm)

Peel Adhesion:
-immediately: foam splitting on steel
-after 14 days: foam splitting on steel, ABS, Aluminum, PC, PET, PS, PVC

tesa® 62510 is recognized by UL as photovoltaic polymeric material (QIHE2).

tesa® 62510 has been tested by TÜV Rheinland, Germany. The test confirms the longterm adhesion performance after IEC 61215 climate tests and a 85°C temperature resistance.

The temperature resistance (short/long) of tesa® 62510 has been approved according to tesa test method under static load.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

tesa 625xx Family Skin contact - statement 124.4 kB Product information_tesa® 62510_en-SG 57.8 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® 62510	tesa® 67008 New Bond	tesa® flameXtinct 45001	tesa® 63608	tesa® 63605	tesa® 67004 New Bond	tesa® 55576	tesa® 63610	tesa® 6700 New Bond	tesa® 62516	tesa® 62932
Total thickness	1,000 µm	800 µm	1,000 µm	800	500 µm	400	1,200 µm	1,000 µm	400	1,600 µm	500 µm
Type of adhesive	tackified acrylic	modified acrylic	FR acrylic	tackified acrylic	tackified acrylic	modified acrylic	acrylic	tackified acrylic	pure acrylic	tackified acrylic	tackified acrylic
Backing material	PE foam	Acrylic foam	FR PE foam	PE foam	PE foam	Acrylic foam	PE foam	PE foam	foamed acrylic	PE foam	PE foam
Color	black/white	grey	white	black/white	black/white	grey	white	black/white	grey	black/white	black/white
Adhesion to Steel (initial)	13.5 N/cm	17 N/cm	19.2 N/cm	11 N/cm	12 N/cm	14 N/cm	5.5 N/cm	11 N/cm	14 N/cm	13.5 N/cm	13 N/cm
Adhesion to Steel (after 14 days)	13.5 N/cm		22 N/cm	11 N/cm	12 N/cm			11 N/cm		13.5 N/cm	17 N/cm
Adhesion to PVC (initial)	13.5 N/cm			5 N/cm	5 N/cm		3 N/cm	6 N/cm		5.5 N/cm	14.5 N/cm
