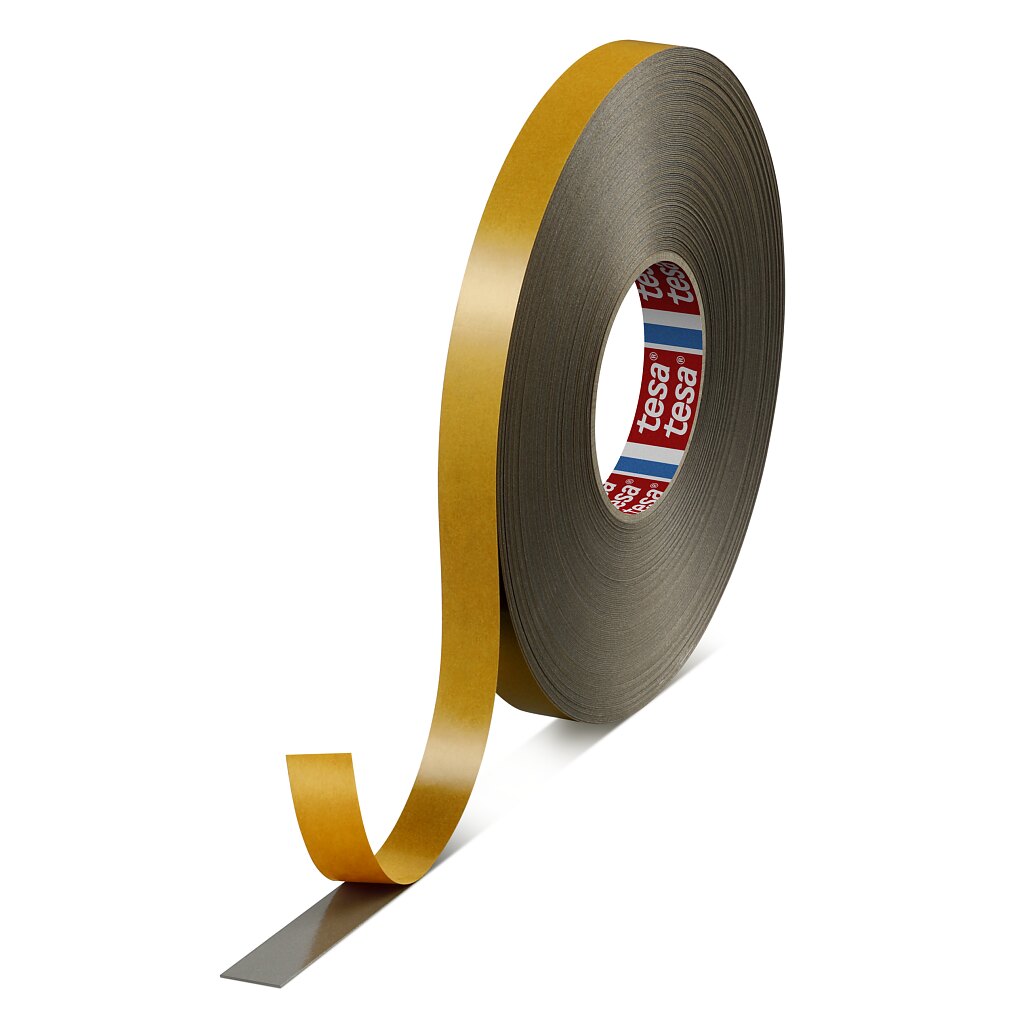

tesa® 62505

500 µm double sided PE foam tape

Product description

tesa® 62505 is a double sided PE foam tape for lightweight mounting applications. It consists of a highly conformable PE foam backing and a tackified acrylic adhesive.

Product benefits:

1 Thin foam backing for an invisible design gap

1 High ultimate adhesion level for a reliable bonding performance

1 Soft, conformable foam adapting to structured surfaces

1 Fully outdoor suitable: UV, water and ageing resistant

1 Suitable for manual and automatic application processes

Application Fields

Mounting of decorative trims and profiles

Product Construction

Backing material PE foam
Type of adhesive tackified acrylic
Total thickness 500 µm
Color black/white

Properties / Performance Values

Elongation at break 150 %
Static shear resistance at 23°C good
Humidity resistance very good
Static shear resistance at 40°C good
Temperature resistance long term 80 °C
Temperature resistance short term 80 °C
Tack good
Tensile strength 5 N/cm
Ageing resistance (UV) very good
Softener resistance medium

Adhesion to Values

Adhesion to Steel (initial) 8.5 N/cm
Adhesion to PE (initial) 0.9 N/cm
Adhesion to PC (after 14 days) 9.5 N/cm
Adhesion to ABS (initial) 3 N/cm
Adhesion to PP (after 14 days) 1.2 N/cm
Adhesion to PET (after 14 days) 9.5 N/cm
Adhesion to Aluminium (after 14 days) 9.5 N/cm
Adhesion to PE (after 14 days) 1.2 N/cm
Adhesion to Aluminium (initial) 5 N/cm
Adhesion to ABS (after 14 days) 9.5 N/cm
Adhesion to PC (initial) 5 N/cm
Adhesion to PVC (initial) 2 N/cm
Adhesion to PET (initial) 3 N/cm
Adhesion to PP (initial) 0.9 N/cm
Adhesion to Steel (after 14 days) 9.5 N/cm
Adhesion to PVC (after 14 days) 9.5 N/cm

Additional Info

Liner variants:
PV0 brown glassine paper (70µm)
PV6 red filmic liner (80µm)

Peel Adhesion:
-after 14 days: foam splitting on Steel, Aluminium, ABS, PS, PET, PVC
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
