Product information

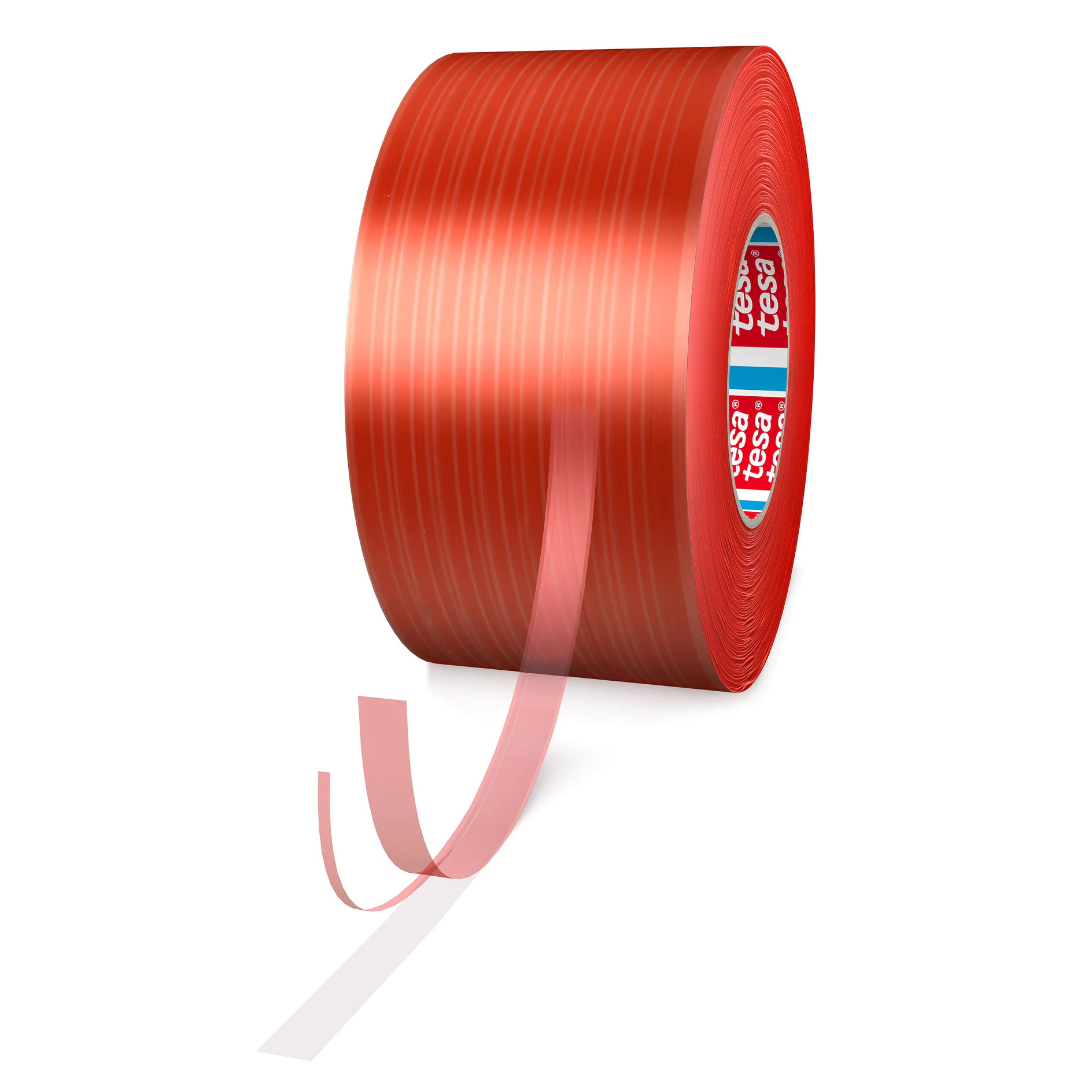

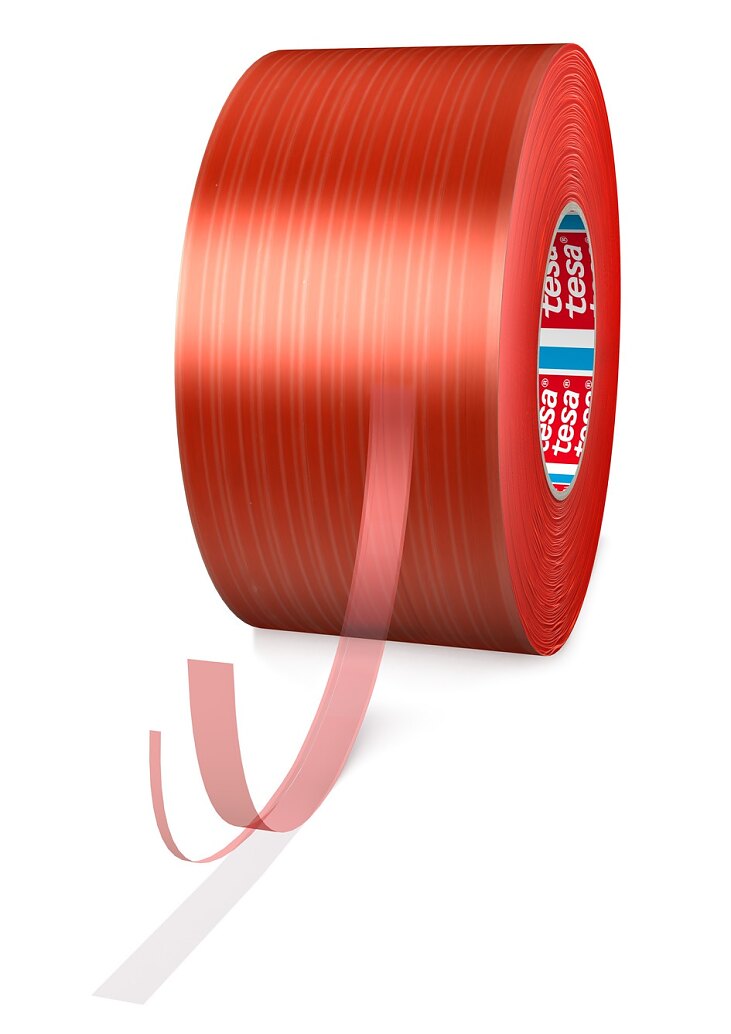

tesa® 6190 Combitape

Double-sided filmic box sealing tape with integrated tear-tape



Product description

tesa® Combitape is a transparent double-sided tape consisting of a PET-film backing and a tackified acrylic adhesive. tesa® Combitape is supplied with fingerlift (extended liner) and integrated tear-tape.

tesa® Combitape has been designed for corrugated board cartons and features:
  • Fast liner removal due to fingerlift
  • High initial adhesion for fast closure
  • Reliable bonding performance even at high temperature
  • Implement closure and opening function on limited space

Main applications

  • Self-adhesive mail order boxes
  • CD and book cartons
tesa_06190_pr_001_fullsize
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-001a-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-002a-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-001b-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-002b-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-003-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-004a-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-005a-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-004b-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-005b-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-006-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-007-ap
tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-008-ap

tesa_06190_pr_001_fullsize

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-001a-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-002a-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-001b-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-002b-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-003-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-004a-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-005a-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-004b-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-005b-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-006-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-007-ap

tesa-6190-double-sided-filmic-box-sealing-tape-with-integrated-tear-tape-008-ap

Technical properties

Elongation at break

30 %

Type of adhesive

tackified acrylic

Type of liner

MOPP

Colour of liner

red

Tensile strength

130 N/cm

Weight of liner

72 g/m²

Total thickness

205 µm

Thickness of liner

80 µm

Backing material

PET film

Color

transparent

Adhesion properties

Adhesion to Steel (initial)

11.5 N/cm

Adhesion to PE (initial)

5.6 N/cm

Adhesion to PC (after 14 days)

13.4 N/cm

Adhesion to PS (after 14 days)

12.1 N/cm

Adhesion to ABS (initial)

10.8 N/cm

Adhesion to ABS (after 14 days)

11.9 N/cm

Adhesion to PP (after 14 days)

8.8 N/cm

Adhesion to PET (after 14 days)

11.9 N/cm

Adhesion to Aluminium (after 14 days)

12.6 N/cm

Adhesion to PC (initial)

12.2 N/cm

Adhesion to PVC (initial)

9.6 N/cm

Adhesion to PE (after 14 days)

6.6 N/cm

Adhesion to PS (initial)

10.4 N/cm

Adhesion to PET (initial)

9.8 N/cm

Adhesion to Aluminium (initial)

10.2 N/cm

Adhesion to PP (initial)

6 N/cm

Adhesion to Steel (after 14 days)

14 N/cm

Adhesion to PVC (after 14 days)

12.8 N/cm

Rating properties

Static shear resistance at 23°C

+

Resistance to chemicals

+

Humidity resistance

++

Tack

+

Ageing resistance (UV)

++

Temperature resistance long term

100 °C

Static shear resistance at 40°C

+

Temperature resistance short term

200 °C

Softener resistance

+

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
