tesa® 61380

150µm double sided transparent high performance filmic tape


Product description

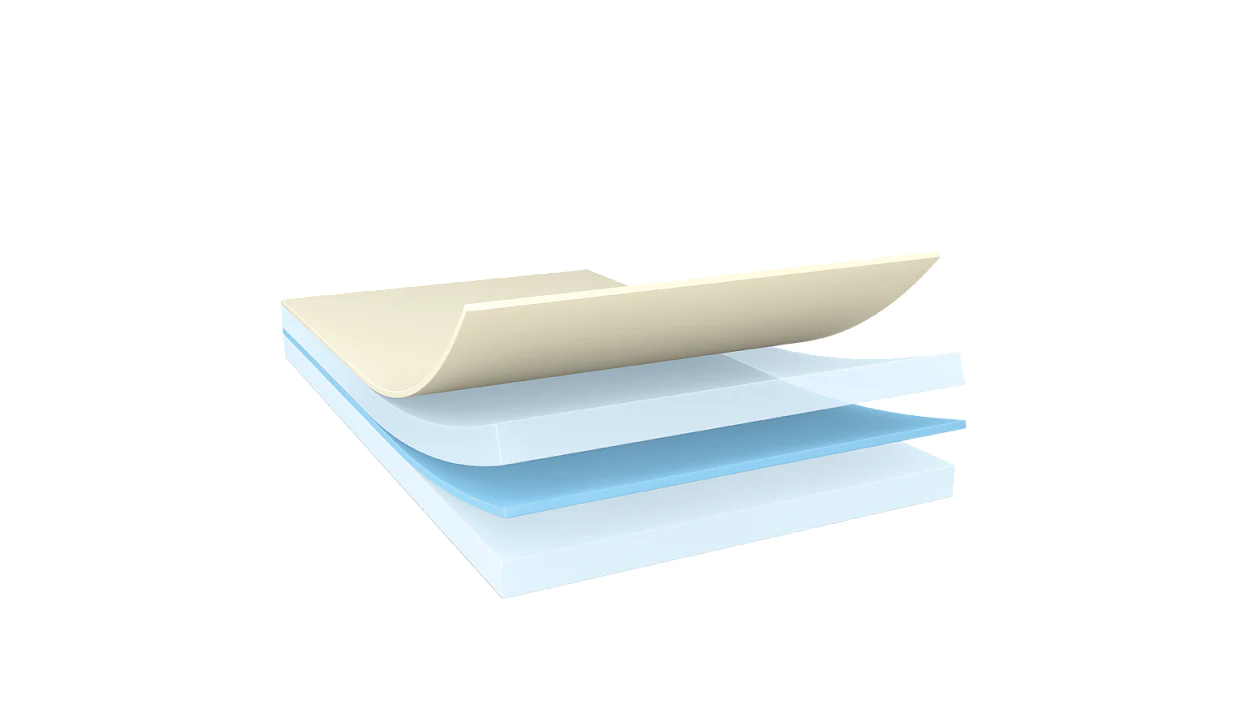

tesa® 61380 is a double sided self-adhesive tape consisting of a transparent PET backing and a tackified acrylic adhesive.

Special features:

  • Thickness: 150µm
  • Very high bonding strength
  • Superior push out resistance
  • High shock resistance
  • Excellent resistance to demanding environmental conditions


Product details and specifications

Application Fields

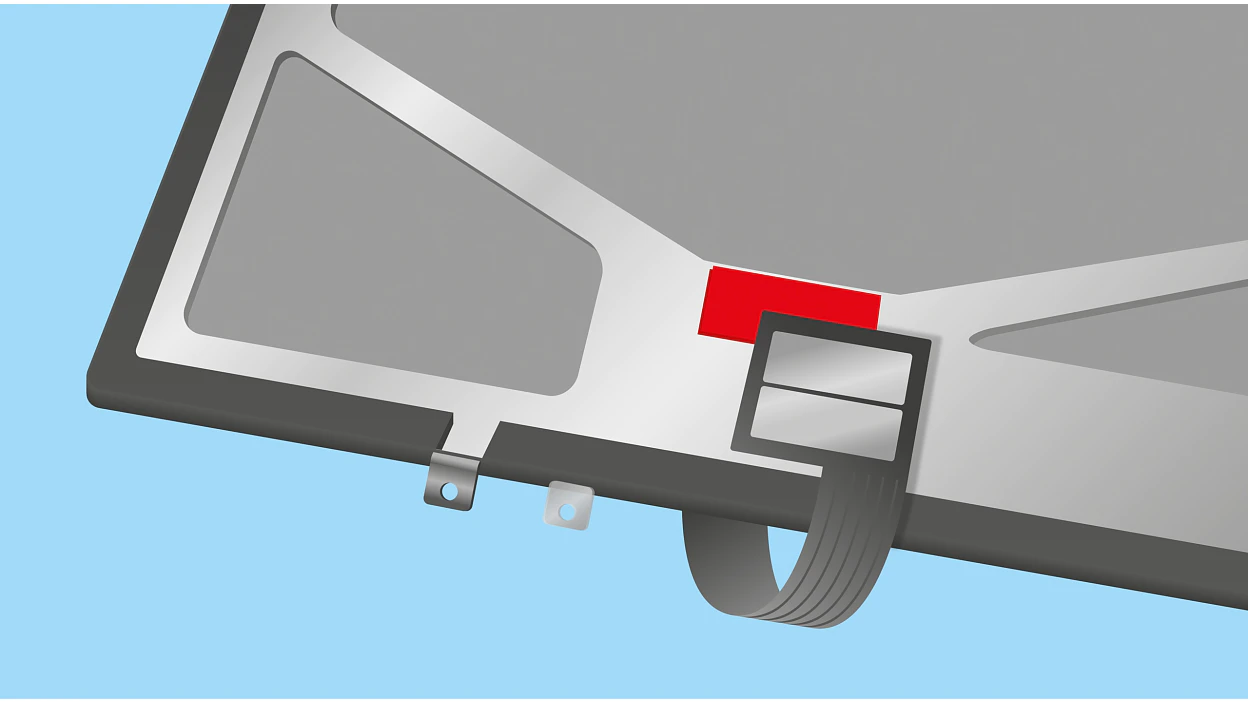

  • Lens mounting in mobile phones
  • Touch panel mounting

Product Construction

Backing material PET film
Color transparent
Colour of liner white with tesa logo
Thickness of liner 69 µm
Total thickness 150 µm
Type of adhesive tackified acrylic
Type of liner glassine
Weight of liner 80 g/m²

Properties / Performance Values

Elongation at break 50 %
Tensile strength 20 N/cm
Temperature resistance short term 200 °C
Temperature resistance long term 100 °C
Humidity resistance very good
Static shear resistance at 40°C good
Ageing resistance (UV) very good

Adhesion to Values

Adhesion to ABS (initial) 9.3 N/cm
Adhesion to ABS (after 14 days) 13.1 N/cm
Adhesion to ABS (covered side, after 14 days) 14.4 N/cm
Adhesion to ABS (covered side, initial) 10.2 N/cm
Adhesion to Glass (initial) 14.4 N/cm
Adhesion to Glass (after 14 days) 16.4 N/cm
Adhesion to PC (initial) 11.4 N/cm
Adhesion to PC (after 14 days) 19.1 N/cm
Adhesion to PC (covered side, after 14 days) 19.2 N/cm
Adhesion to PC (covered side, initial) 13.3 N/cm
Adhesion to PMMA (initial) 13.7 N/cm
Adhesion to PMMA (after 14 days) 19.3 N/cm
Adhesion to Steel (initial) 14.1 N/cm
Adhesion to Steel (after 14 days) 16.9 N/cm
Adhesion to Steel (covered side, after 14 days) 16.9 N/cm
Adhesion to Steel (covered side, initial) 14.6 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
