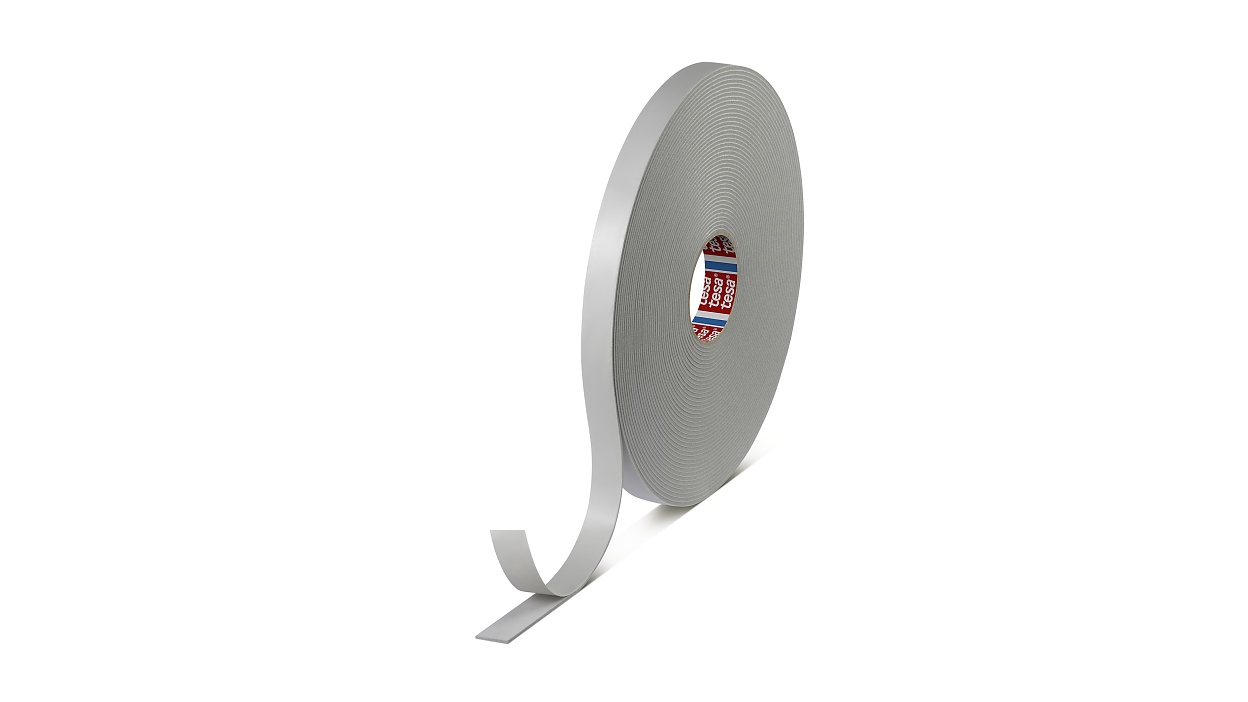

tesa® 60103 Grey


Product details and specifications

Backing material PVC foam
Total thickness 3,200 µm
Type of adhesive acrylic
Elongation at break 150 %
Hardness - Shore 00 25 STK
Water resistance very good
Suitable for die cutting yes
Temperature resistance max. 80 °C
Compression set 5 %
Tensile strength cm2 20 N/cm²
Flame retardance low
Temperature resistance min. -40 °C
Chemical resistance good
Adhesion to steel 2.8 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product tesa® 60103 Grey tesa® 61103 tesa® 50601 tesa® 50602 tesa® 4776 tesa® 7495 tesa® 66703 tesa® 61116 tesa® 66701 tesa® 50604 tesa® 4773 tesa® 60106 Black
Total thickness
3,200 µm
4,800 µm
3,000 µm
6,000 µm
12,000 µm
12,000 µm
3.2 mm
12,700 µm
1.6 mm
12,000 µm
6,000 µm
6,400 µm
Type of adhesive
acrylic
acrylic
acrylic
acrylic
acrylic
acrylic
acrylic
natural rubber
acrylic
acrylic
acrylic
acrylic
Backing material
PVC foam
EPDM rubber foam
PVC / Nitrile foam
PVC / Nitrile foam
PVC / Nitrile foam
PE foam
EPDM rubber foam
Neoprene rubber foam
EPDM rubber foam
PVC / Nitrile foam
PVC / Nitrile foam
soft PVC
Color
black
black
Adhesion to Steel (after 14 days)
5.5 N/cm
