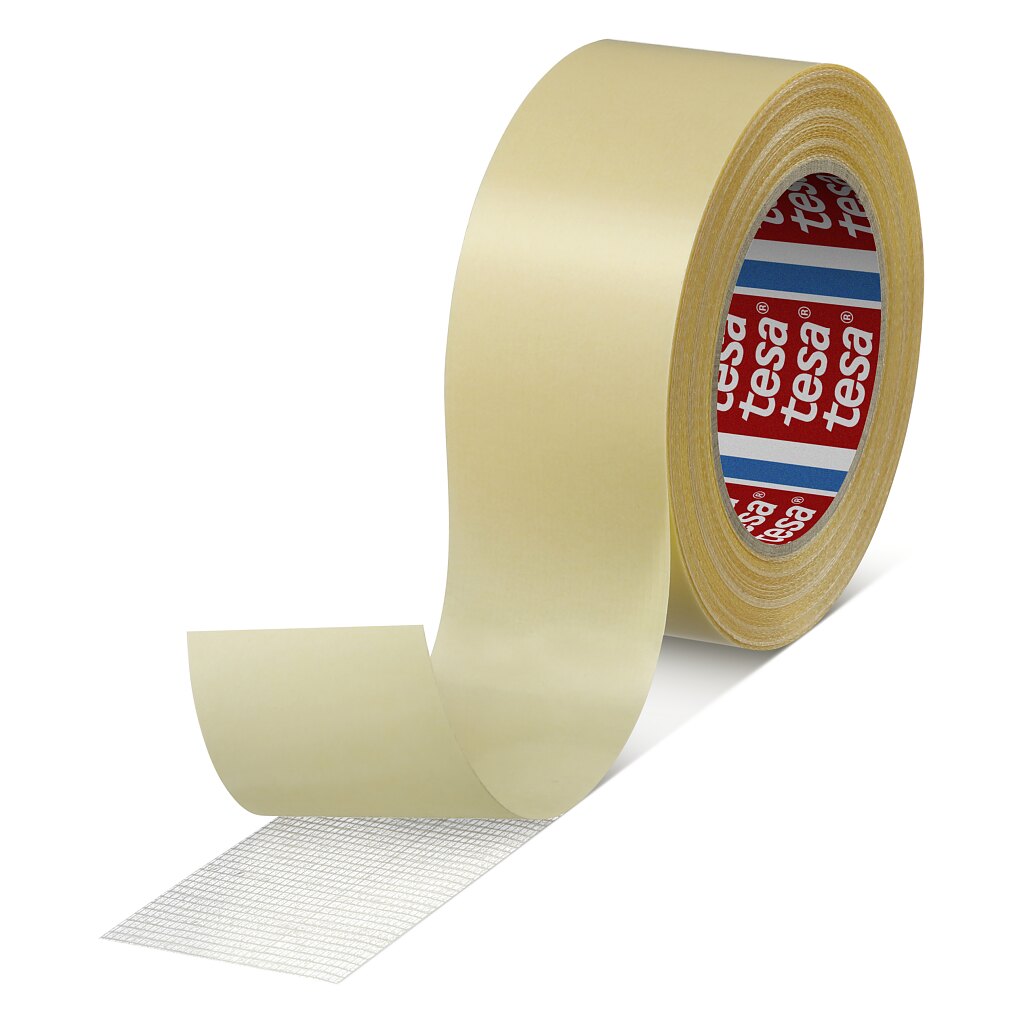

tesa® 4934

Double-sided fabric tape

Product description

tesa® 4934 is a double-sided tape. It consists of a fabric backing with a thick, tacky adhesive coating. The synthetic rubber adhesive is solvent free.

tesa® 4934 is a general purpose mounting tape.

tesa® 4934 is easily hand tearable.

Application Fields

Due to the flexible fabric backing and the high coating weight it is particularly suited for mounting on rough, fibrous surfaces, for example carpet laying.

Product Construction

Type of adhesive synthetic rubber
Type of liner glassine
Total thickness 200 µm
Backing material cloth
Color white

Properties / Performance Values

Elongation at break 20 %
Static shear resistance at 23°C medium
Static shear resistance at 70°C low
Humidity resistance good
Tack very good
Tensile strength 35 N/cm
Ageing resistance (UV) medium
Static shear resistance at 40°C very good
Fogging very good
Temperature resistance long term 40 °C
Temperature resistance short term 60 °C

Adhesion to Values

Adhesion to Steel (initial) 14.5 N/cm
Adhesion to PE (initial) 8 N/cm
Adhesion to PP (after 14 days) 24.5 N/cm
Adhesion to PVC (initial) 14 N/cm
Adhesion to PE (after 14 days) 8.5 N/cm
Adhesion to PP (initial) 16 N/cm
Adhesion to Steel (after 14 days) 24 N/cm
Adhesion to PVC (after 14 days) 22.5 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
