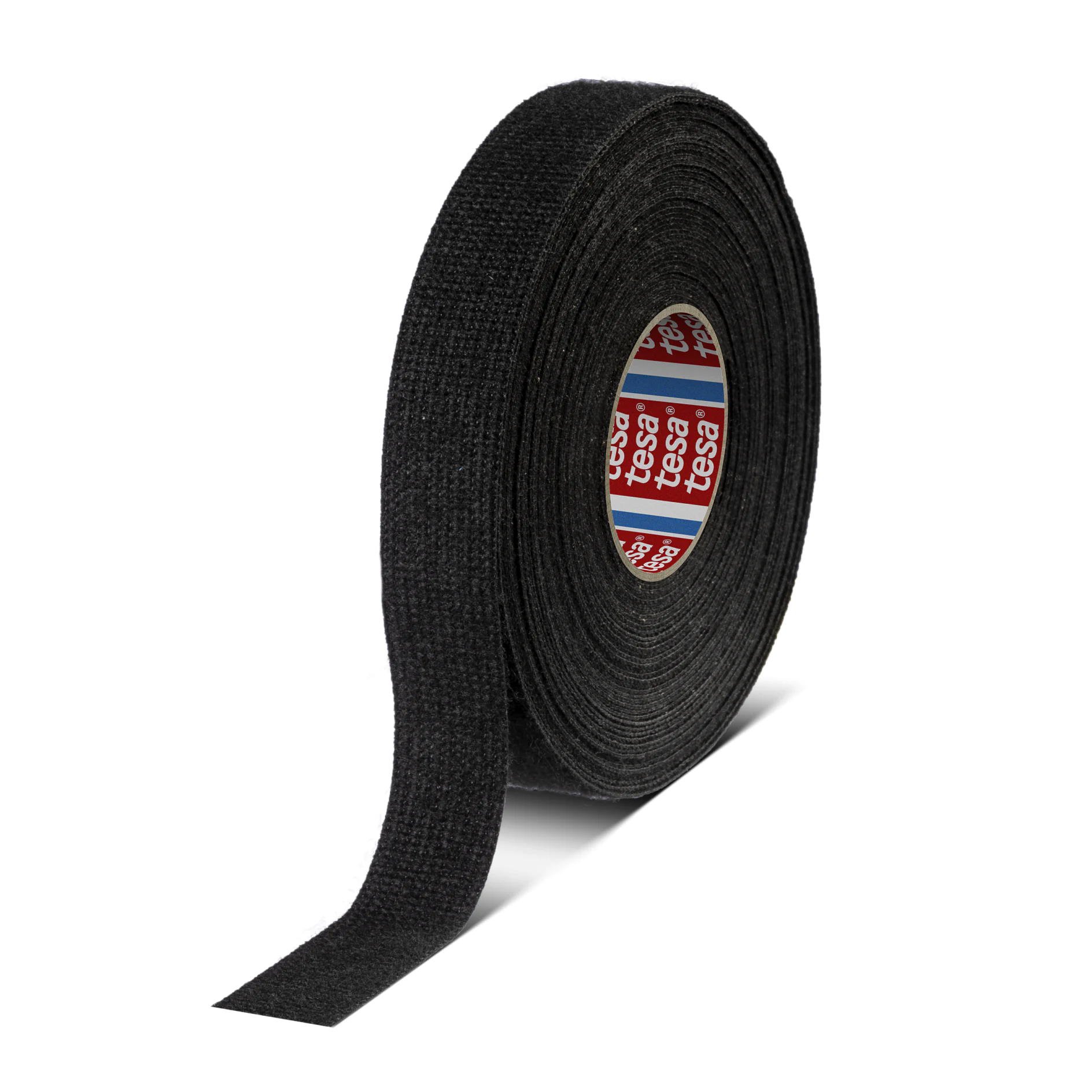

tesa® 51608
PET fleece tape for flexibility and noise damping
Description du produit
tesa® 51608 is a PET fleece wire harness tape with a rubber-based adhesive, and is optimized for manual application. The fleece tape has a high tack and only requires a short dwell time to reach final adhesive power. The natural rubber adhesive ensures an excellent bond to both polar and non-polar surface. tesa® 51608 is the universal tape for wire harness bundling in the passenger compartment. It combines important features such as noise abatement, class C rating in sound dampening, abrasion resistance, and bundling strength while keeping harnesses flexible, and allowing for easy installation at the OEM. The tape is convenient to use due to its flexibility, stable unwinding, and hand-tearability.
Détails du produit et spécifications
Applications principales
1 Used in the passenger compartment, providing flexibility and noise dampening
1 Offers strong adhesion to substrates with high or low surface energy
1 Easy to use due to stable unwinding and hand-tearability
1 Ideal for noise dampening
1 The product is resistant to abrasion
1 Tape allows for a residue-free removal after use
Propriétés techniques
Epaisseur totale | 280 µm |
---|---|
Support | non tissé de polyester |
Type de masse adhésive | A base de caoutchouc |
Propriétés techniques
Epaisseur totale | 280 µm |
---|---|
Support | non tissé de polyester |
Type de masse adhésive | A base de caoutchouc |
Classement des propriétés
Allongement à la rupture | 20 % |
---|---|
Résistance à la rupture | 40 N/cm |
Résistance à l'abrasion (mandrin 5mm, LV312) | Class A |
Résistance à l'abrasion (mandrin 10mm, LV312) | Class B |
Absorption des bruits (LV312) | Class C |
Résistance à la température max. | 105 °C |
Force de déroulement (largeur de rouleau ≤ 9mm) | 9 N/roll (30 m/min) |
Force de déroulement (largeur de rouleau > 9mm) | 9 N/roll (30 m/min) |
Résistance à la température min. | -40 °C |
Classement des propriétés
Allongement à la rupture | 20 % |
---|---|
Résistance à la rupture | 40 N/cm |
Résistance à l'abrasion (mandrin 5mm, LV312) | Class A |
Résistance à l'abrasion (mandrin 10mm, LV312) | Class B |
Absorption des bruits (LV312) | Class C |
Résistance à la température max. | 105 °C |
Force de déroulement (largeur de rouleau ≤ 9mm) | 9 N/roll (30 m/min) |
Force de déroulement (largeur de rouleau > 9mm) | 9 N/roll (30 m/min) |
Résistance à la température min. | -40 °C |
Propriétés adhésives
Pouvoir adhésif sur acier | 3 N/cm |
---|
Propriétés adhésives
Pouvoir adhésif sur acier | 3 N/cm |
---|
Téléchargez les fichiers ci-dessous pour plus de détails techniques et d'informations sur ce produit.
