tesa® ACXplus 7074

ACXplus High Resistance 1000µm

  • It combines a very good temperature and shear resistance with an outstanding cold shock resistance up to -40°.
  • The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.

Product description

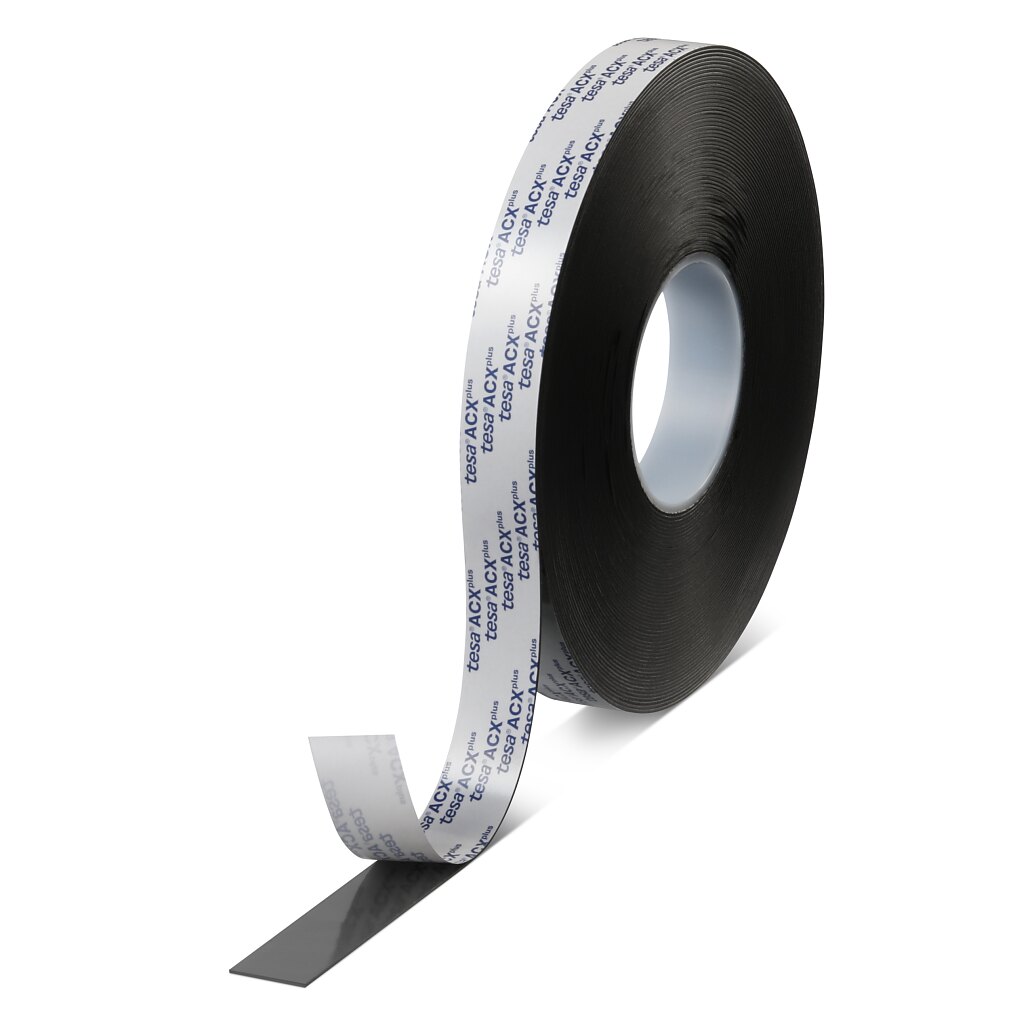

tesa® ACXplus 7074 is a black acrylic foam tape. It consists of a high-performance acrylic system and due to its unique components it combines a very good temperature resistance with an outstanding cold shock resistance up to -40°C. It is designed for demanding outdoor bonding applications especially in combination with the tesa Adhesion Promoters. The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.

Application Fields

Bonding of panels and reinforcement bars in the following Industries:
  • Elevator
  • Solar
  • Transportation
  • Production equipment

Product Construction

Backing material foamed acrylic
Type of adhesive pure acrylic
Total thickness 1000 µm
Color black

Adhesion to Values

Adhesion to Steel (after 3 days) 30 N/cm

Additional Info

PV 22 = White PE coated paper liner tesa® ACXplus branded
PV 24 = Blue filmic liner

tesa® ACXplus 7074 is recognized according to UL Standard 746C. UL File QOQW2.E309290
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
