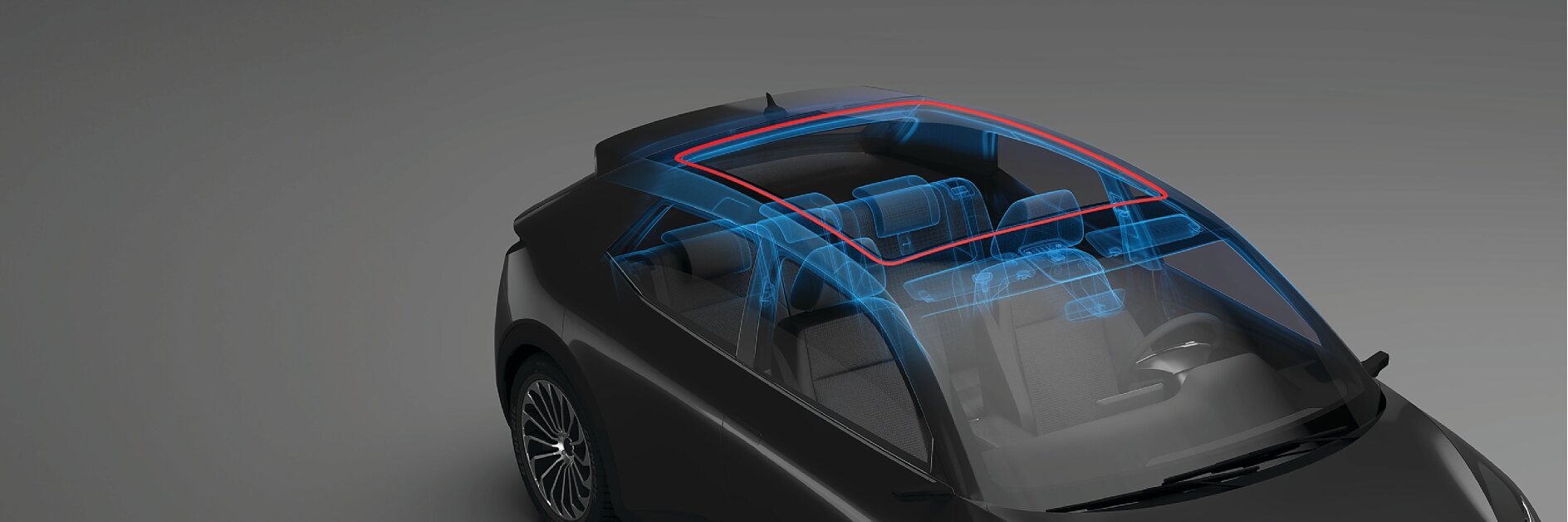

A car with a transparent overlay showing the interior seating and structure, highlighting the sunroof area in red, featuring tesa tape.

Sunroof seals.
Bond with confidence.

Performance is everything when you supply sunroofs. Our adhesive solutions for sunroof seal mounting excel under stress and stand the test of time. The high performance of tesa® ACXplus Seal Line, combined with our technical support that can tailor adhesive tapes for your needs, provides a bonding solution you can have confidence in.

Performance tests

See how tesa® 74508 performs in dynamic shear and floating roller peel tests.

sunroof_seal_comparison_01

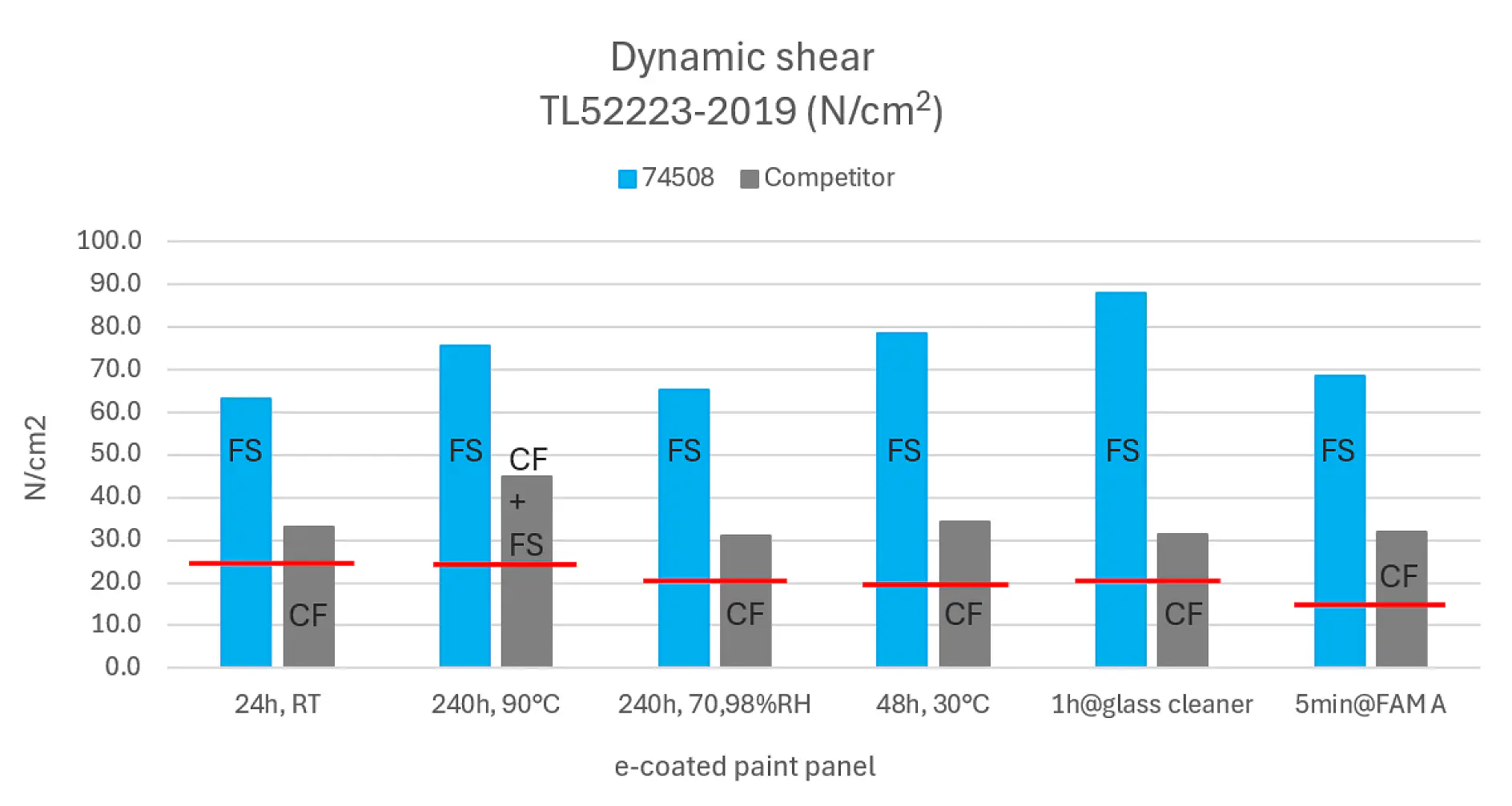

tesa®  745xx shows high shear resistance because of the strong acrylic foam core, reaching dynamic shear values above the required standard for TL 52223-2019.

sunroof_seal_comparison_02

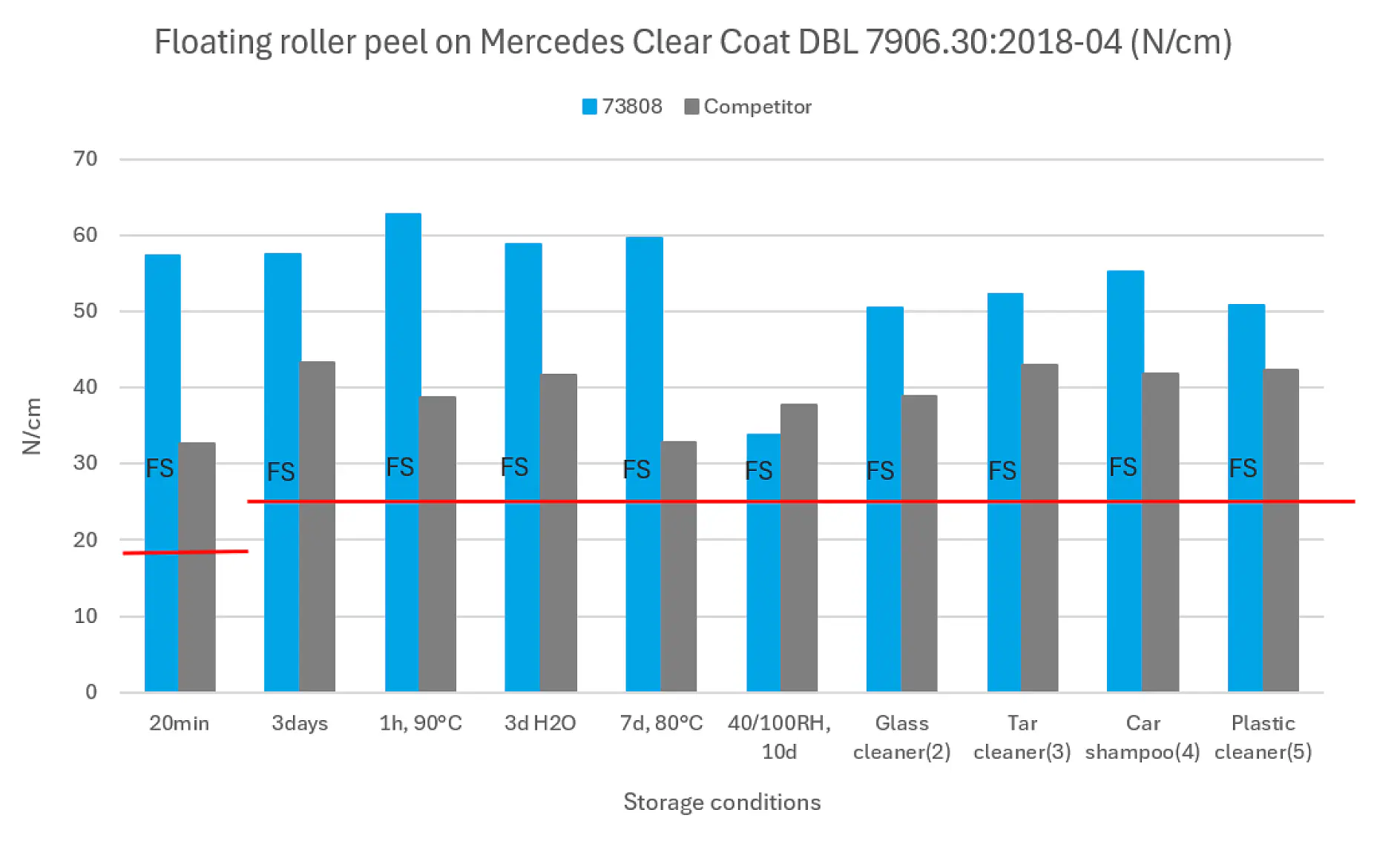

tesa®  738xx shows immediate foam split with high bonding strength (up to 60 N/cm) as well as after ageing. Foam split or cohesion failure mode shows that the anchorage of the tape to both substrates is very reliable.

Providing responsive support to drive business growth

DSC02164_V2

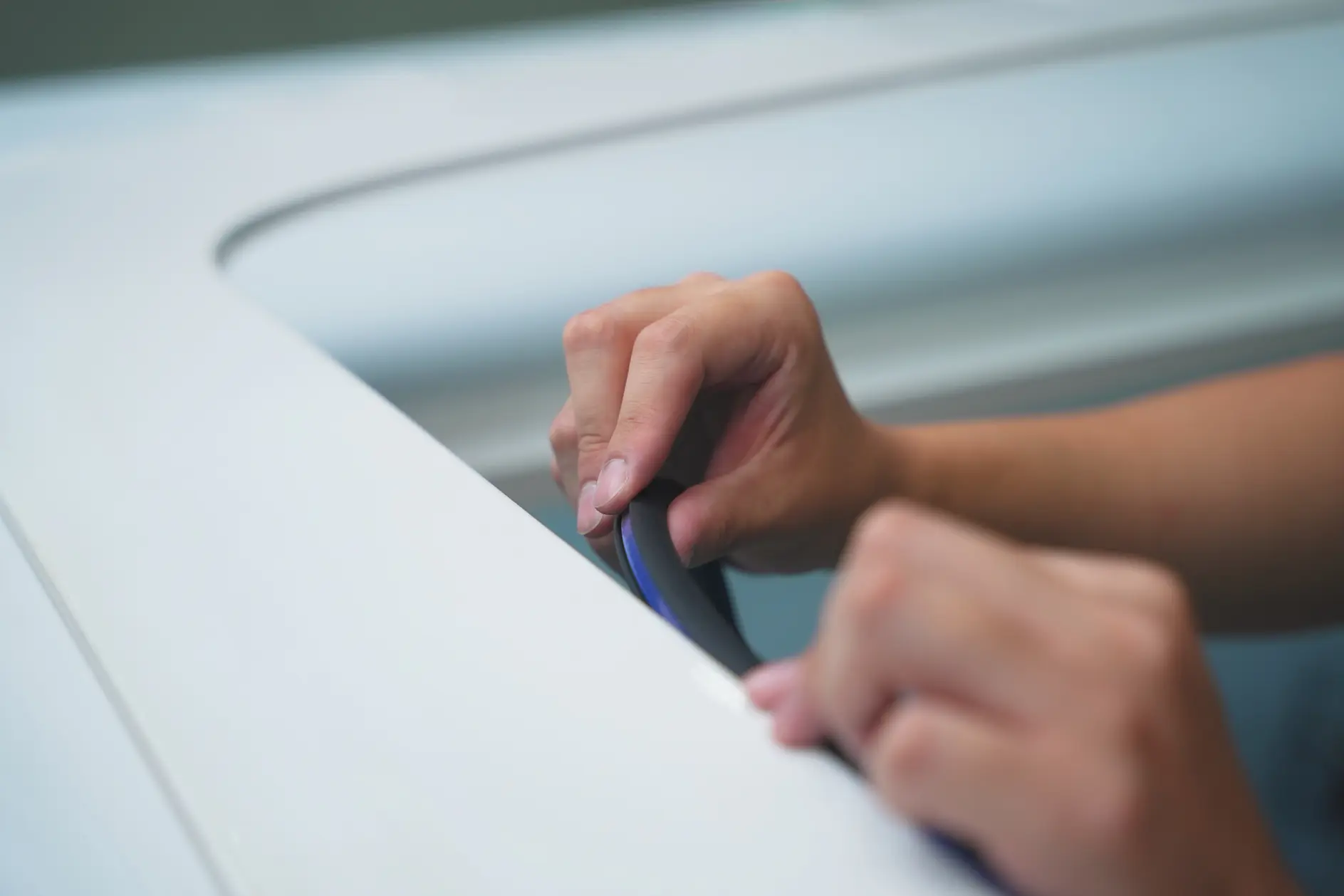

A sunroof seal manufacturer, enjoying success in its home market, was looking to expand into new territories.

This meant it needed to find suppliers that could help it meet material approvals for new OEMs. Looking for a high-performance adhesive partner, they asked tesa, because they knew that as well as offering a proven product, we offer on-site support through our 11 customer solution centers globally.

We were able to help the sunroof seal manufacturer meet the high specification standards of a European OEM, and prove it in testing, at each stage of the value chain. We tailored our product design as necessary, ultimately to get the sunroof seal and our tape into production. This level of support is available to all of tesa’s customers, including you.

Enduring quality & performance

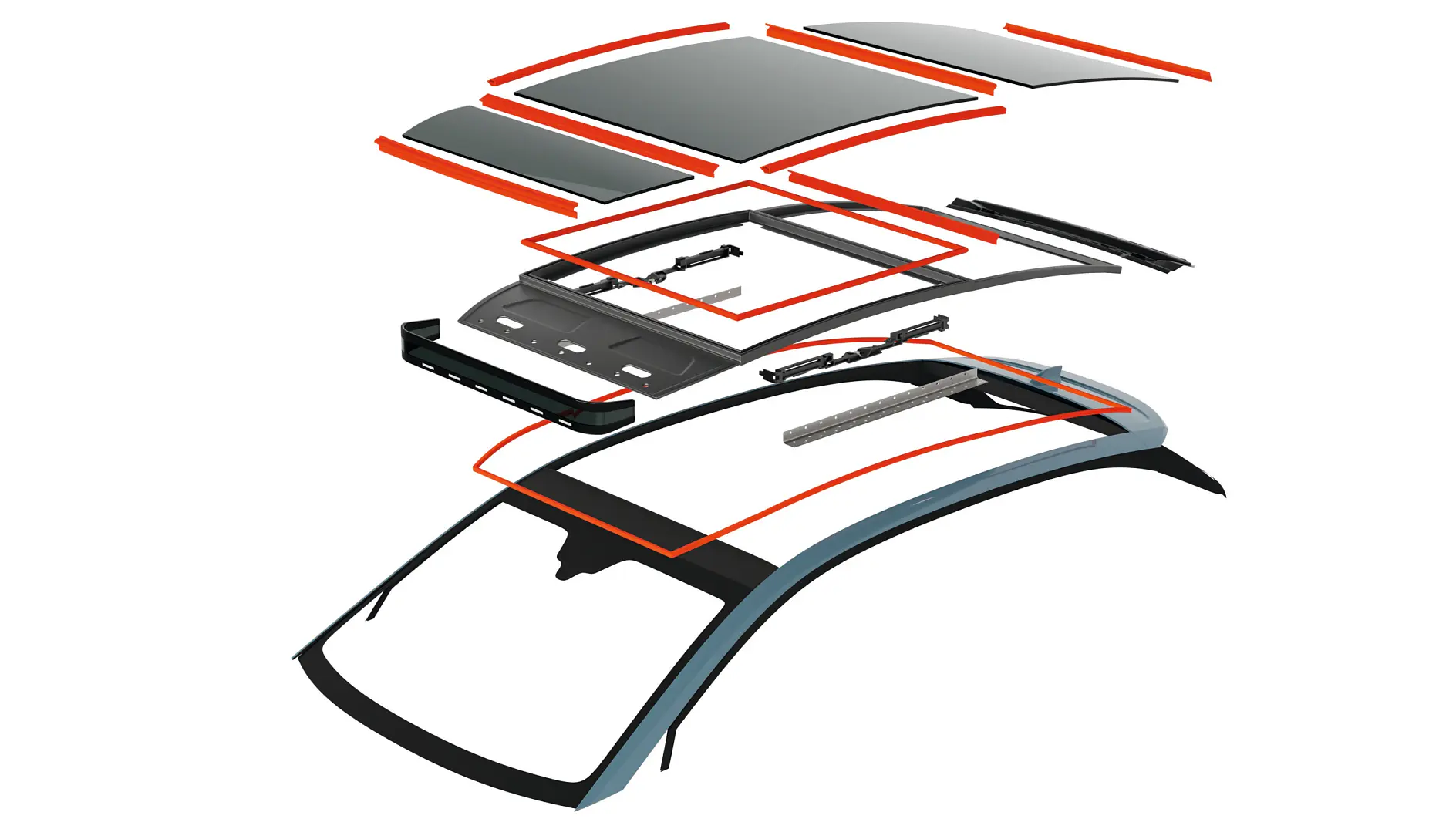

automotive-sunroof-explosion-grahic-001-ap-cms

For reliable performance, we never compromise on quality: tesa® ACXplus Seal Line tapes are compatible with multiple substrates, including

  • inked glass,
  • e-coating,
  • and UV powder



They’re resistant to temperature variations, humidity, and UV, and they maintain a reliable bond within a temperature range of -40 °C to 90 °C.

Downloads

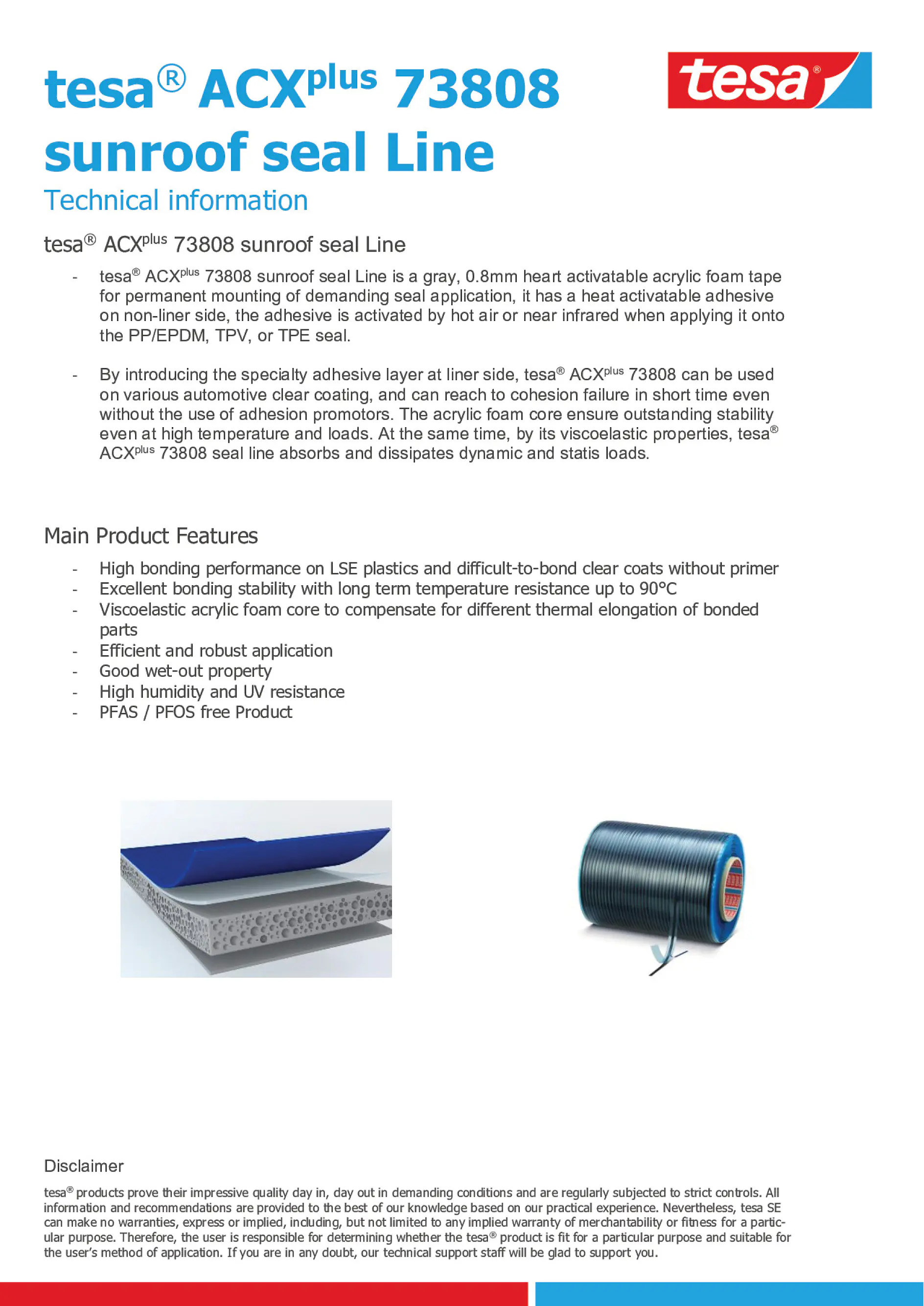

Sunroof seal TI sheet
TI 73808 Sunroof seal TI sheet PDF 202.5 kB
Product information_tesa® ACXplus 73808_en
Product information_tesa® ACXplus 73808_en PDF 43.8 kB
