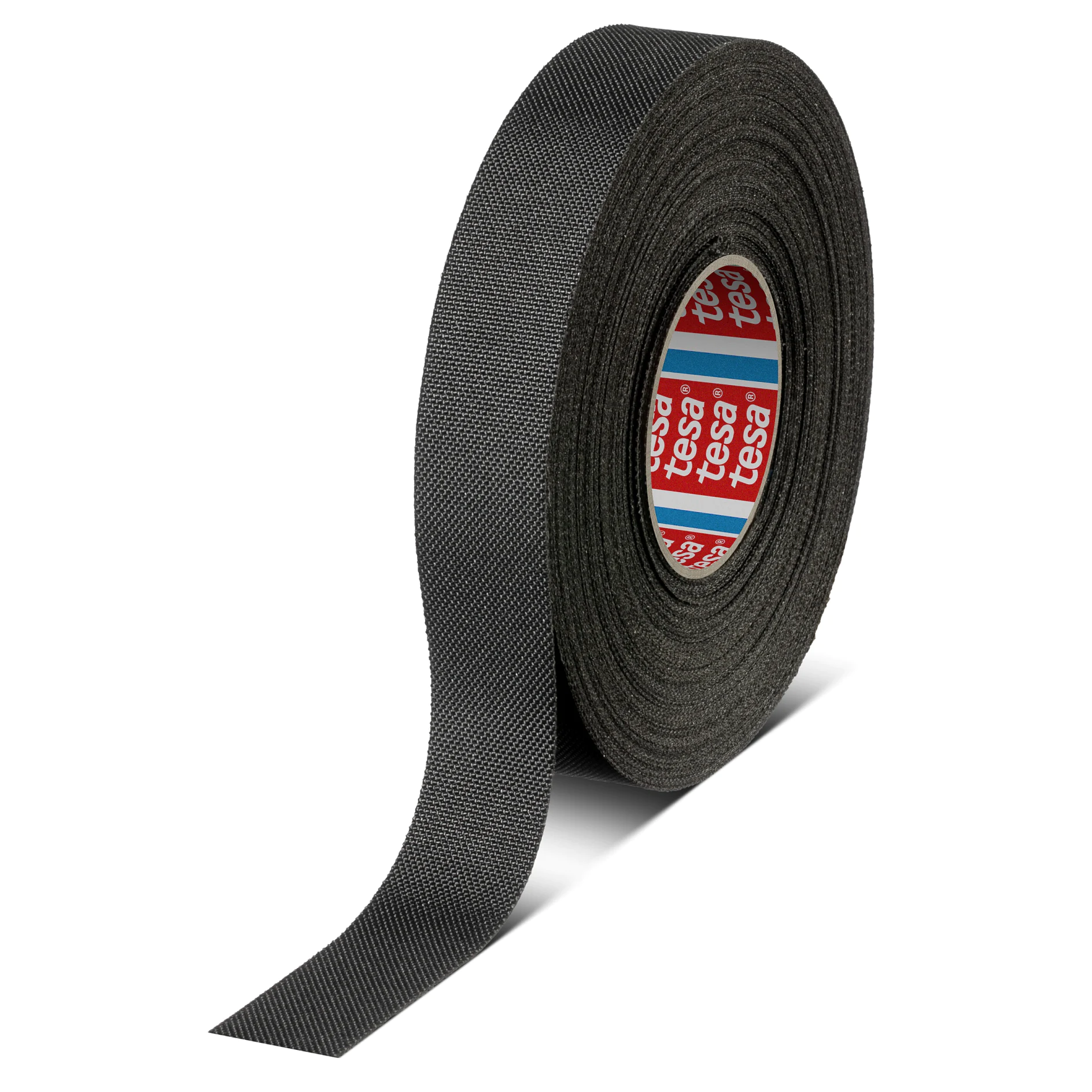

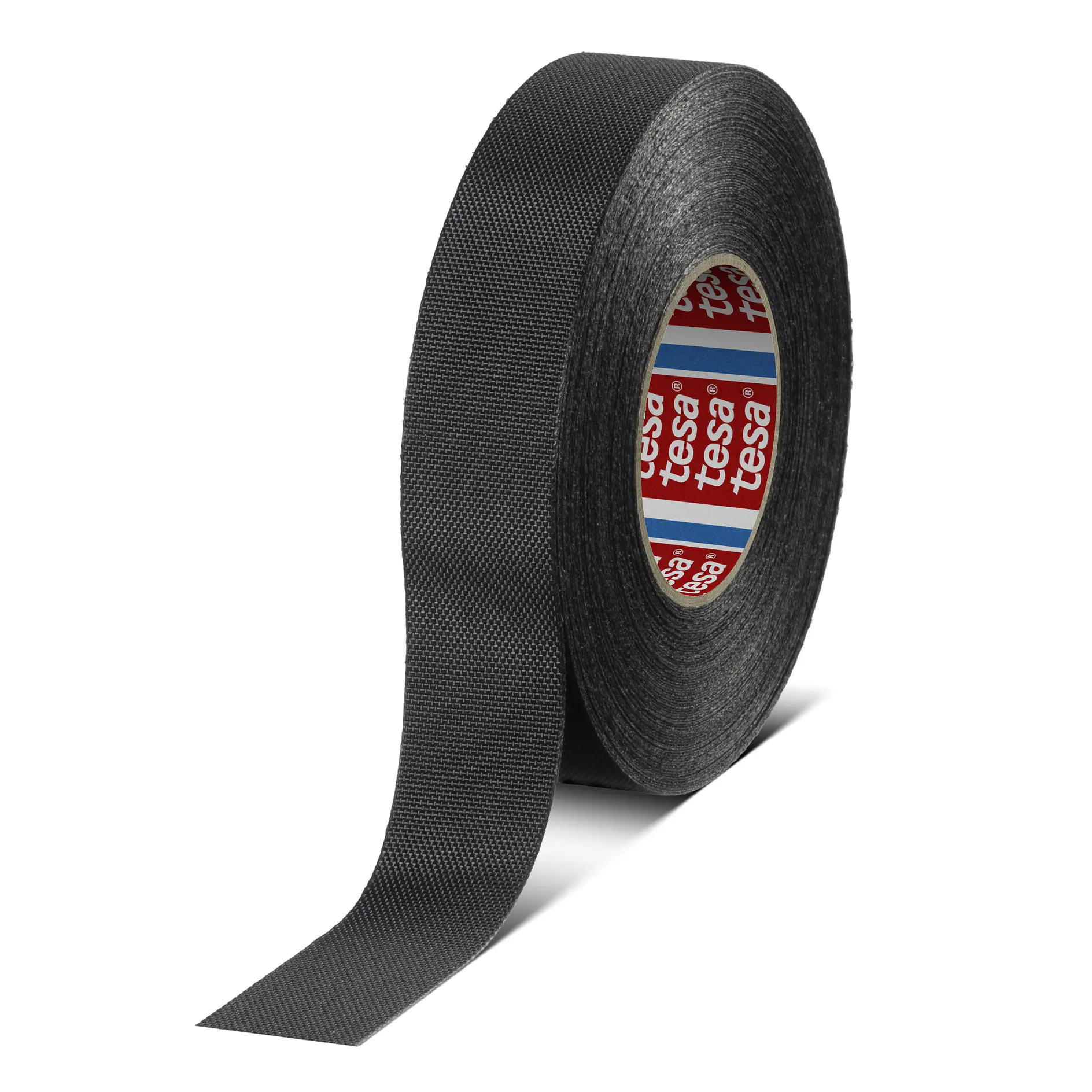

tesa® 69000
Product details and specifications
Product Construction
Adhesive Type | advanced acrylic |
---|---|
Backing material | PA cloth |
Total thickness | 350 µm |
Product Construction
Adhesive Type | advanced acrylic |
---|---|
Backing material | PA cloth |
Total thickness | 350 µm |
Properties / Performance Values
Elongation at break | 35 % |
---|---|
Tensile strength | 450 N/cm |
Unwind force (roll width < 9mm) | 4 N/roll (30 m/min) |
Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
Abrasion resistance (5mm mandrel, LV312) | Class E |
Temperature resistance min. | -40 °C |
Noise damping (LV312) | Class A |
Temperature resistance max. | 125 °C |
Abrasion resistance (10mm mandrel, LV312) | Class E |
Properties / Performance Values
Elongation at break | 35 % |
---|---|
Tensile strength | 450 N/cm |
Unwind force (roll width < 9mm) | 4 N/roll (30 m/min) |
Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
Abrasion resistance (5mm mandrel, LV312) | Class E |
Temperature resistance min. | -40 °C |
Noise damping (LV312) | Class A |
Temperature resistance max. | 125 °C |
Abrasion resistance (10mm mandrel, LV312) | Class E |
Adhesion to Values
Adhesion to Steel | 3.5 N/cm |
---|
Adhesion to Values
Adhesion to Steel | 3.5 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
