Product information

tesa® 51006



Product description

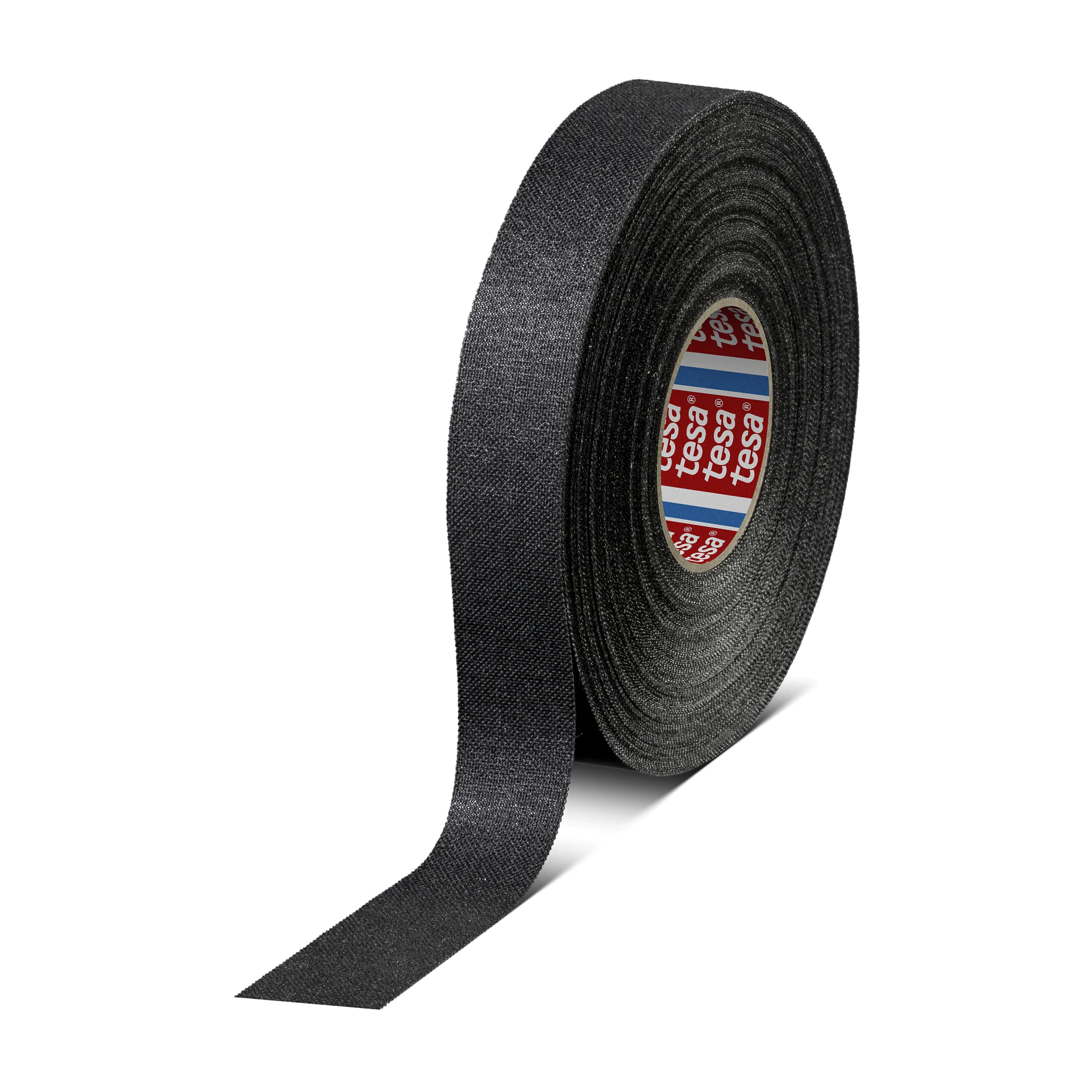

tesa® 51006 is a PET cloth wire harness tape with a rubber based adhesive.

Major Features:
  • High temperature resistance 150°C/3000h
  • Abrasion resistant
  • Strong adhesion

Color: Available in black

Main applications

tesa® 51006 is designed for the engine compartment, providing abrasion protection.
tesa_51006_pr_001_fullsize

tesa_51006_pr_001_fullsize

Technical properties

Backing material

PET cloth

Total thickness

320 µm

Type of adhesive

rubber based

Adhesion to steel

4.5 N/cm

Elongation at break

22 %

Tensile strength

175 N/cm

Temperature resistance min.

-40 °C

Temperature resistance (3000h)

150 °C

Abrasion resistance (10mm mandrel)

Class C (acc. to LV312)

Abrasion resistance (5mm mandrel)

Class B (acc. to LV312)

Flame resistance as composite

Class B (acc. to LV312)

Unwind force (roll width ≤ 9mm)

6 N/roll (30 m/min)

Unwind force (roll width > 9mm)

10 N/roll (30 m/min)

Noise damping (decibel)

Class A (acc. to LV312)

Additional Info

  • Technical data acc. to LV 312
  • Applicable for red ring assembly aid

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
