tesa® 60403

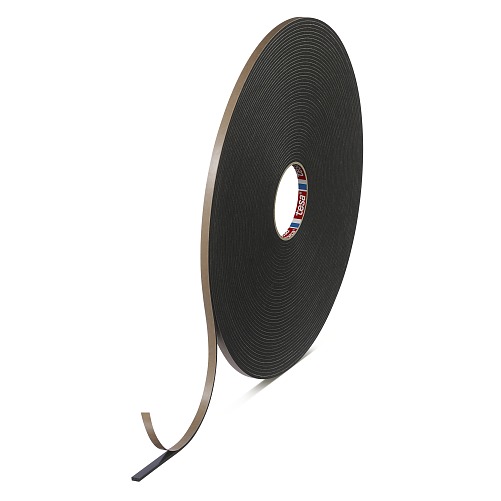

tesa ® 60403 Hard grade PVC closed cell double sided foam tape 3.2mm thick (black). Ideal for use in the glazing market
Product description
tesa 60403 is a 3.2mm hard grade closed cell PVC foam tape with an acrylic adhesive on both sides. The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces. The higher density foam has a greater resistance to water penetration than tesa 602 Series foam tapes, making it the ideal choice for sealing applications in the glazing market.
tesa 604 Series is resistant to fungi, oxidation, UV and ozone. It also complies with A.A.M.A.**810-85 type 1 and AS 2047.
Note: 604 Series is a glazing tape and is not suitable for bonding or mounting applications.
Product details and specifications
Application Fields
tesa 604 Series foam tape is an approved primary glazing seal for domestic and commercial glazing systems.
Application ideas:
Application ideas:
- Primary seal between the glass and metal frame in commercial and domestic windows and window walls
- Dampening vibrations between the metal frame and cladding in the transport industry
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Color | black |
| Liner Type | paper |
| Total thickness | 3200 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Color | black |
| Liner Type | paper |
| Total thickness | 3200 µm |
Properties / Performance Values
| Elongation at break | 160 % |
|---|---|
| Temperature resistance long term | 90 °C |
Properties / Performance Values
| Elongation at break | 160 % |
|---|---|
| Temperature resistance long term | 90 °C |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
