Product Construction
| Backing material | PVC / Nitrile foam |
| Total thickness | 3000 µm |
| Type of adhesive | type: acrylic |
tesa® 50601

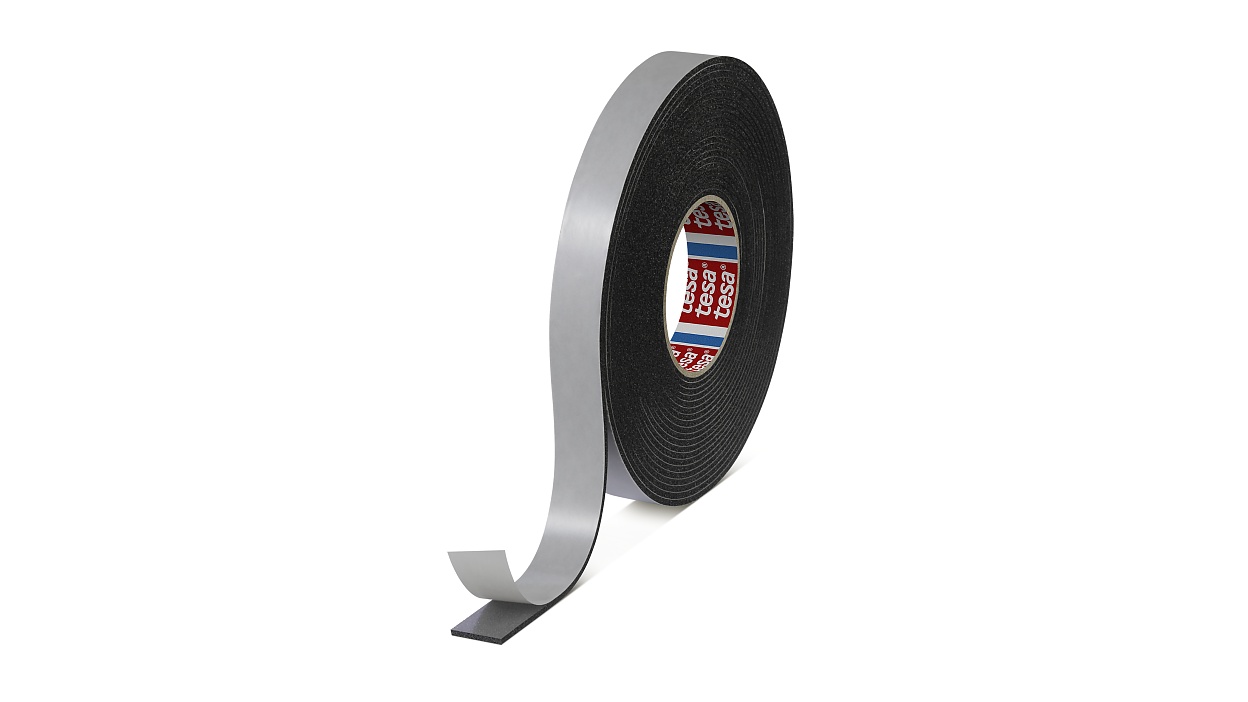

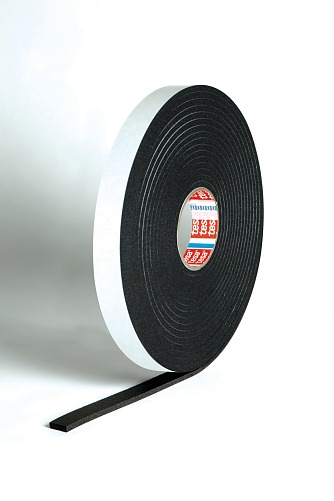

tesa ® 50601 Soft grade skinned PVC/Nitrile closed cell single sided foam tape 3mm thick (black)
Product description
tesa 50601 is a 3mm thick polyurethane closed cell foam tape with an acrylic adhesive on one side. The closed cell foam makes it suitable for sealing from dust and water while the acrylic adhesive allows for easy application to various surface materials.
tesa 5060 Series foam tape is soft and conformable, making it well suited for use on uneven surfaces. The robust foam is resistant to tearing and abrasion, and offers good resistance to high temperatures (-10°C to 80°C) and weathering. tesa 5060 Series is available in 3mm, 6mm, 9mm and 12mm thicknesses.
Product details and specifications
Application Fields
tesa 5060 Series foam tape is an ideal sealing solution for a wide range of enclosures, doors and hatches.
Application ideas:
Application ideas:

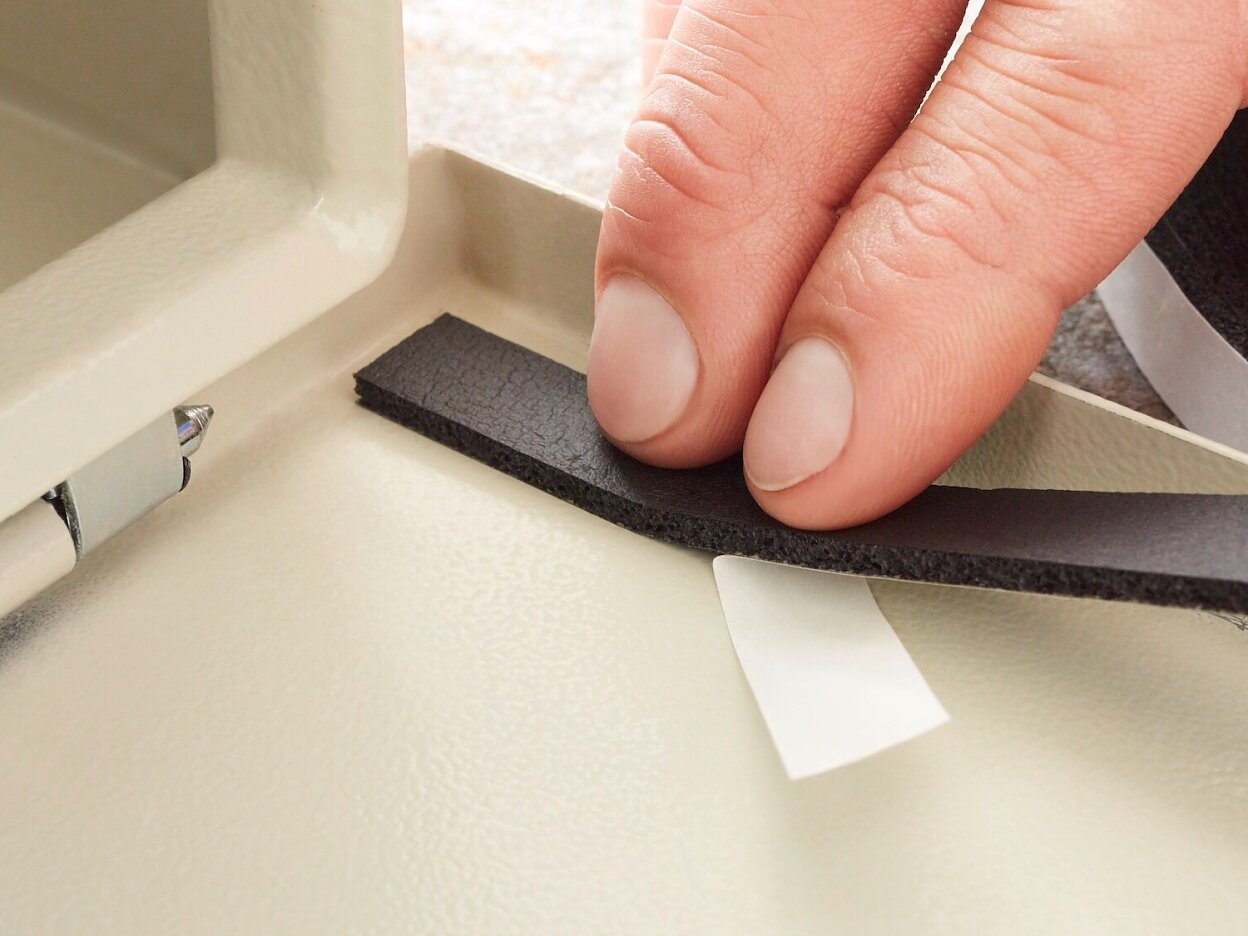

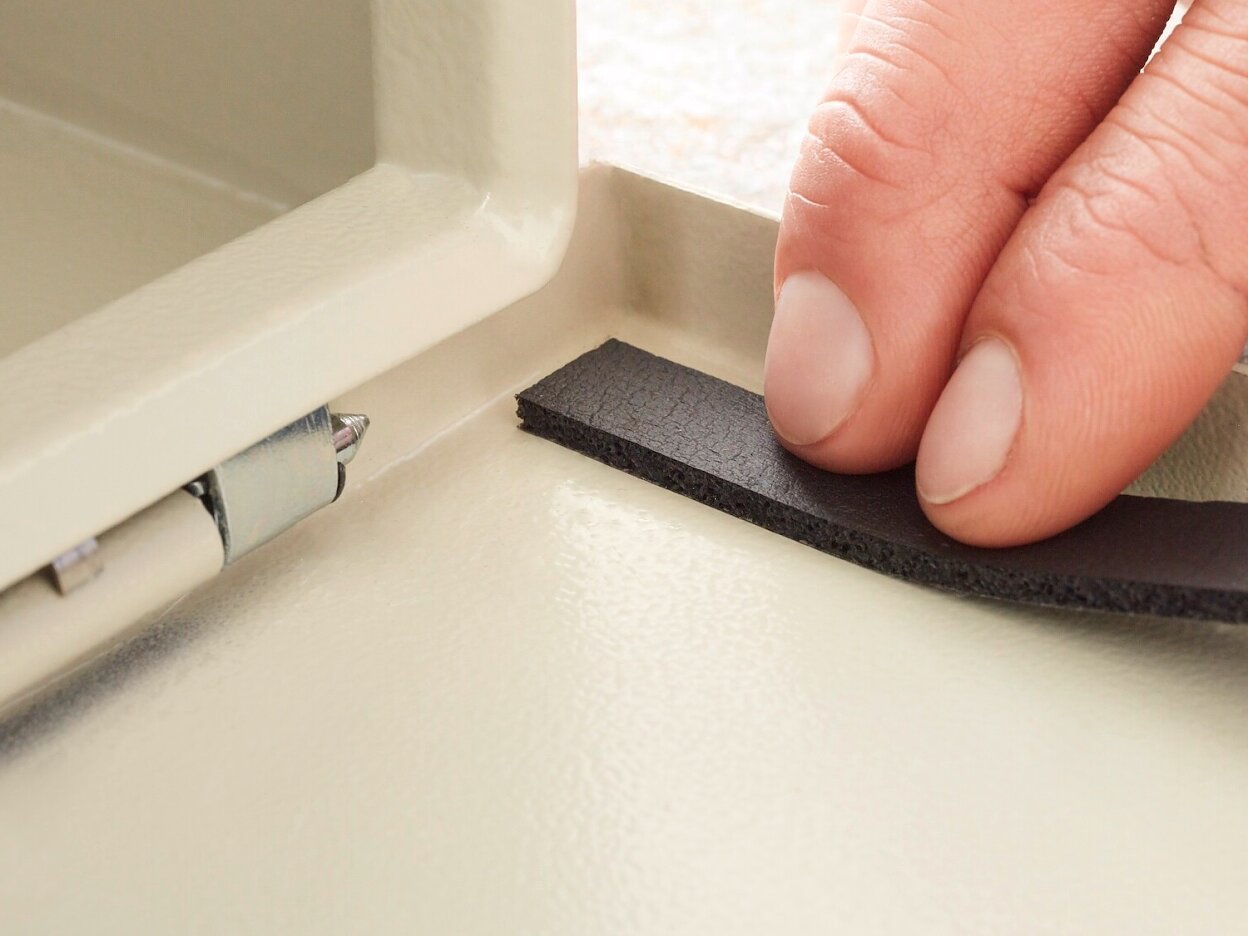

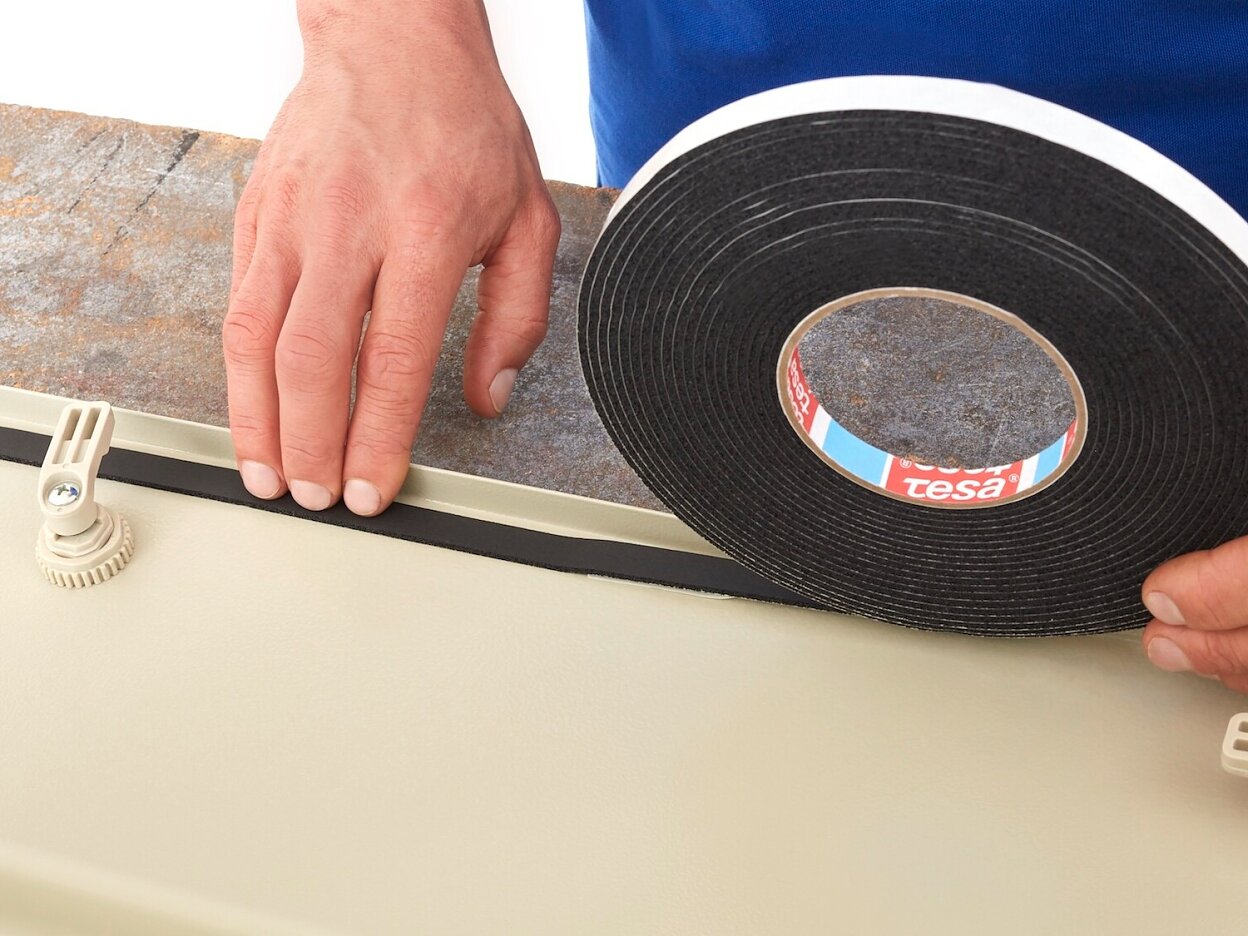

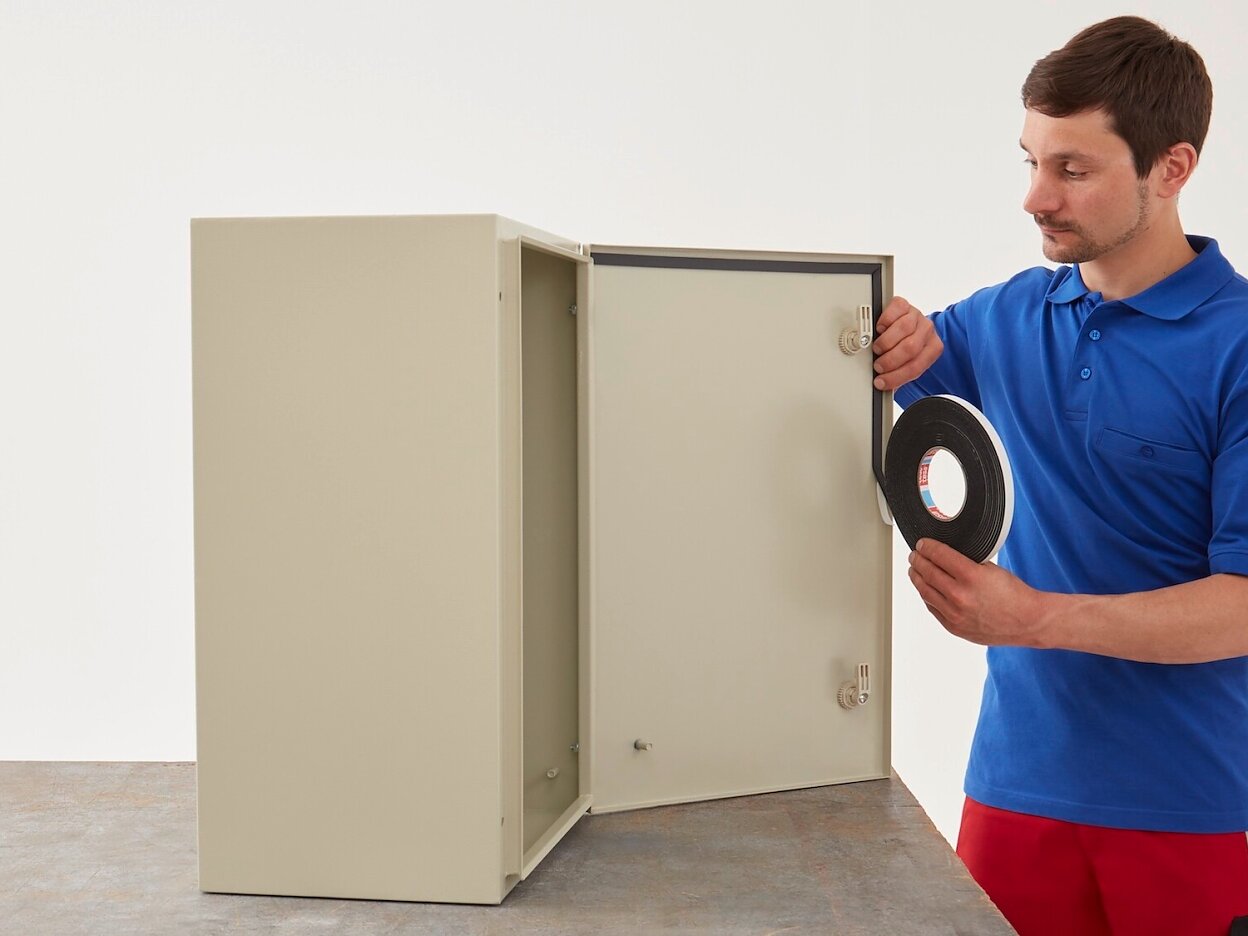

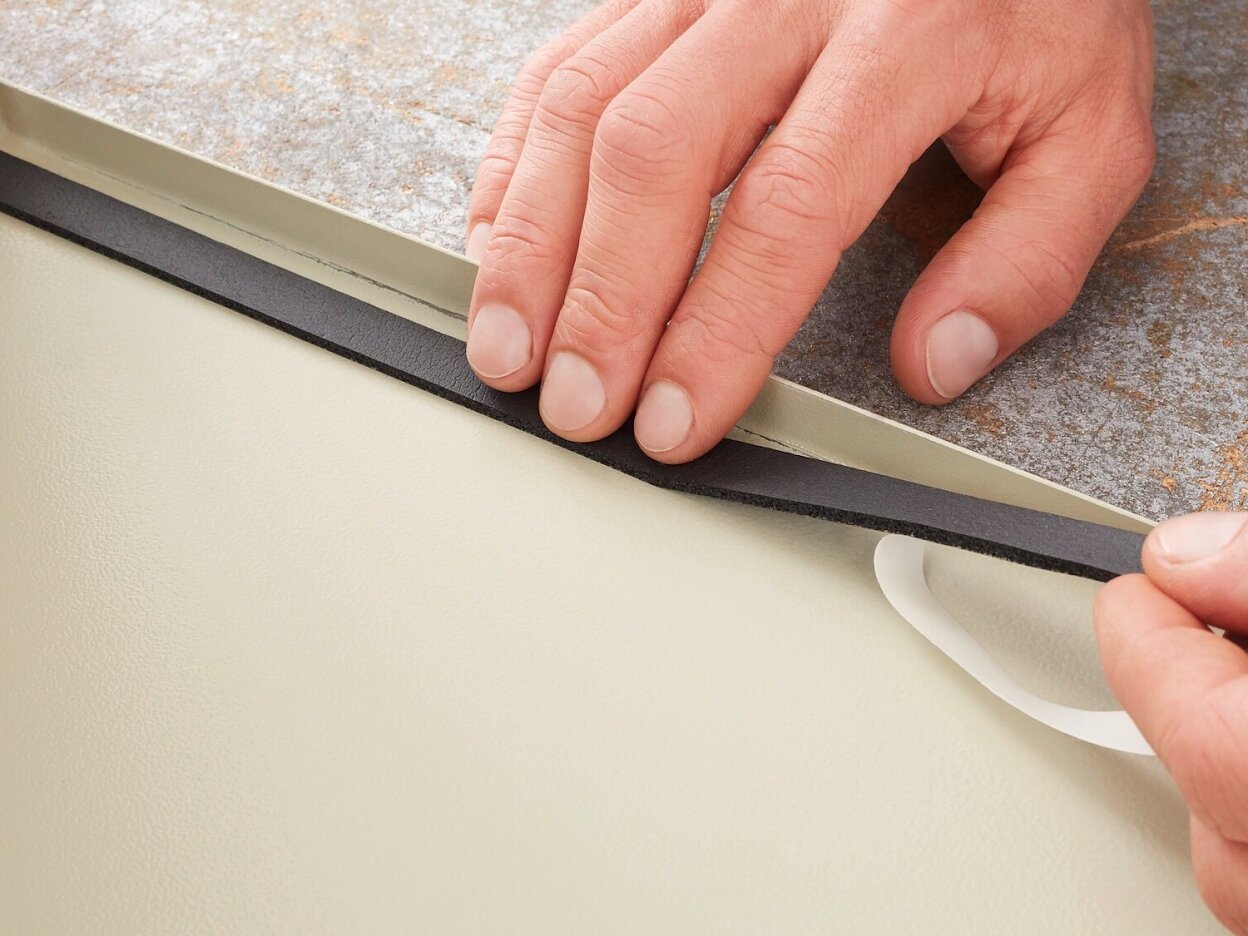

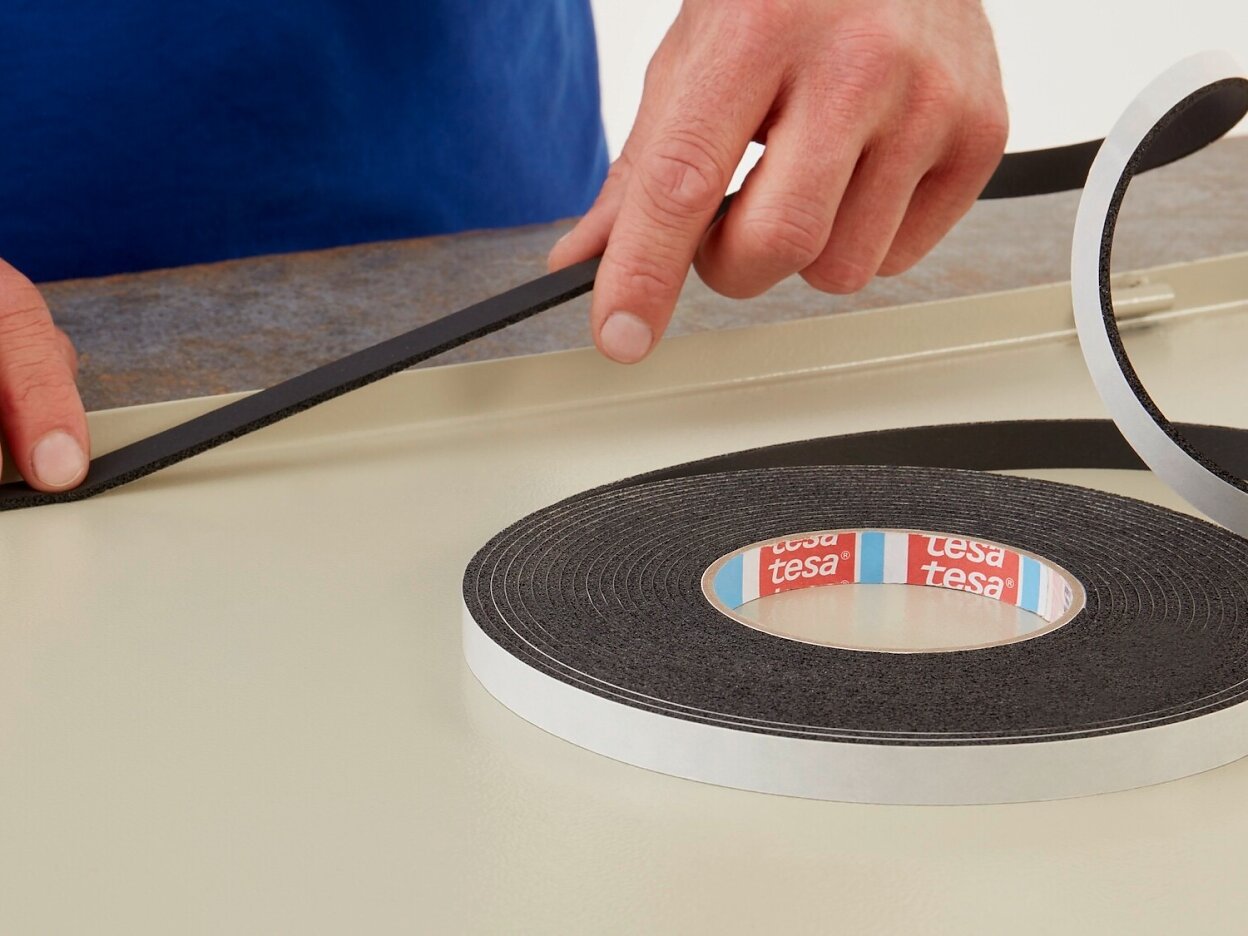

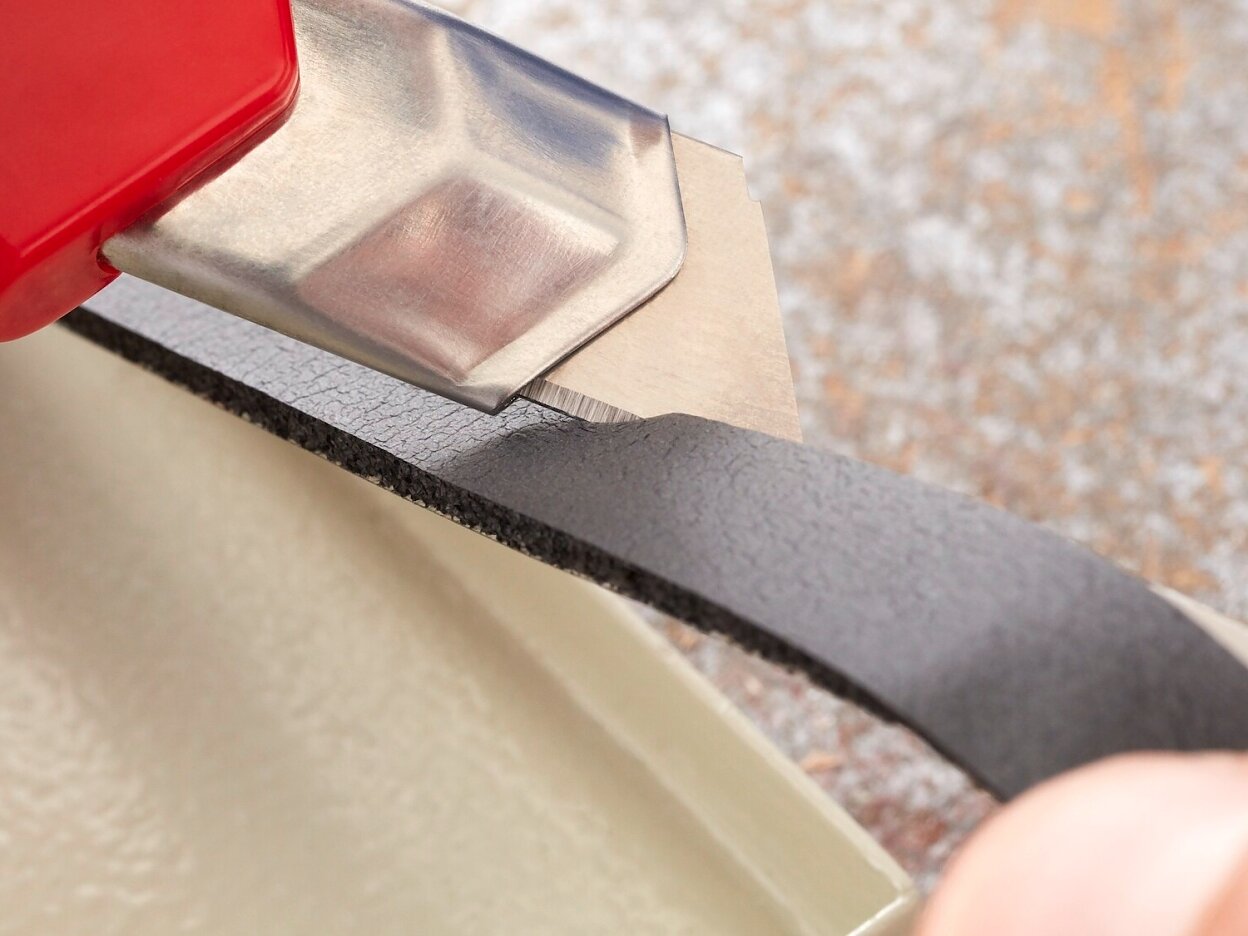

- Sealing electrical enclosures and switch cabinets
- Sealing industrial access doors and hatches
- Sealing hatches on boats
- Sealing externally mounted air conditioning equipment
- Pipe wrap insulation on both hot and cold pipes.
Product Construction
| Backing material | PVC / Nitrile foam |
| Total thickness | 3000 µm |
| Type of adhesive | type: acrylic |
Properties / Performance Values
| Suitable for die cutting | yes |
| Elongation at break | 200 % |
| Tensile strength | 30 N/cm |
| Temperature resistance min. | -10 °C |
| Temperature resistance max. | 80 °C |
| Interliner | yes |
| Flame retardance | very good |
| Water resistance | very good |
| Chemical resistance | good |
Properties / Performance Values
| Suitable for die cutting | yes |
| Elongation at break | 200 % |
| Tensile strength | 30 N/cm |
| Temperature resistance min. | -10 °C |
| Temperature resistance max. | 80 °C |
| Interliner | yes |
| Flame retardance | very good |
| Water resistance | very good |
| Chemical resistance | good |
Adhesion to Values
| Adhesion to Steel | 11 N/cm |
Adhesion to Values
| Adhesion to Steel | 11 N/cm |
Additional Info

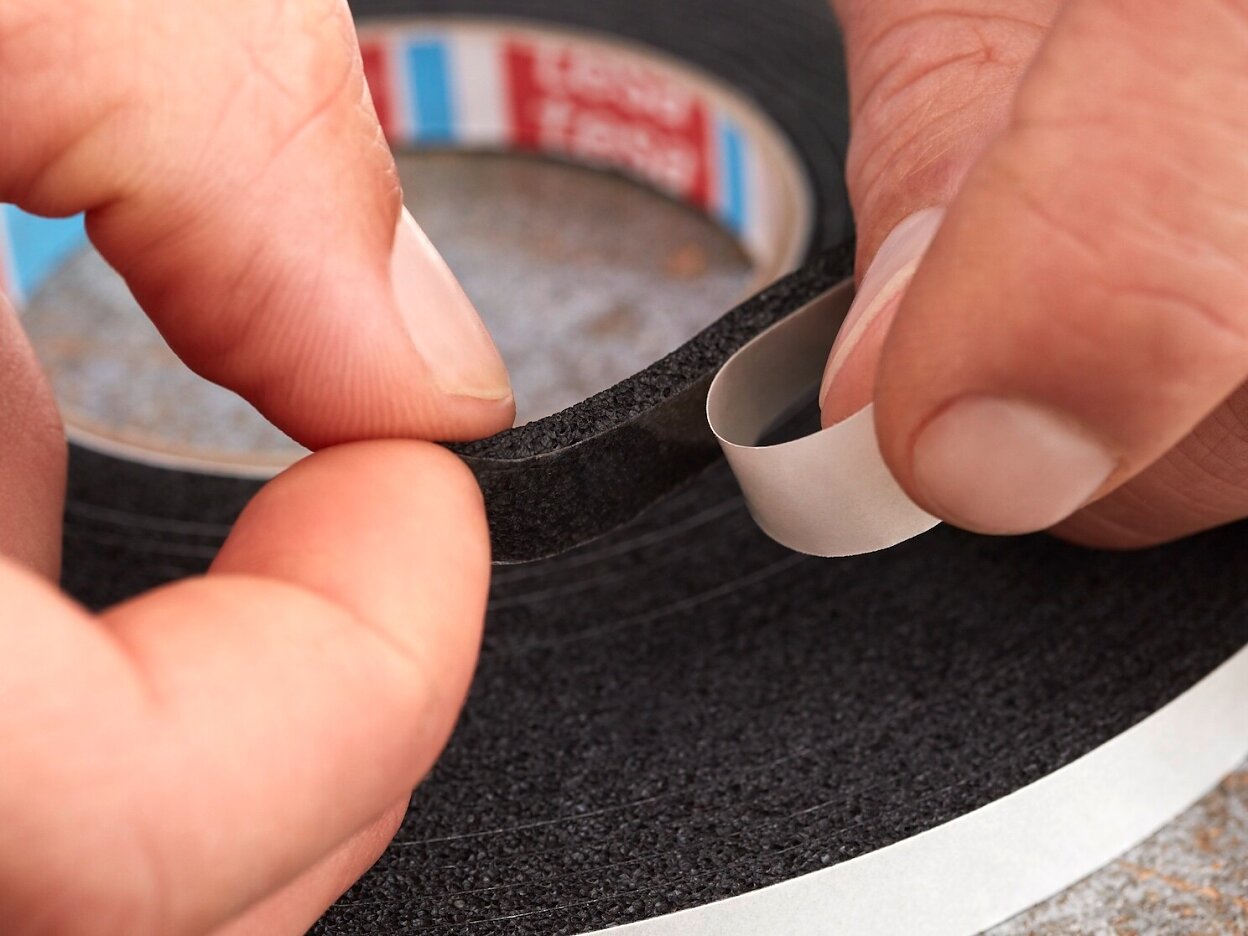

Foam compresses easily, is highly conformable and recovers quickly. Filmic interliner prevents stretch during application. Robust foam is tear and abrasion resistant. Good resistance to high temperature and weathering. Good thermal insulation properties. Availabe in die-cut pads and gaskets.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
