tesa® 66625
Product description

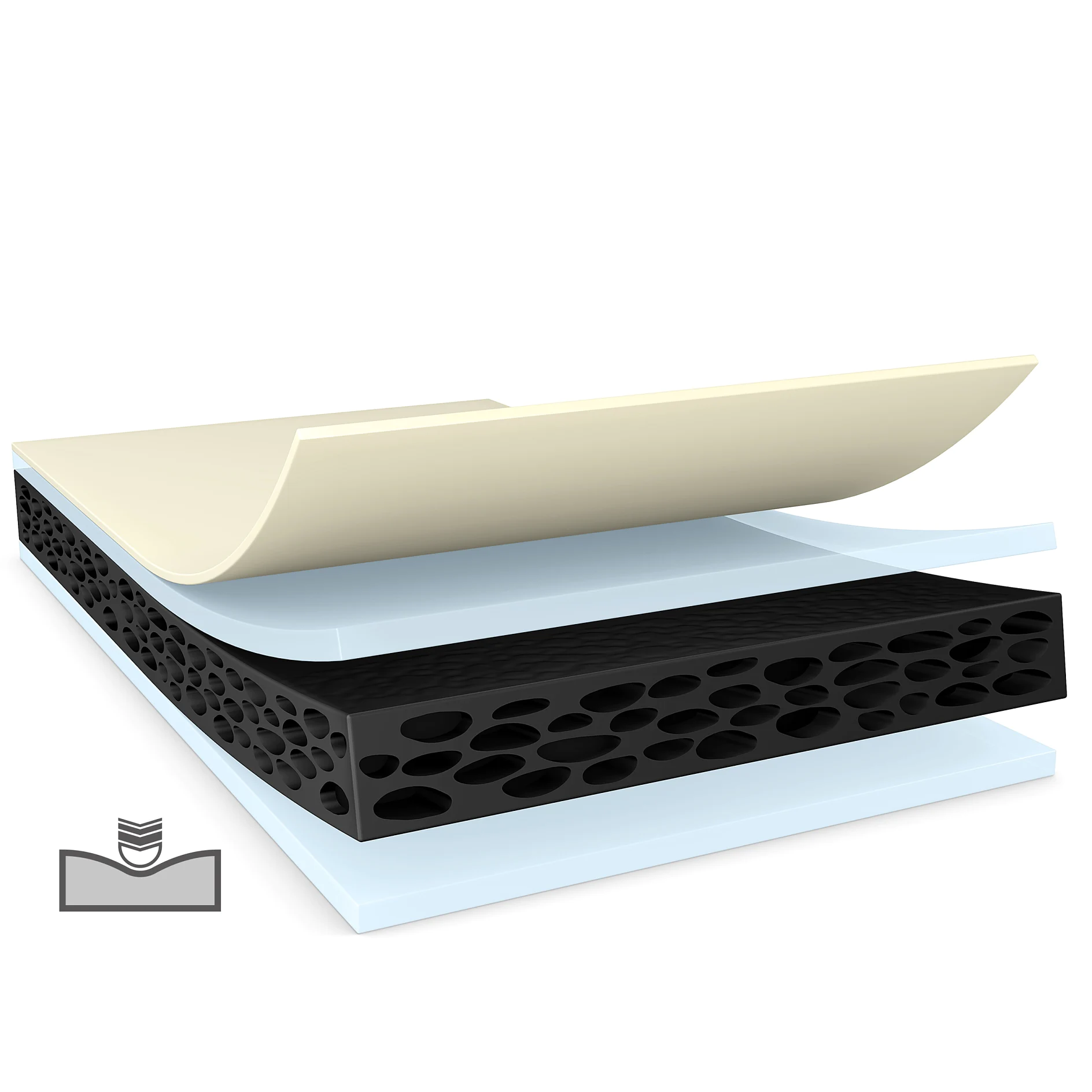

tesa® 66625 is a black double-sided tape consisting of a shock absorbing PE-foam backing equipped with a novel high shear resistance adhesive.
tesa® 66625 features :
- Excellent shear resistance and anti-lifting even under high temperature and high humidity
- Easy activation under limited pressure condition
- Superior push out strength by different substrates
- Outstanding shock performance
- Waterproofness
- Good rework ability and die cut ability
Product details and specifications
Product Construction
| Backing material | PE foam |
|---|---|
| Color | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 250 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PET |
Product Construction
| Backing material | PE foam |
|---|---|
| Color | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 250 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PET |
Properties / Performance Values
| Elongation at break | 270 % |
|---|---|
| Tensile strength | 14 N/cm |
| Static shear resistance at 40°C | very good |
| Ageing resistance (UV) | good |
| Humidity resistance | good |
Properties / Performance Values
| Elongation at break | 270 % |
|---|---|
| Tensile strength | 14 N/cm |
| Static shear resistance at 40°C | very good |
| Ageing resistance (UV) | good |
| Humidity resistance | good |
Adhesion to Values
| Adhesion to ABS (initial) | 10.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 12.5 N/cm |
| Adhesion to Glass (initial) | 10.4 N/cm |
| Adhesion to Glass (after 14 days) | 11 N/cm |
| Adhesion to PC (initial) | 12 N/cm |
| Adhesion to PC (after 14 days) | 14.5 N/cm |
| Adhesion to PE (initial) | 5 N/cm |
| Adhesion to PE (after 14 days) | 5.3 N/cm |
| Adhesion to PMMA (initial) | 12.3 N/cm |
| Adhesion to PMMA (after 14 days) | 13.3 N/cm |
| Adhesion to Steel (initial) | 10.5 N/cm |
| Adhesion to Steel (after 14 days) | 11 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 10.5 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 12.5 N/cm |
| Adhesion to Glass (initial) | 10.4 N/cm |
| Adhesion to Glass (after 14 days) | 11 N/cm |
| Adhesion to PC (initial) | 12 N/cm |
| Adhesion to PC (after 14 days) | 14.5 N/cm |
| Adhesion to PE (initial) | 5 N/cm |
| Adhesion to PE (after 14 days) | 5.3 N/cm |
| Adhesion to PMMA (initial) | 12.3 N/cm |
| Adhesion to PMMA (after 14 days) | 13.3 N/cm |
| Adhesion to Steel (initial) | 10.5 N/cm |
| Adhesion to Steel (after 14 days) | 11 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
