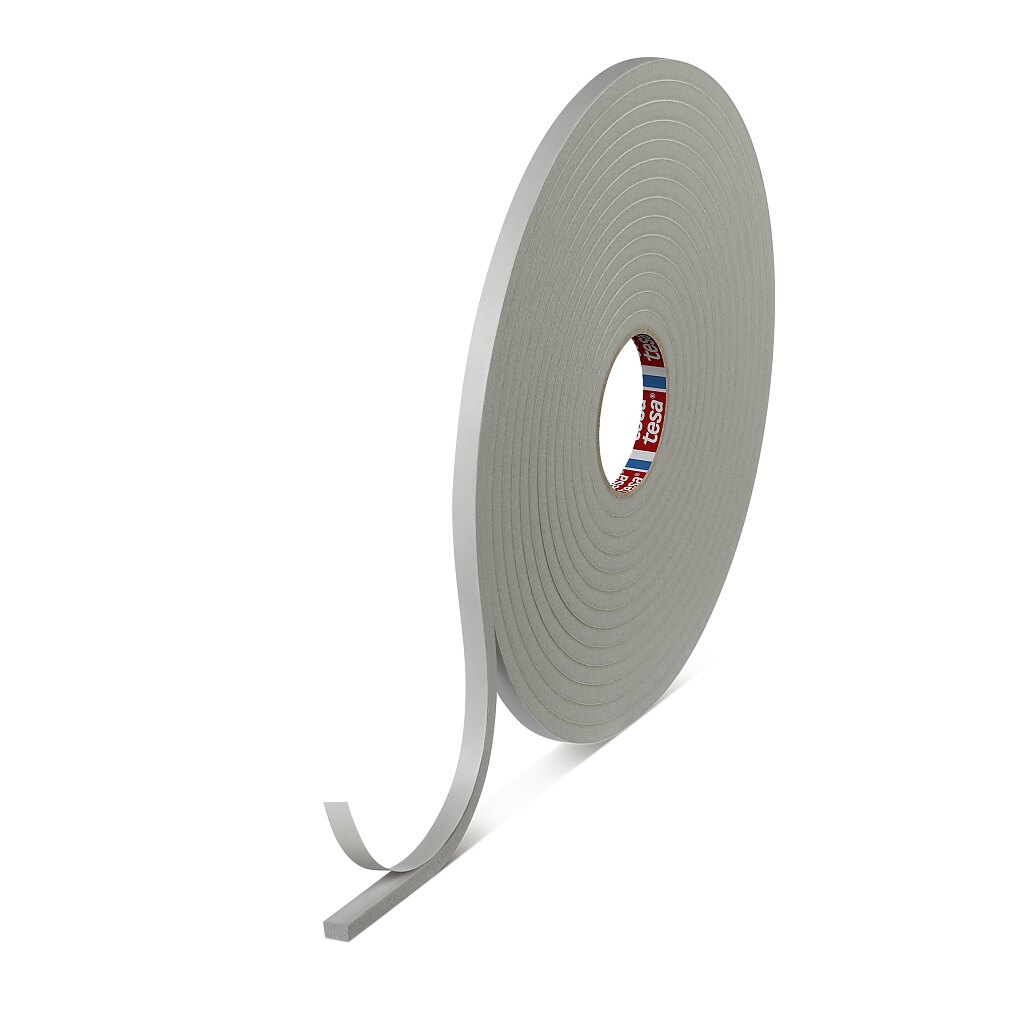

tesa® 60209

Product Construction

Type of adhesive acrylic
Total thickness 9500 µm
Backing material PVC foam

Properties / Performance Values

Elongation at break 130 %
Compression set 2 %
Temperature resistance max. 90 °C
Temperature resistance min. -35 °C
Suitable for die cutting Yes
Hardness - Shore 00 28 STK
Tensile strength cm2 34 N/cm²

Adhesion to Values

Adhesion to steel 2.8 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
