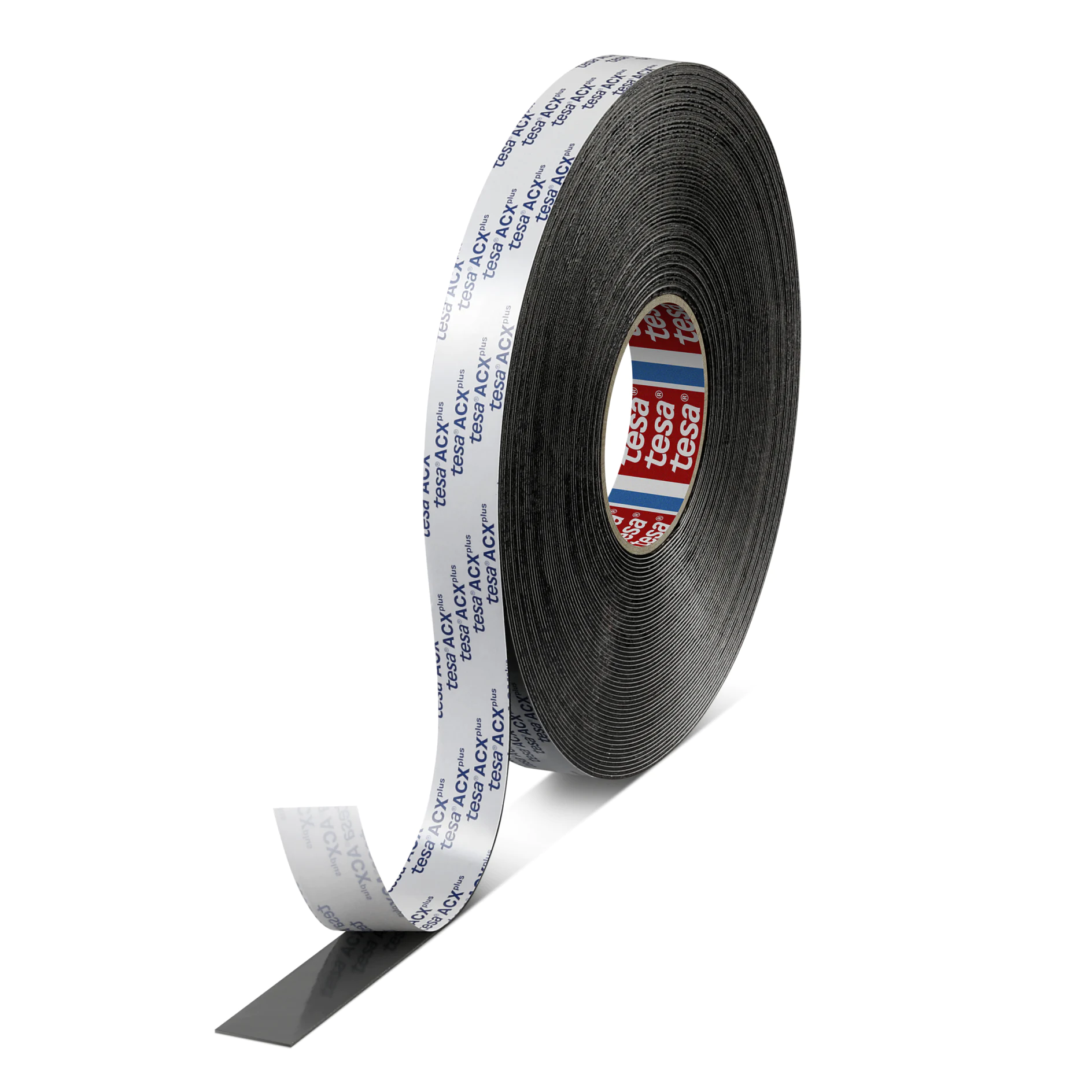

tesa® ACX^plus 7065

heavy-duty double-sided tape

Product Features

Adhesive coating on both sides for excellent visco-elasticity
Excellent for “gap filling” applications
Immediate tack and peel adhesion

All product features

Product description

Double-sided tapes also known as double-coated tapes or double-faced tapes have pressure-sensitive adhesive exposed on both sides which allow two parts to be bonded together. The tesa® ACX^plus 7065 is a double-sided acrylic foam tape that is meant for heavy-duty purposes, providing greater cohesive strength for demanding bonding applications. This double-sided tape consists of a high-performance acrylic system and is primarily characterized by its strong bonding power, stress dissipation and its temperature and weather resistance, making it the ideal choice for bonding, holding, mounting, splicing, and packaging applications. Due to its unique formulation, this heavy-duty double-sided tape combines a very high adhesion level with a very good resistance against plasticizer migration. It is especially designed for the bonding of “hard-to-bond-materials” such as powder coatings or plastic materials. Even for combinations of such materials with all kind of metals, or metal/metal bonding, it offers a convenient solution due to high process safety.

Product details and specifications

Product Features

Adhesive coating on both sides for excellent visco-elasticity
Excellent for “gap filling” applications
Immediate tack and peel adhesion
Able to bond to unusual, non-uniform, or highly patterned and textured surfaces

Application Fields

Bonding of hard-to-bond materials such as bumper rails, powder coated blades and panels and air distributaries. Replacing rivets and fasteners used in the automotive industry
Securing and holding carpets in place for major events or trade shows
Attaching foam to wall panels or flooring underlayment
Exemplary mounting applications in different industries such as elevator, extruder, transportation, appliances, interior fit-out E.g. Bumper rails, decorative elements, trims & profiles, reinforcement bars and more)

Adhesive Type	tackified acrylic
Backing material	foamed acrylic
Color	black
Total thickness	1200 µm

Adhesive Type	tackified acrylic
Backing material	foamed acrylic
Color	black
Total thickness	1200 µm

Adhesion to Steel (after 3 days)	48 N/cm

Adhesion to Steel (after 3 days)	48 N/cm

For more technical data please click on the following link to open our technical information sheet:
https://www.tesa.com/ACXplus/TI-sheet
The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACX^plus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation.
Liner options:

PV22: White paper liner – branded
PV24: Blue film liner – unbranded

Certificates:

tesa^® ACX^plus 7065 is recognized according to UL Standard 746C. UL File QOQW2.E309290
tesa^® ACX^plus 7065 is recognized according to UL Standard 879. UL File UYMR2.E479260
Qualified for a credit according to LEED

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Safety data sheet_tesa® ACX^plus 07063_en-IN_v14 202.2 kB Product information_tesa® 07065_en-IN 64.7 kB

Product comparison

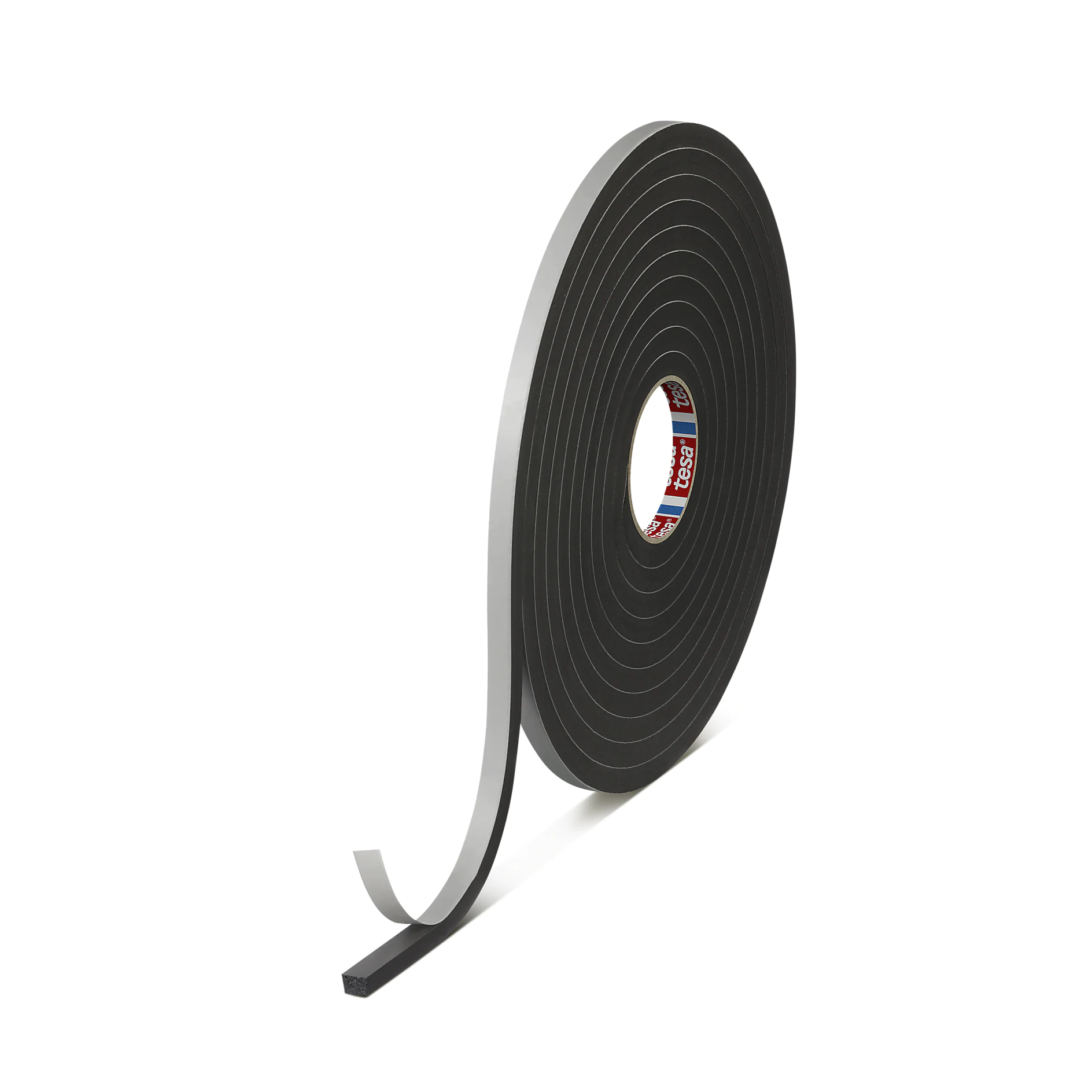

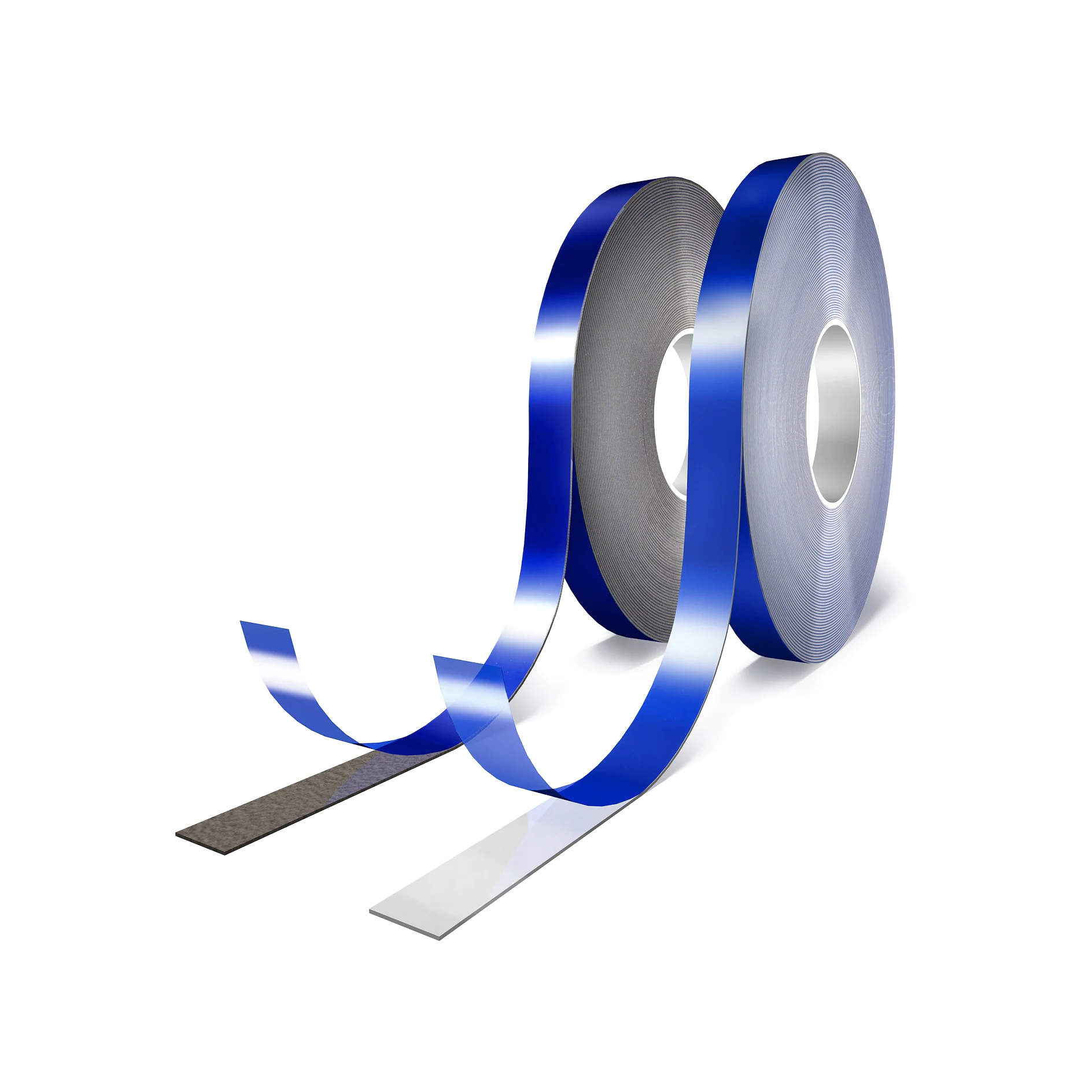

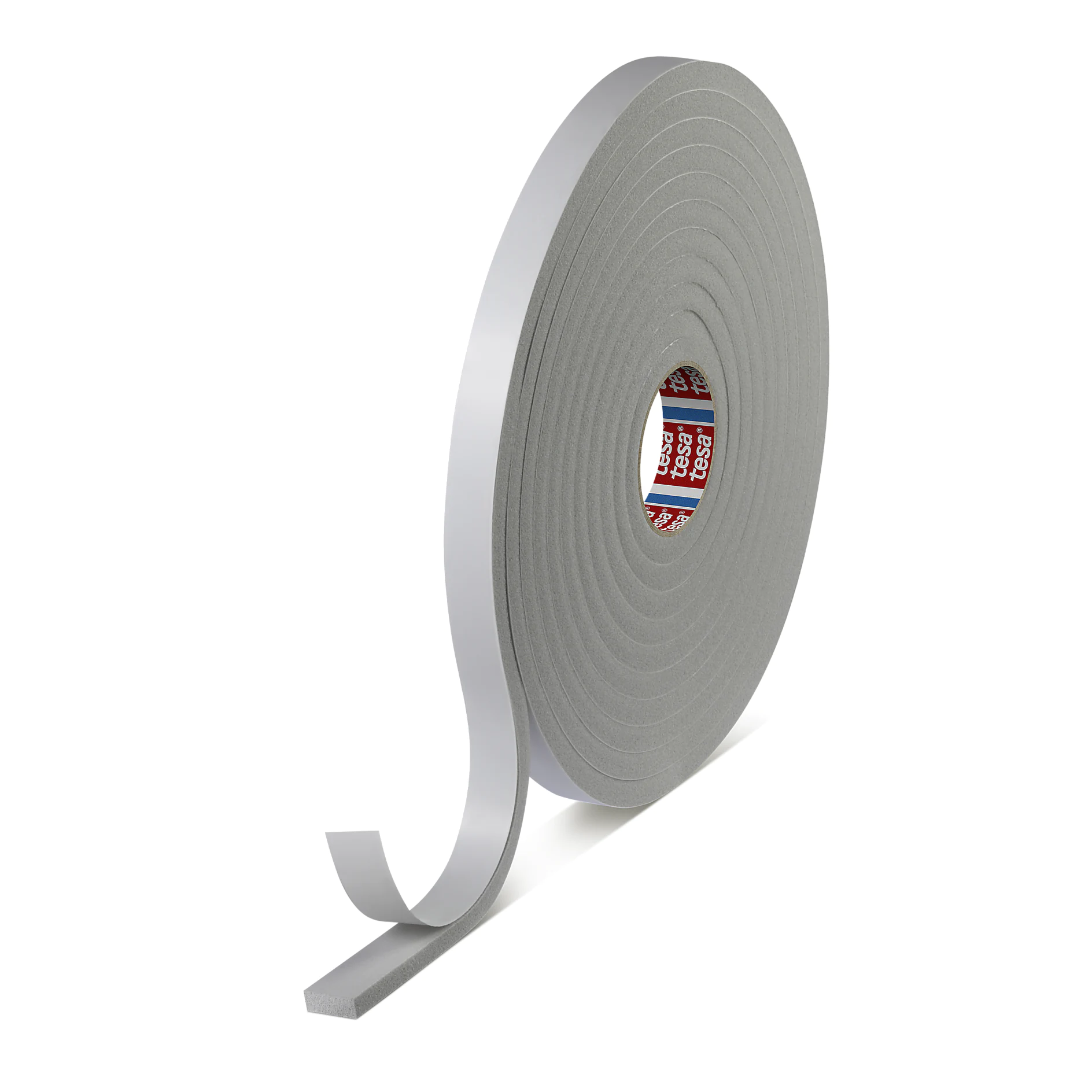

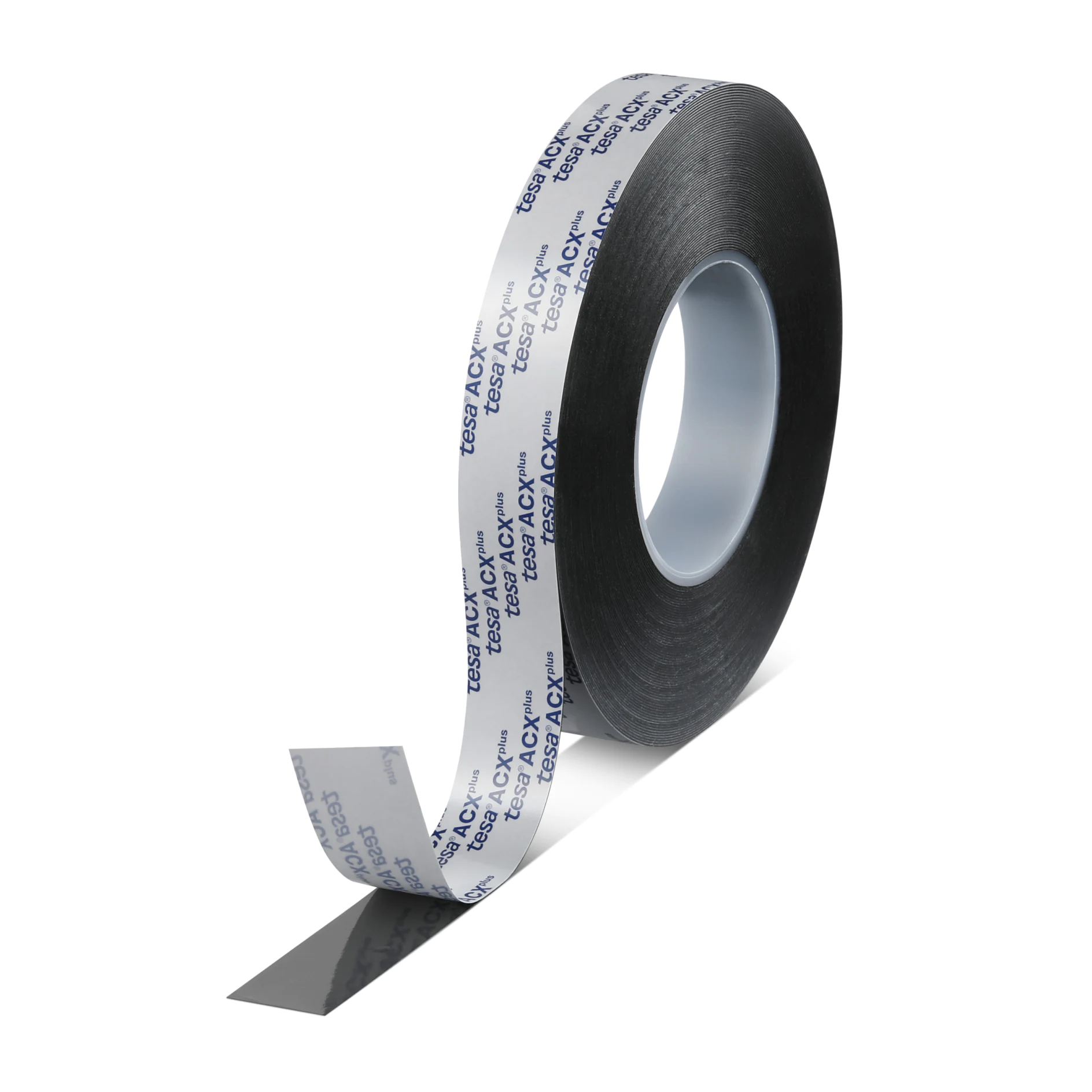

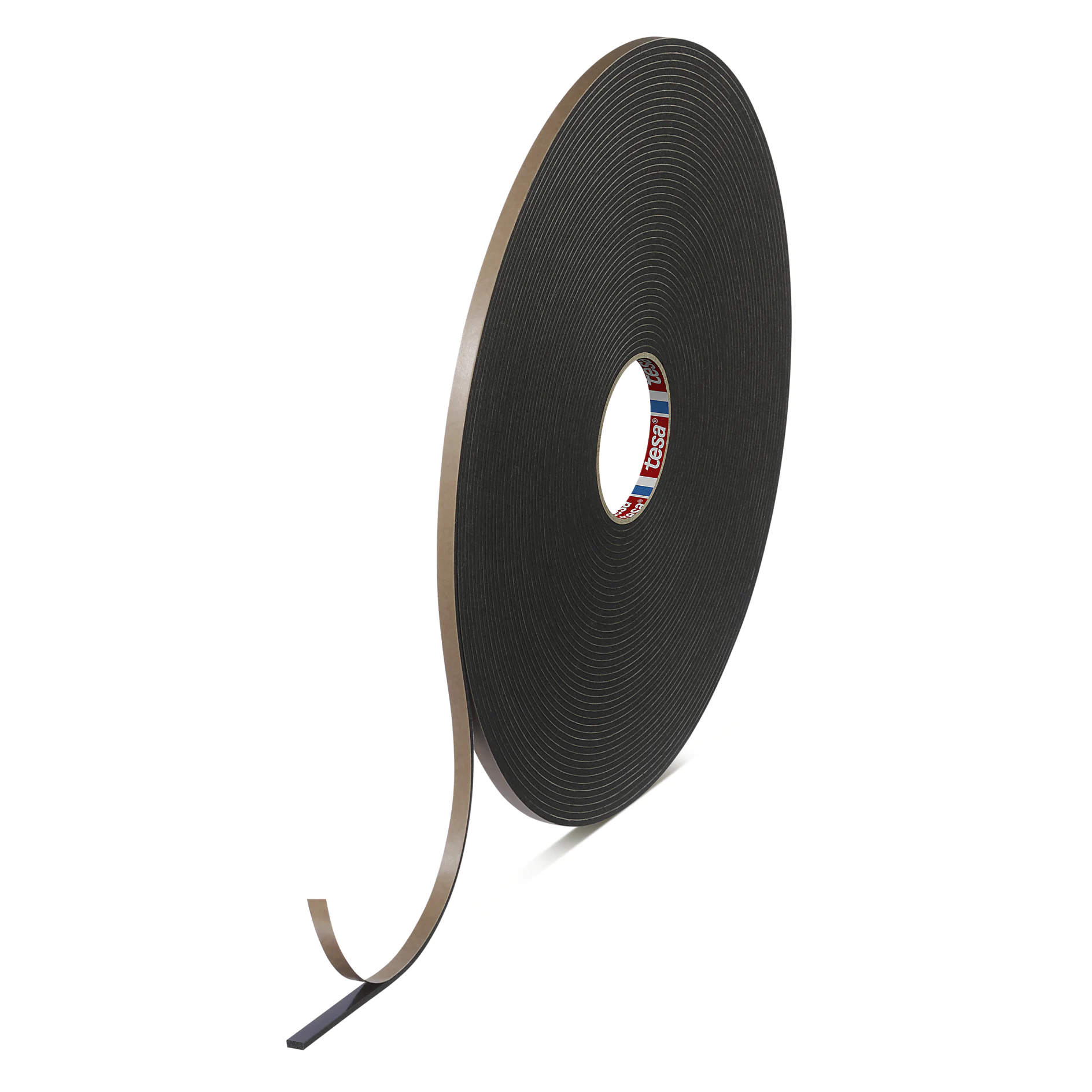

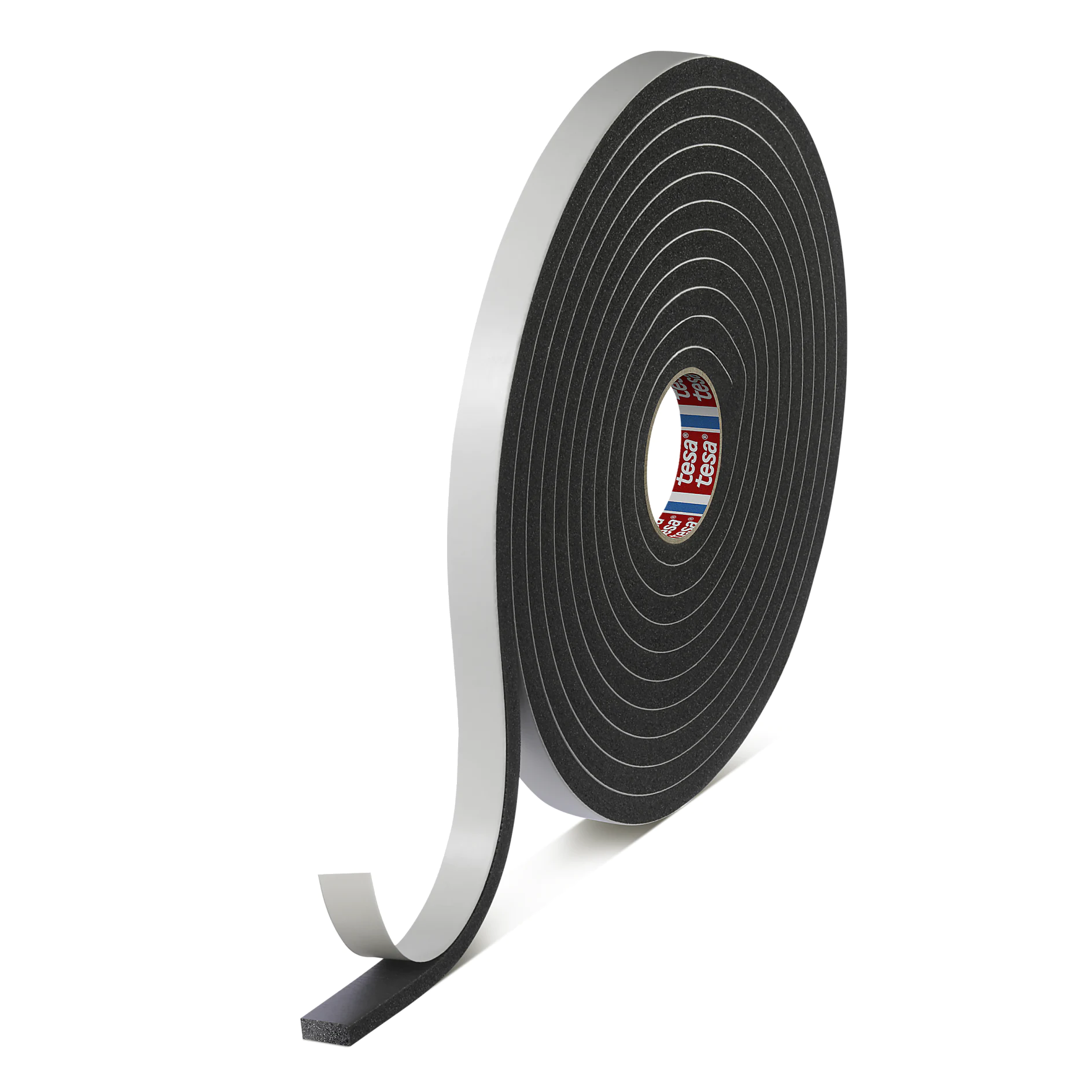

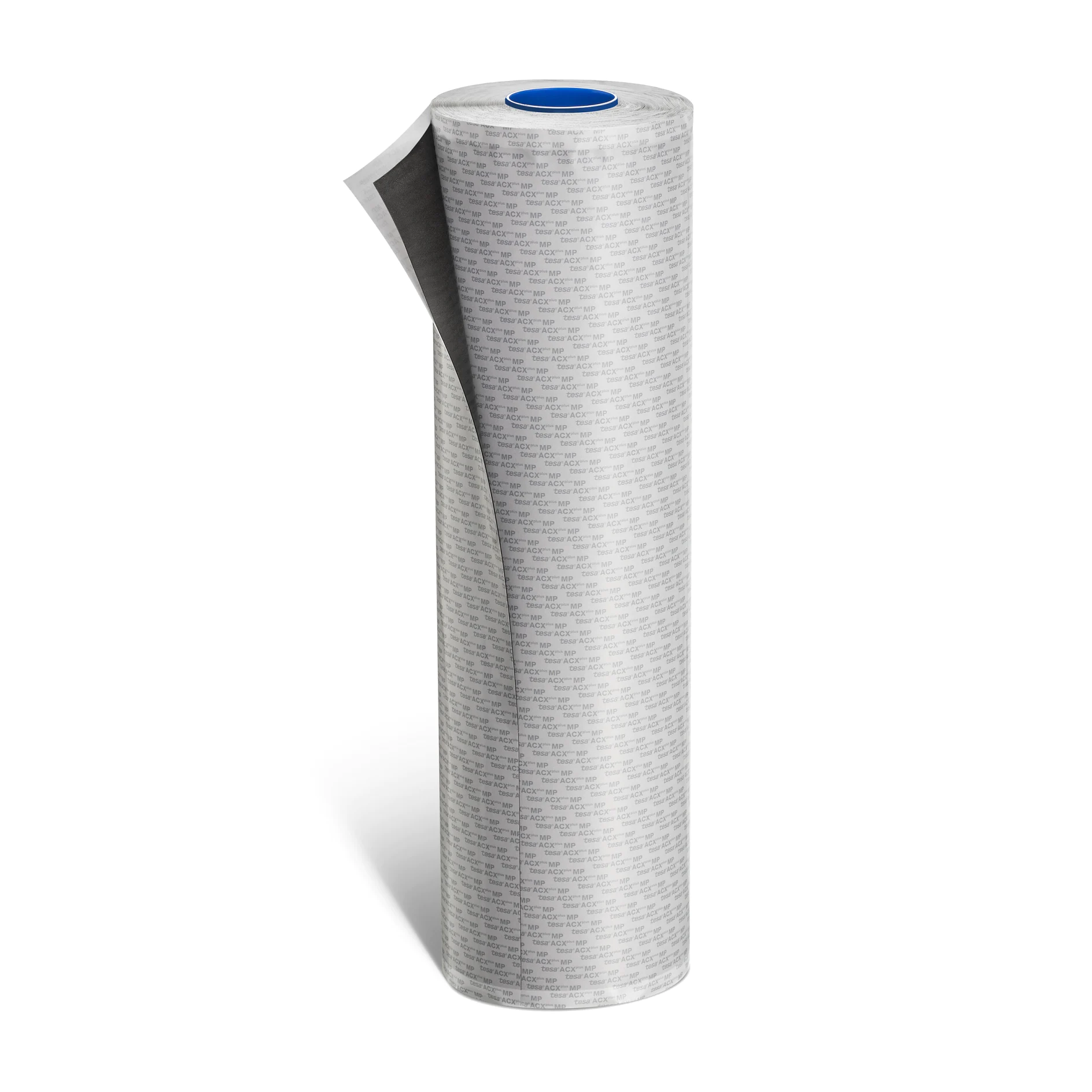

Name of product	tesa® ACXplus 7065	tesa® ACXplus 7044	tesa® ACXplus 7072	tesa® ACXplus 7283 Multi Purpose (MP)	tesa® 61115	tesa® 60112 Grey	tesa® 61116	tesa® 60406	tesa® 60112 Black	tesa® 61106	tesa® 60403
Total thickness	1200 µm	1000 µm	500 µm	800 µm	9500 µm	12700 µm	12700 µm	6400 µm	12700 µm	12700 µm	3200 µm
Adhesive Type	tackified acrylic	pure acrylic	pure acrylic	foamed acrylic blend	natural rubber	acrylic	natural rubber	acrylic	acrylic	acrylic	acrylic
Backing material	foamed acrylic	filled acrylic	foamed acrylic	foamed acrylic	Neoprene rubber foam	PVC foam	Neoprene rubber foam	PVC foam	PVC foam	EPDM rubber foam	PVC foam
Color	black		black	black				black			black
