tesa® 88010 Optically Clear Adhesive

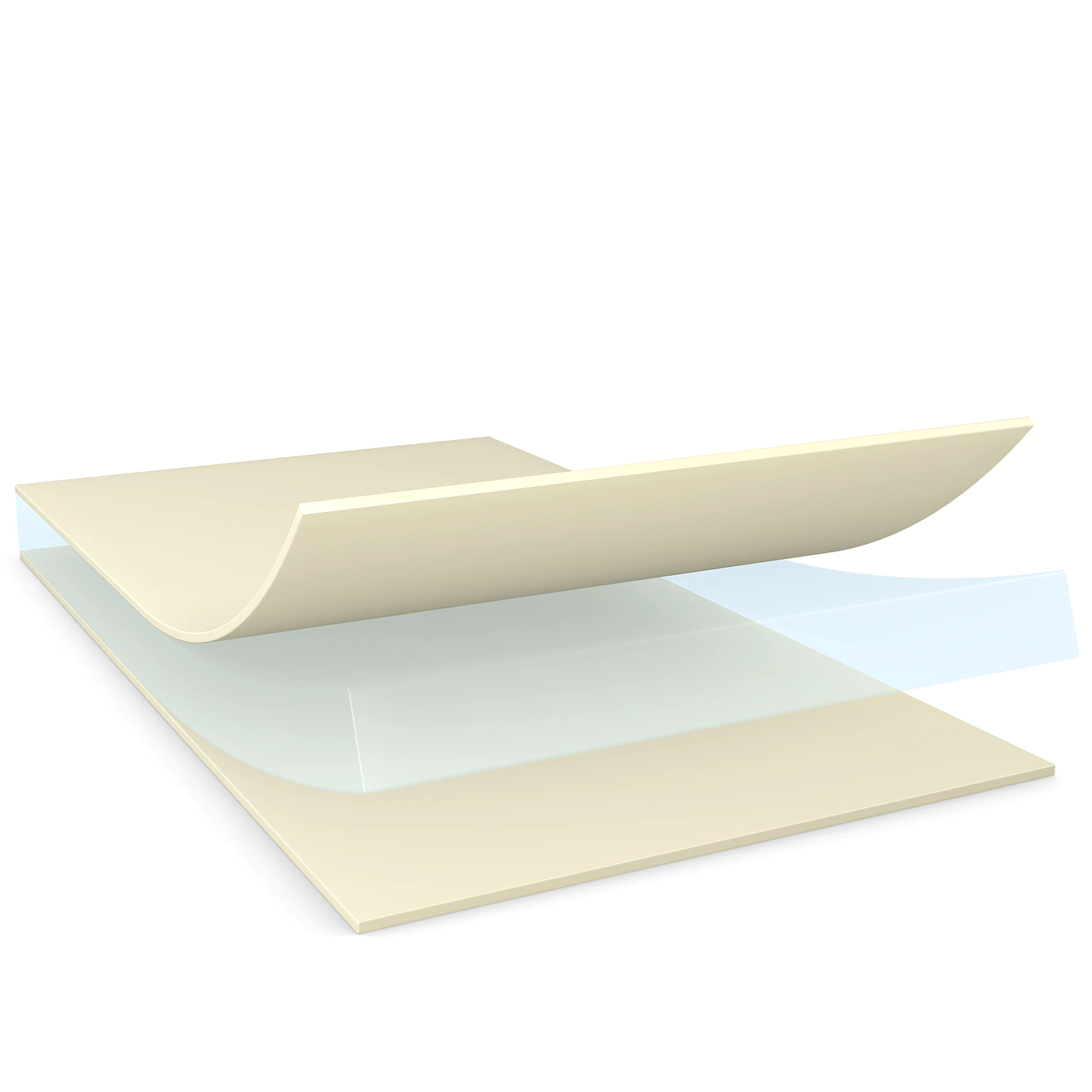

tesa-electronics-optically-clear-adhesive-with-transparent-double-liner-product-illustration

Product details and specifications

Product Construction

Adhesive Type acrylic
Backing material none
Color transparent
Color of liner transparent
Liner Type PET
Thickness of easy release liner 75 µm
Thickness of tight release liner 100 µm
Total thickness 250 µm

Properties / Performance Values

Transmittance (380 - 780nm) > 99 %
Gap filling 5 %
Haze 0.1 %
Refractive index 1.47
Dielectric constant 6.7
Humidity resistance very good
Release of liner - inside tight
Tack medium
Release of liner - outside easy
Ageing resistance (UV) very good

Adhesion to Values

Adhesion to Glass (initial) 6.9 N/cm
Adhesion to PC (initial) 7.1 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.
