tesa® 75415
Product details and specifications

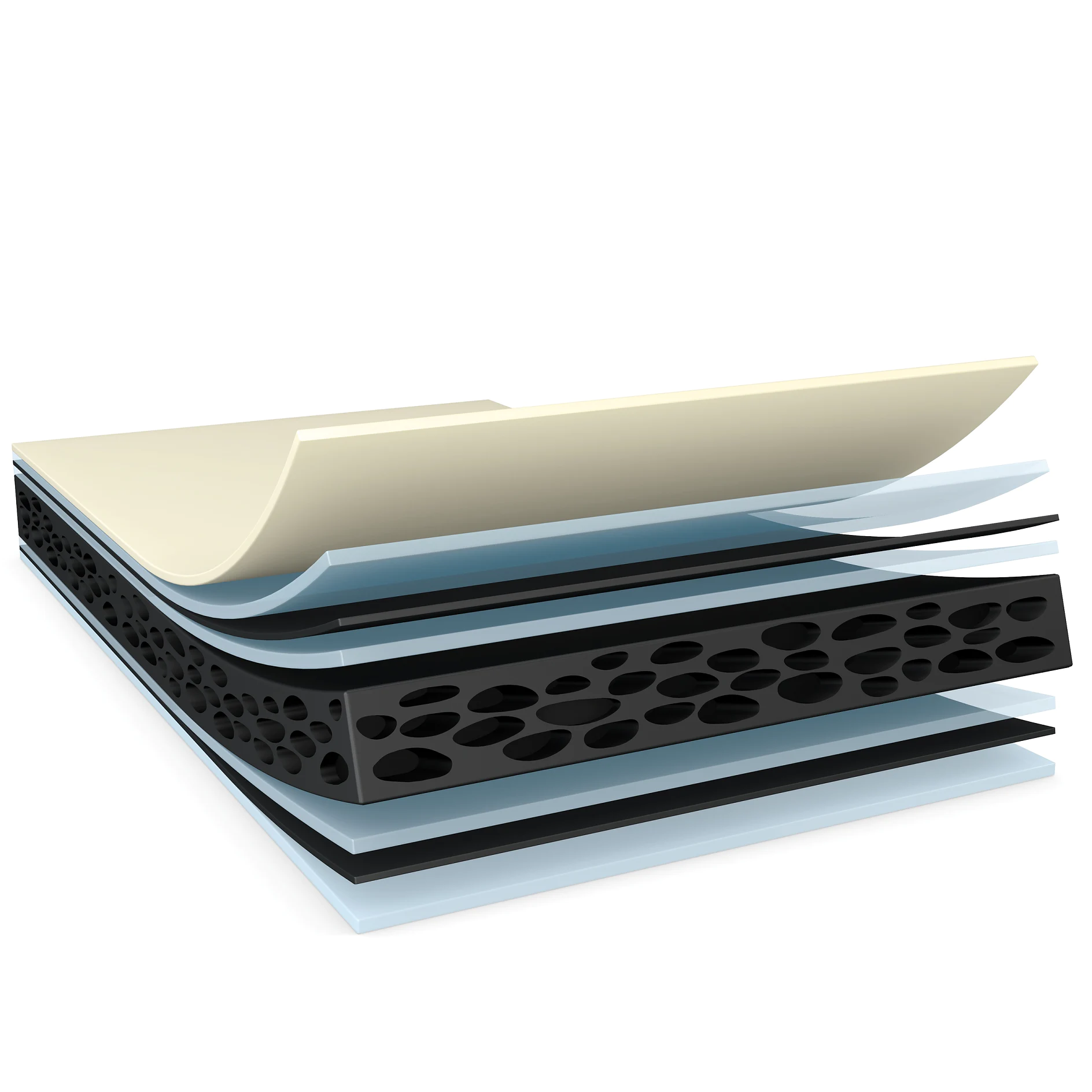

Product Construction
Adhesive Type | modified acrylic |
---|---|
Backing material | Acrylic |
Color | black |
Color of liner | transparent |
Liner Type | PET |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Weight of liner | 72 g/m² |
Product Construction
Adhesive Type | modified acrylic |
---|---|
Backing material | Acrylic |
Color | black |
Color of liner | transparent |
Liner Type | PET |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Weight of liner | 72 g/m² |
Properties / Performance Values
Temperature resistance long term | 90 °C |
---|---|
Transmittance (380 - 780nm) < | 0.1 % |
Static shear resistance at 23°C | good |
Temperature resistance short term | 140 °C |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | very good |
Properties / Performance Values
Temperature resistance long term | 90 °C |
---|---|
Transmittance (380 - 780nm) < | 0.1 % |
Static shear resistance at 23°C | good |
Temperature resistance short term | 140 °C |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | very good |
Adhesion to Values
Adhesion to Aluminium (initial) | 9 N/cm |
---|---|
Adhesion to Aluminium (after 3 days) | 12.1 N/cm |
Adhesion to Glass (initial) | 14.5 N/cm |
Adhesion to Glass (after 3 days) | 14.6 N/cm |
Adhesion to PC (initial) | 14.4 N/cm |
Adhesion to PC (after 3 days) | 16.6 N/cm |
Adhesion to Steel (initial) | 14.1 N/cm |
Adhesion to Steel (after 3 days) | 15.6 N/cm |
Adhesion to Values
Adhesion to Aluminium (initial) | 9 N/cm |
---|---|
Adhesion to Aluminium (after 3 days) | 12.1 N/cm |
Adhesion to Glass (initial) | 14.5 N/cm |
Adhesion to Glass (after 3 days) | 14.6 N/cm |
Adhesion to PC (initial) | 14.4 N/cm |
Adhesion to PC (after 3 days) | 16.6 N/cm |
Adhesion to Steel (initial) | 14.1 N/cm |
Adhesion to Steel (after 3 days) | 15.6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
