tesa® 60317
Product details and specifications

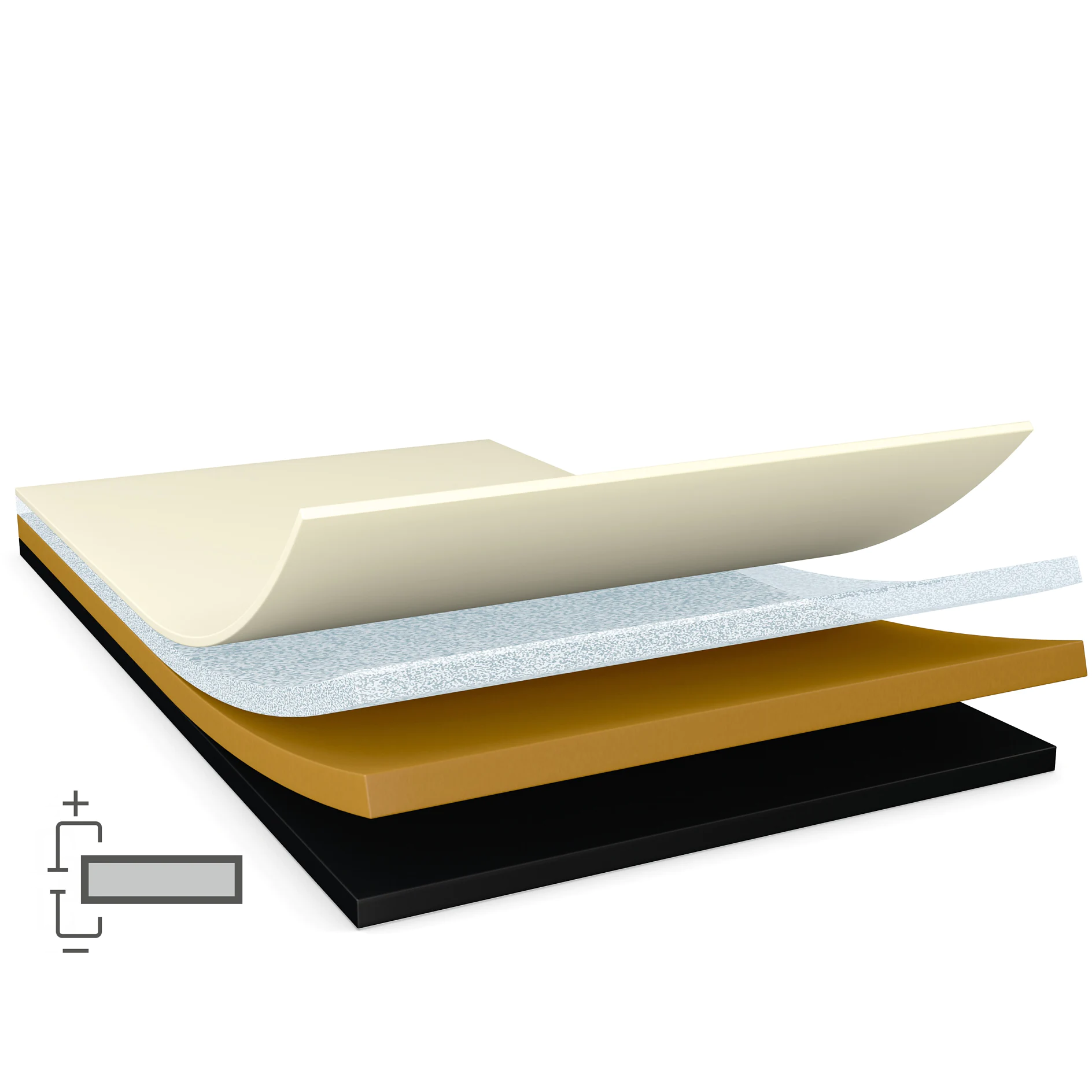

Product Construction
Adhesive Type | conductive acrylic |
---|---|
Backing material | copper film |
Color | orange |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 50 µm |
Total thickness | 30 µm |
Product Construction
Adhesive Type | conductive acrylic |
---|---|
Backing material | copper film |
Color | orange |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 50 µm |
Total thickness | 30 µm |
Properties / Performance Values
Joint resistance x-y-z-direction (50g) | 38 mOhm |
---|---|
Joint resistance x-y-z-direction (2kg) | 33 mOhm |
Contact resistance z-direction (50g) | 21 mOhm |
Contact resistance z-direction (2kg) | 18 mOhm |
Release of liner | easy |
Properties / Performance Values
Joint resistance x-y-z-direction (50g) | 38 mOhm |
---|---|
Joint resistance x-y-z-direction (2kg) | 33 mOhm |
Contact resistance z-direction (50g) | 21 mOhm |
Contact resistance z-direction (2kg) | 18 mOhm |
Release of liner | easy |
Adhesion to Values
Adhesion to Steel (50g; after 14 days) | 4.7 N/cm |
---|---|
Adhesion to Steel (50g; initial) | 3 N/cm |
Adhesion to Steel (2kg; after 14 days) | 5.3 N/cm |
Adhesion to Steel (2kg; initial) | 4.6 N/cm |
Adhesion to Values
Adhesion to Steel (50g; after 14 days) | 4.7 N/cm |
---|---|
Adhesion to Steel (50g; initial) | 3 N/cm |
Adhesion to Steel (2kg; after 14 days) | 5.3 N/cm |
Adhesion to Steel (2kg; initial) | 4.6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
