Product Construction
Backing material | PVC foam |
Total thickness | 19000 µm |
Type of adhesive | type: acrylic |

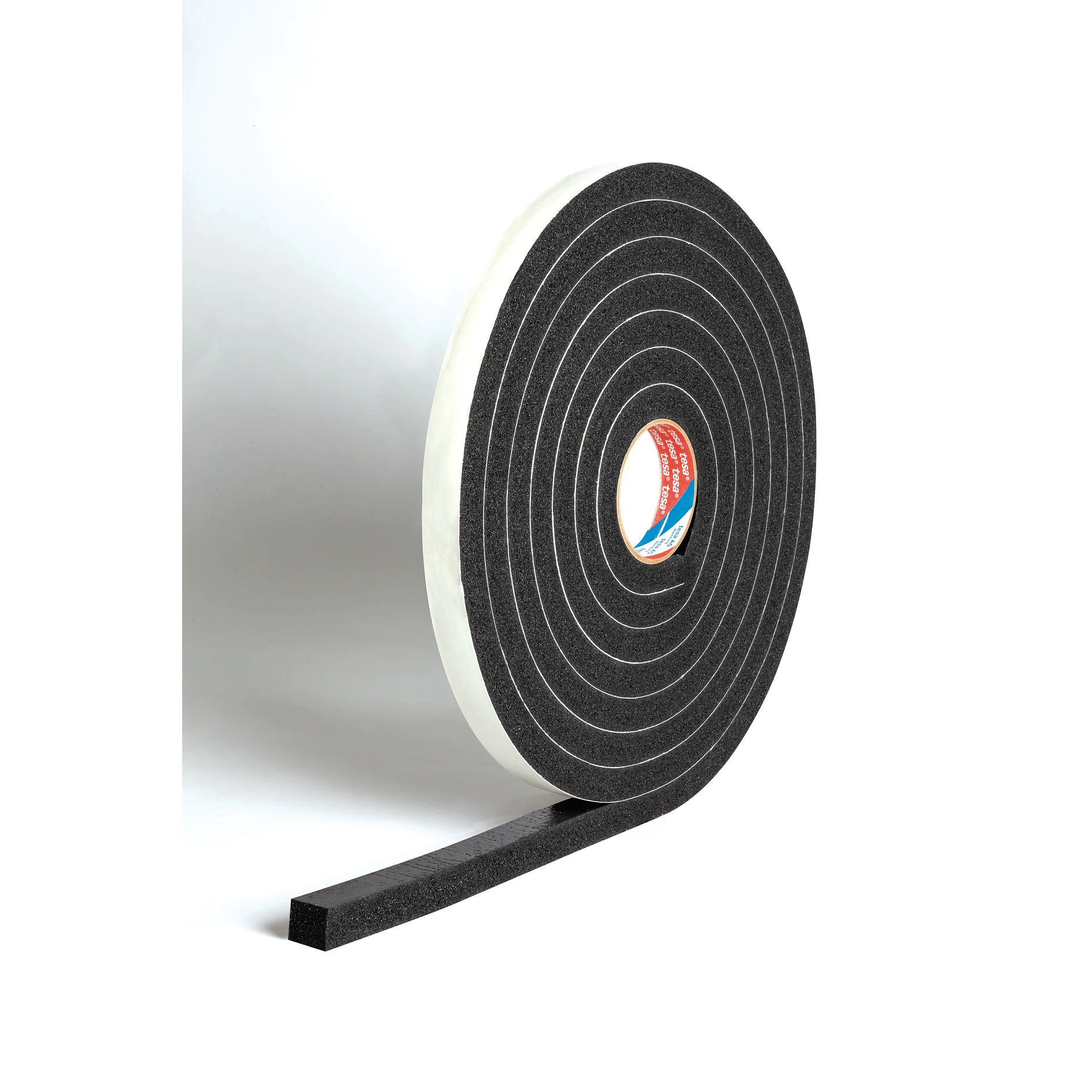

tesa ® 60119 Soft grade PVC closed cell single sided foam tape 19mm thick (black)
tesa 60119 is a 19mm thick soft grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam can create a water proof barrier when compressed, while the soft grade foam is flexible and conformable to help seal uneven surfaces. tesa 601 Series PVC foam tape is resistant to UV, ozone, oxidation and fungi. The black foam tape version is flame retardant to FMVSS 302 and approved for use in the automotive industry. tesa 601 Series is available in 3.2mm, 4.8mm, 6.4mm, 9.5mm, 12.7mm and 19mm thicknesses, in black and grey.
Backing material | PVC foam |
Total thickness | 19000 µm |
Type of adhesive | type: acrylic |
Backing material | PVC foam |
Total thickness | 19000 µm |
Type of adhesive | type: acrylic |
Suitable for die cutting | yes |
Elongation at break | 150 % |
Tensile strength cm2 | 17 N/cm² |
Hardness - Shore 00 | 21 STK |
Temperature resistance min. | -40 °C |
Temperature resistance max. | 80 °C |
Compression set | 4 % |
Suitable for die cutting | yes |
Elongation at break | 150 % |
Tensile strength cm2 | 17 N/cm² |
Hardness - Shore 00 | 21 STK |
Temperature resistance min. | -40 °C |
Temperature resistance max. | 80 °C |
Compression set | 4 % |
Adhesion to Steel | 6 N/cm |
Adhesion to Steel | 6 N/cm |
Download the files below for more technical details and information on this product.
