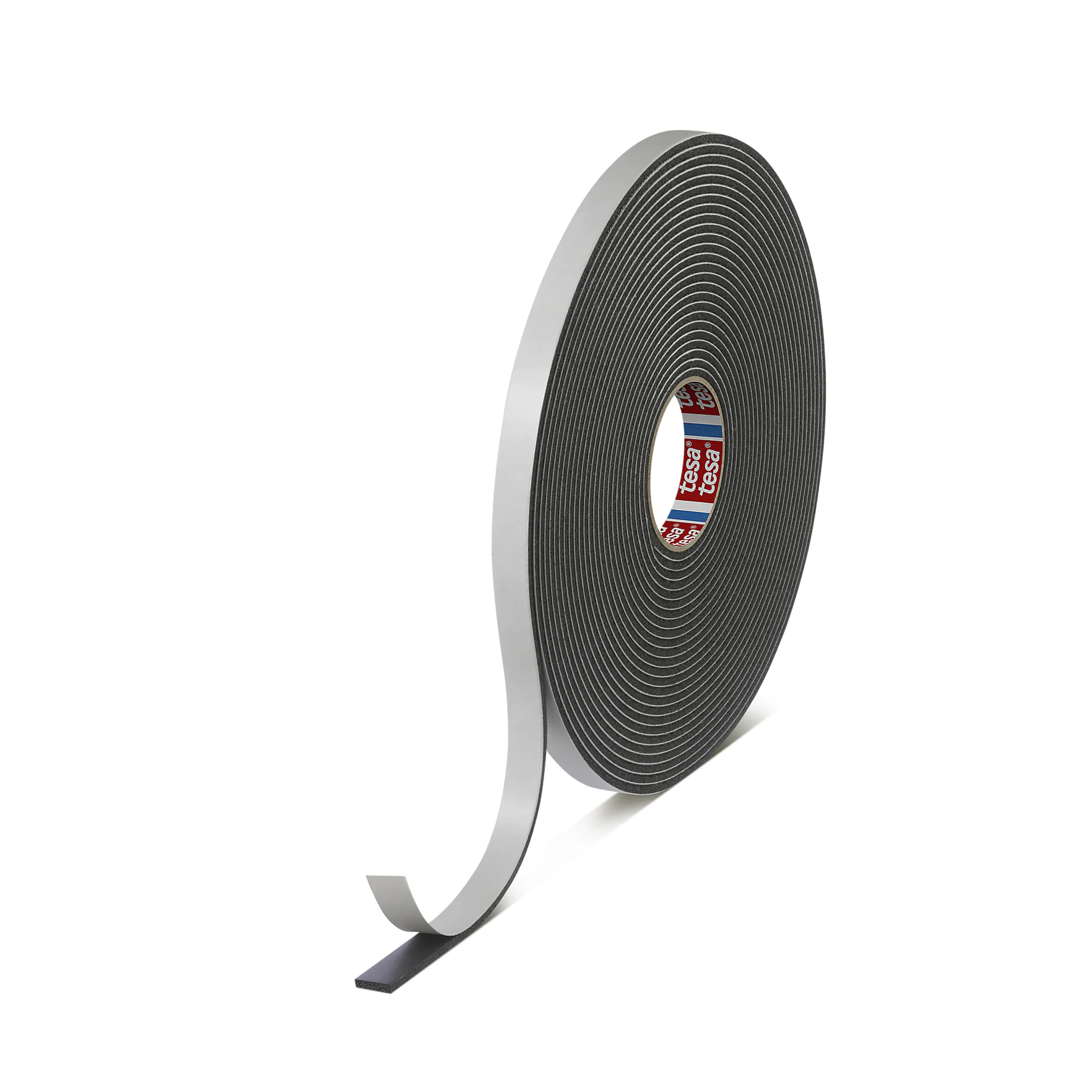

tesa ® 60105 Soft grade PVC closed cell single sided foam tape 4.8mm thick (black)
Product description
tesa 60105 is a 4.8mm thick soft grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam can create a water proof barrier when compressed, while the soft grade foam is flexible and conformable to help seal uneven surfaces. tesa 601 Series PVC foam tape is resistant to UV, ozone, oxidation and fungi. The black foam tape version is flame retardant to FMVSS 302 and approved for use in the automotive industry. tesa 601 Series is available in 3.2mm, 4.8mm, 6.4mm, 9.5mm, 12.7mm and 19mm thicknesses, in black and grey.
Product details and specifications
Application Fields
tesa 601 Series foam tape is ideal for use in recreational vehicles such as caravans and campervans, concreting and the construction of portable buildings, where uneven surfaces including corrugated sheeting require sealing.
Application ideas:
Application ideas:
- Sealing caravan panels
- Dam wall sealing in concreting
- Sealing panels on portable buildings
- Sound reduction for aluminium boat hulls
- Secondary seal in domestic glazing
- Vibration dampener on auto weather shields
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Total thickness | 4800 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Total thickness | 4800 µm |
Properties / Performance Values
| Elongation at break | 150 % |
|---|---|
| Temperature resistance max. | 80 °C |
| Chemical Resistance | good |
| Flame retardance | good |
| Tensile strength cm² | 17 N/cm² |
| Suitable for die cutting | yes |
| Hardness - Shore 00 | 21 STK |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Compression Set | 4 % |
Properties / Performance Values
| Elongation at break | 150 % |
|---|---|
| Temperature resistance max. | 80 °C |
| Chemical Resistance | good |
| Flame retardance | good |
| Tensile strength cm² | 17 N/cm² |
| Suitable for die cutting | yes |
| Hardness - Shore 00 | 21 STK |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Compression Set | 4 % |
Adhesion to Values
| Adhesion to Steel | 6 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 6 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
