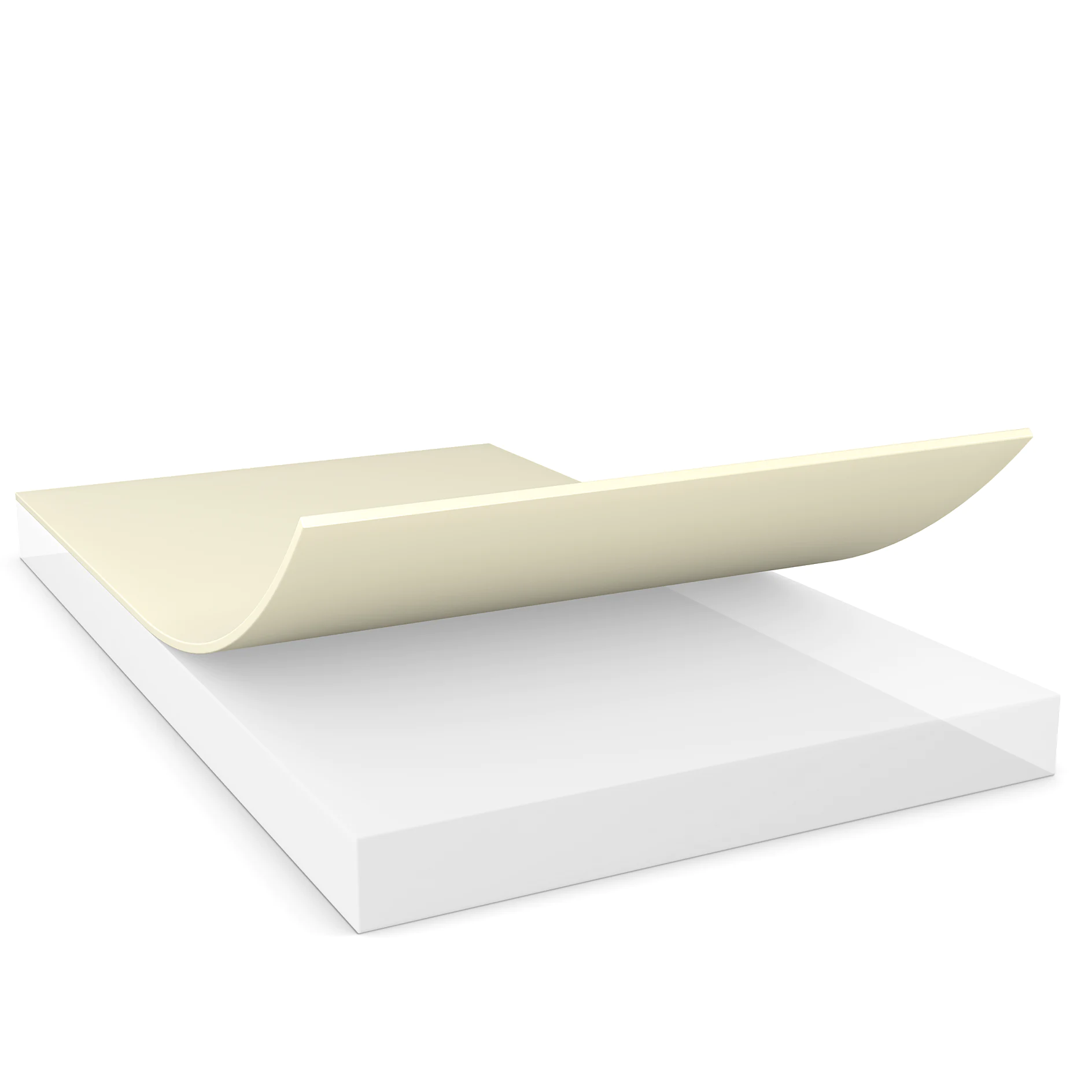

tesa® 58326
Product details and specifications
Product Construction
Adhesive Type | acrylic |
---|---|
Backing material | none |
Color | white |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 75 µm |
Total thickness | 1200 µm |
Product Construction
Adhesive Type | acrylic |
---|---|
Backing material | none |
Color | white |
Color of liner | transparent |
Liner Type | PET film |
Thickness of liner | 75 µm |
Total thickness | 1200 µm |
Properties / Performance Values
Release of liner | easy |
---|---|
Density | 1.9 g/cm³ |
Temperature resistance (125°C) | very good |
Thermal conductivity z-direction | 2 W/mK |
Breakdown voltage | 15 KV |
Flame retardancy | V0 |
Hardness - Shore 00 | 87 STK |
Temperature resistance (-40°C) | very good |
Temperature resistance short term | 150 °C |
Properties / Performance Values
Release of liner | easy |
---|---|
Density | 1.9 g/cm³ |
Temperature resistance (125°C) | very good |
Thermal conductivity z-direction | 2 W/mK |
Breakdown voltage | 15 KV |
Flame retardancy | V0 |
Hardness - Shore 00 | 87 STK |
Temperature resistance (-40°C) | very good |
Temperature resistance short term | 150 °C |
Adhesion to Values
Adhesion to Aluminium (20min @ RT, 90°) | 0.65 N/cm |
---|---|
Adhesion to Steel (initial) | 0.55 N/cm |
Adhesion to Steel (20min @ RT, 90°) | 0.55 N/cm |
Adhesion to Values
Adhesion to Aluminium (20min @ RT, 90°) | 0.65 N/cm |
---|---|
Adhesion to Steel (initial) | 0.55 N/cm |
Adhesion to Steel (20min @ RT, 90°) | 0.55 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
