Additional Info
According to DIN 18365 the surface has to be even, clean, permanently jointed and dry as well as free of oil or wax.
(Not suitable for natural stone)
(Not suitable for natural stone)
tesa® 51960

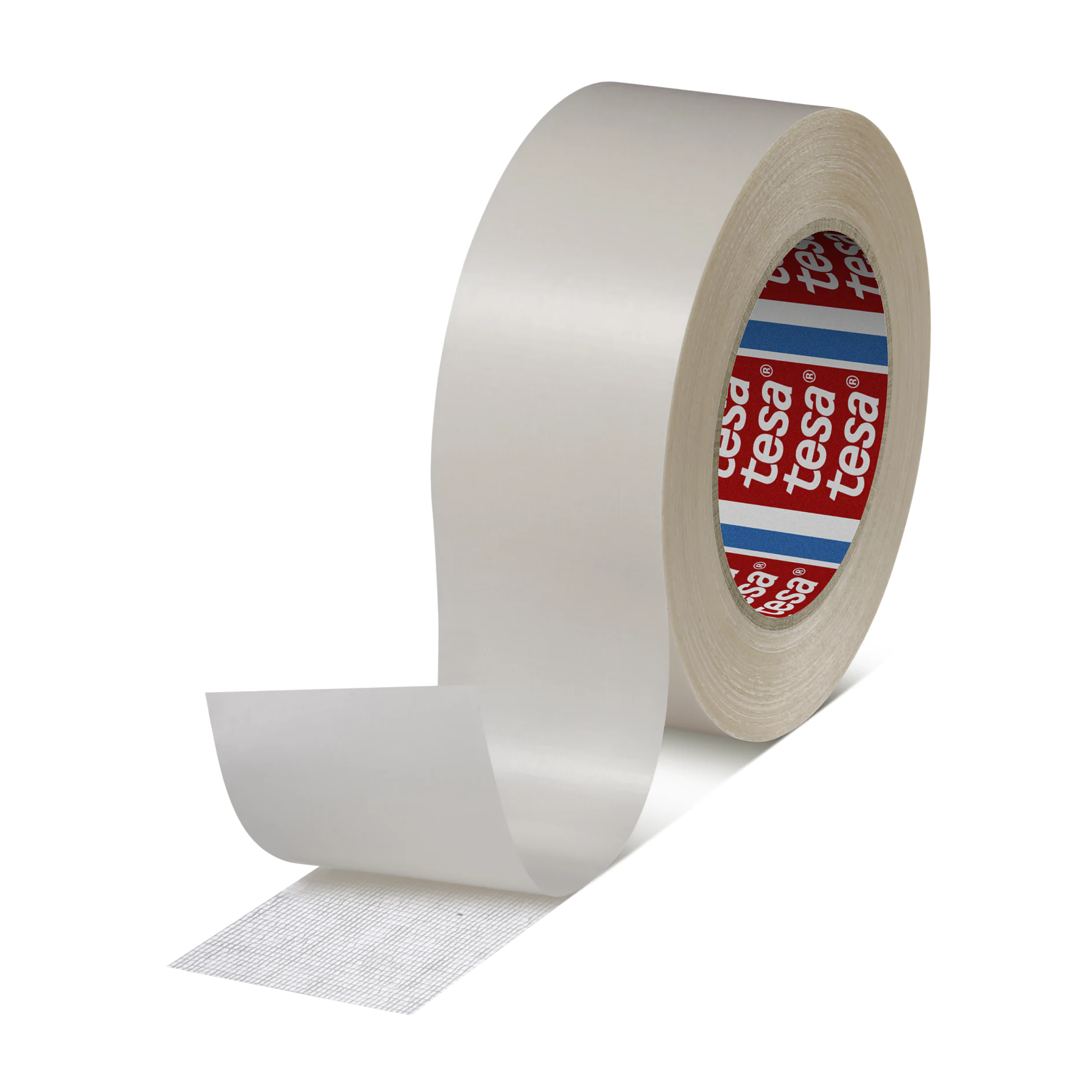

tesa® 51960 double-sided carpet laying tape
Product description
tesa® 51960 is a double-sided carpet laying tape, the open side is to a large extent residual-free removable from many surfaces and consists of PP-film with an acrylic adhesive. The different adhesion value is tailormade for carpet laying applications and guarantees a very high tack on many commonly used surfaces.
tesa® 51960 is most extensively resistant to ageing and plasticizers (no discoloration of PVC- / CV-floorings). The side with the stronger adhesion is covered with a white liner.
Product details and specifications
Application Fields
Border and butt conglutination of floor coverings based on foam or textile woven backings as well as PVC- and CV-floorings on nearly any surfaces.
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PP film reinforced by fabric |
| Color | translucent |
| Total thickness | 248 µm |
Product Construction
| Adhesive Type | tackified acrylic |
|---|---|
| Backing material | PP film reinforced by fabric |
| Color | translucent |
| Total thickness | 248 µm |
Properties / Performance Values
| Elongation at break | 80 % |
|---|---|
| Tensile strength | 30 N/cm |
| Static shear resistance at 40°C | low |
| Temperature resistance long term | 60 °C |
| Tack | good |
| Chemical Resistance | very good |
| Static shear resistance at 23°C | medium |
| Humidity resistance | very good |
| Softener resistance | medium |
| Temperature resistance short term | 120 °C |
Properties / Performance Values
| Elongation at break | 80 % |
|---|---|
| Tensile strength | 30 N/cm |
| Static shear resistance at 40°C | low |
| Temperature resistance long term | 60 °C |
| Tack | good |
| Chemical Resistance | very good |
| Static shear resistance at 23°C | medium |
| Humidity resistance | very good |
| Softener resistance | medium |
| Temperature resistance short term | 120 °C |
Adhesion to Values
| Adhesion to PE (initial) | 3 N/cm |
|---|---|
| Adhesion to PE (after 14 days) | 3.5 N/cm |
| Adhesion to PE (covered side, after 14 days) | 5.1 N/cm |
| Adhesion to PE (covered side, initial) | 4.5 N/cm |
| Adhesion to PP (initial) | 3.5 N/cm |
| Adhesion to PP (covered side, initial) | 4.2 N/cm |
| Adhesion to Steel (initial) | 4.7 N/cm |
| Adhesion to Steel (after 14 days) | 6.6 N/cm |
| Adhesion to Steel (covered side, initial) | 9 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 13.7 N/cm |
Adhesion to Values
| Adhesion to PE (initial) | 3 N/cm |
|---|---|
| Adhesion to PE (after 14 days) | 3.5 N/cm |
| Adhesion to PE (covered side, after 14 days) | 5.1 N/cm |
| Adhesion to PE (covered side, initial) | 4.5 N/cm |
| Adhesion to PP (initial) | 3.5 N/cm |
| Adhesion to PP (covered side, initial) | 4.2 N/cm |
| Adhesion to Steel (initial) | 4.7 N/cm |
| Adhesion to Steel (after 14 days) | 6.6 N/cm |
| Adhesion to Steel (covered side, initial) | 9 N/cm |
| Adhesion to Steel (covered side, after 14 days) | 13.7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
