tesa® 60204

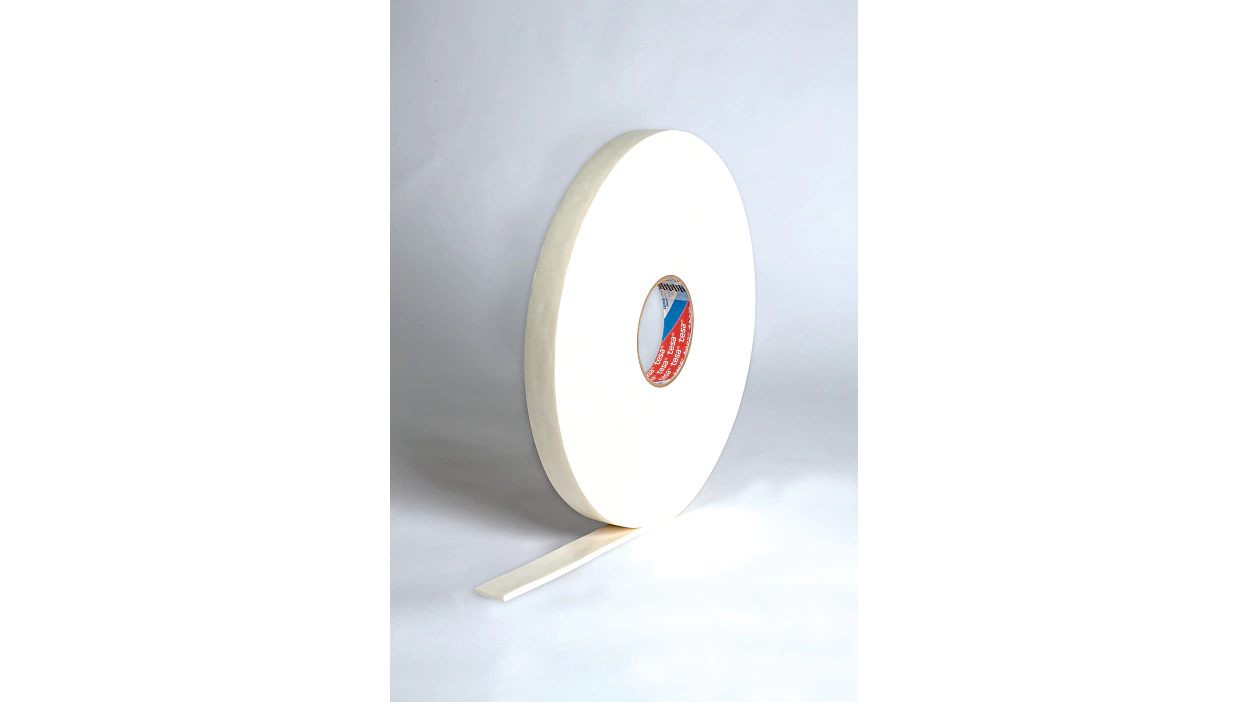

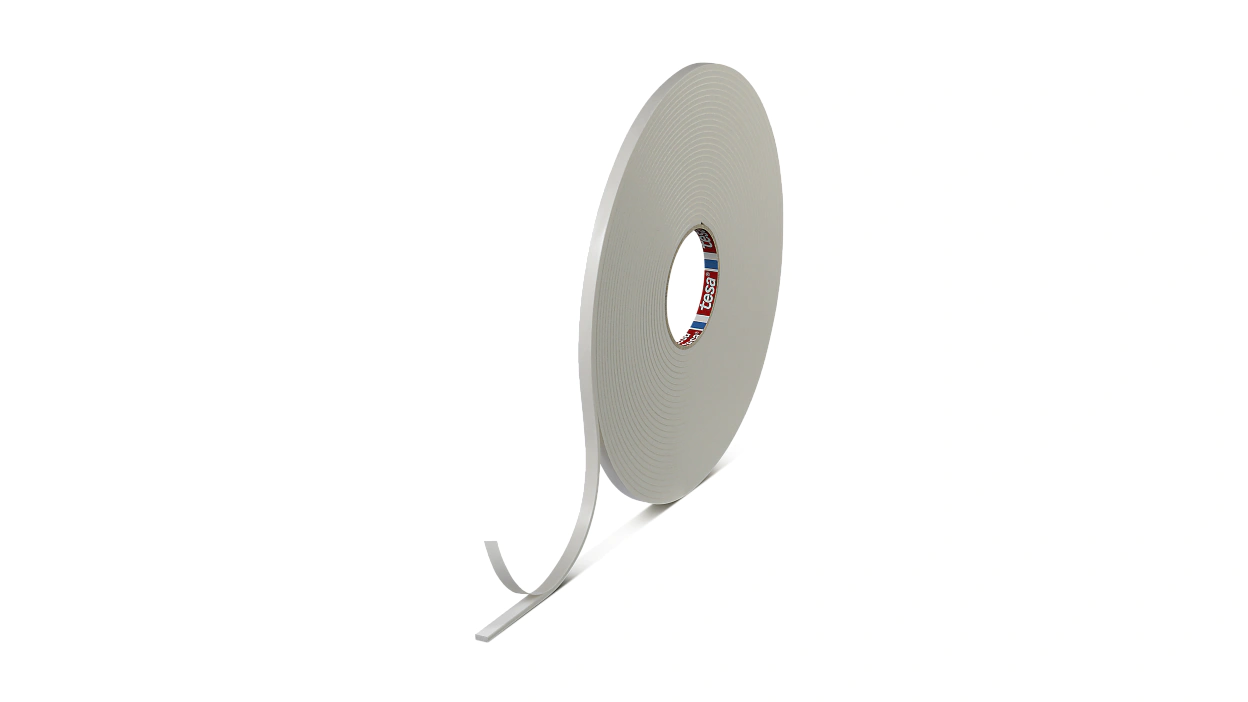

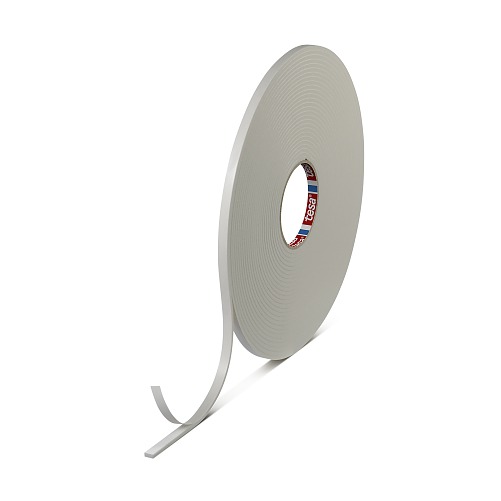

tesa ® 60204 Medium/hard grade PVC closed cell single sided foam tape 4mm thick (grey and white)
Product description
tesa 60204 is a 4mm medium/hard grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces. The higher density foam has a greater resistance to water penetration than tesa 600 and 601 Series foam tapes, making it an ideal choice for sealing applications in the glazing market. tesa 602 Series foam tape is resistant to UV, ozone, oxidation and fungi, making it well suited in tough environments. The product is silicone compatible and available in customised die cuts. Available in 1.6mm, 3.2mm, 4mm, 6.4mm, 9.5mm and 12.7mm thicknesses, in the colour grey.
Product details and specifications
Application Fields
tesa 60204 foam tape is ideal for use in concreting, marine and transportation type applications, including bus, truck and caravan manufacturing.
Application ideas:
Application ideas:
- Sealing between panels in trucks and buses
- Sealing panels and uneven surfaces in portable buildings
- Noise reduction in aluminium boat hulls
- Medical applications in hospitals and ambulances
- Sealing light fittings
- Sealing externally mounted air-conditioning fan units on walls or roofs
- Sealing electrical access panels on industrial machinery
- Sealing electrical housings, enclosures and cabinet doors
- Sealing under glass stove-tops
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Total thickness | 4000 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Total thickness | 4000 µm |
Properties / Performance Values
| Elongation at break | 130 % |
|---|---|
| Compression Set | 2 % |
| Temperature resistance min. | -35 °C |
| Hardness - Shore 00 | 28 STK |
| Temperature resistance max. | 90 °C |
| Tensile strength cm² | 34 N/cm² |
| Suitable for die cutting | yes |
Properties / Performance Values
| Elongation at break | 130 % |
|---|---|
| Compression Set | 2 % |
| Temperature resistance min. | -35 °C |
| Hardness - Shore 00 | 28 STK |
| Temperature resistance max. | 90 °C |
| Tensile strength cm² | 34 N/cm² |
| Suitable for die cutting | yes |
Adhesion to Values
| Adhesion to Steel | 2.8 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
