tesa® 60203

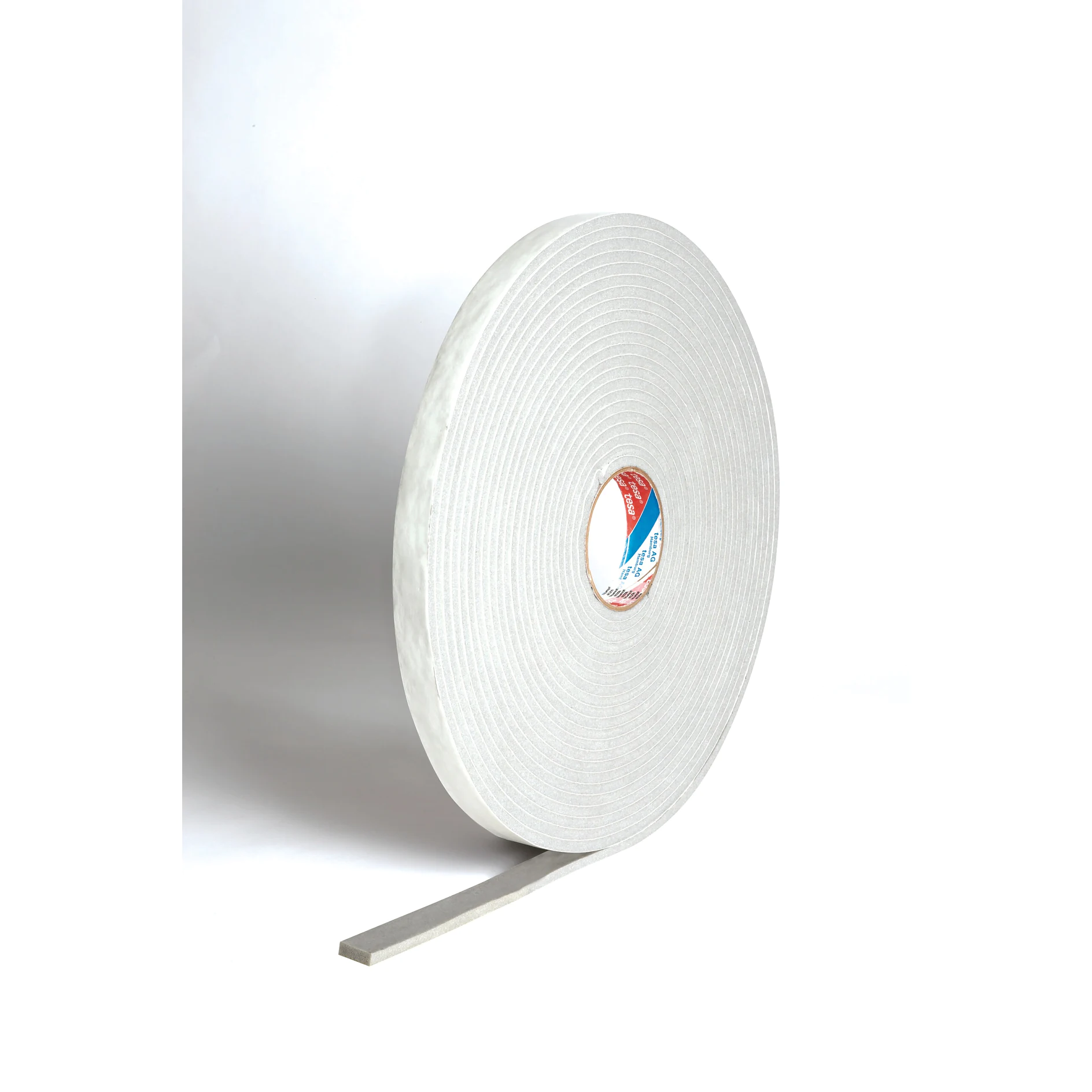

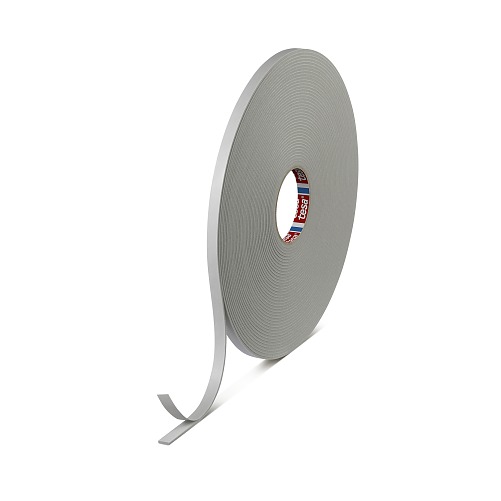

tesa ® 60203 Medium/hard grade PVC closed cell single sided foam tape 3.2mm thick (grey)
Product description
tesa 60203 is a 3.2mm medium/hard grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces. The higher density foam has a greater resistance to water penetration than tesa 600 and 601 Series foam tapes, making it an ideal choice for sealing applications in the glazing market. tesa 602 Series foam tape is resistant to UV, ozone, oxidation and fungi, making it well suited in tough environments. The product is silicone compatible and available in customised die cuts.
Product details and specifications
Application Fields
tesa 60203 foam tape is ideal for use in glazing, concreting, marine and transportation type applications, including bus, truck and caravan manufacturing.
Application ideas:
Application ideas:
- Sealing between panels in trucks and buses
- Sealing panels and uneven surfaces in portable buildings
- Dam wall sealing in concreting
- Sealing windows and windscreens on boats and yachts
- Sealing externally mounted air-conditioning fan units on walls or roofs
- Sealing electrical access panels on industrial machinery
- Sealing electrical housings, enclosures and cabinet doors
- Sealing under glass stove-tops
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Total thickness | 3200 µm |
Product Construction
| Adhesive Type | acrylic |
|---|---|
| Backing material | PVC foam |
| Total thickness | 3200 µm |
Properties / Performance Values
| Elongation at break | 130 % |
|---|---|
| Temperature resistance max. | 90 °C |
| Suitable for die cutting | yes |
| Tensile strength cm² | 34 N/cm² |
| Compression Set | 2 % |
| Temperature resistance min. | -35 °C |
| Hardness - Shore 00 | 28 STK |
Properties / Performance Values
| Elongation at break | 130 % |
|---|---|
| Temperature resistance max. | 90 °C |
| Suitable for die cutting | yes |
| Tensile strength cm² | 34 N/cm² |
| Compression Set | 2 % |
| Temperature resistance min. | -35 °C |
| Hardness - Shore 00 | 28 STK |
Adhesion to Values
| Adhesion to Steel | 2.8 N/cm |
|---|
Adhesion to Values
| Adhesion to Steel | 2.8 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
