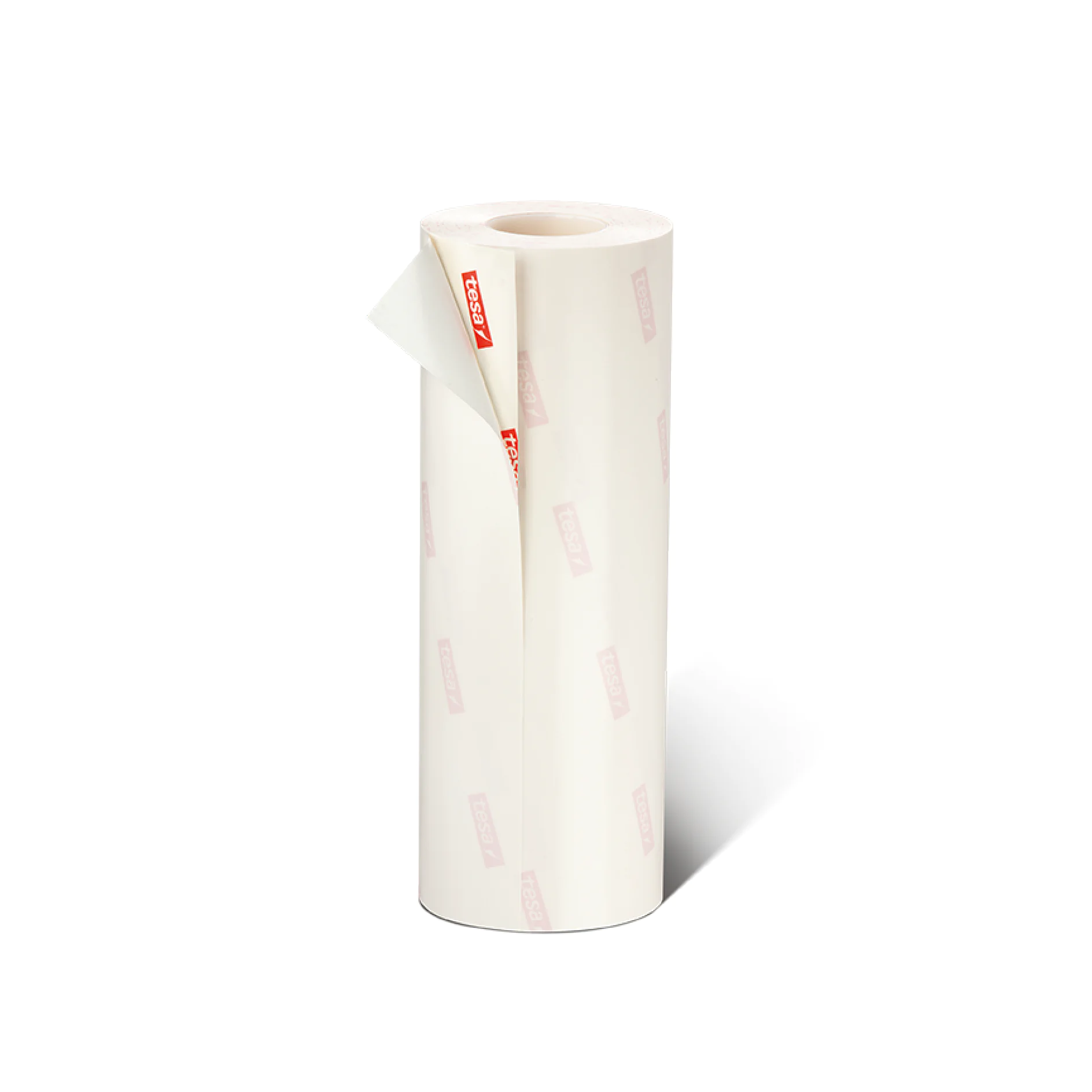

tesa® Softprint 52817 Secure

เทปโฟมสำหรับติดเพลท


Product description

เทปโฟมกาวสองด้าน

คุณสมบัติของโฟม

  • ความคลาดเคลื่อนของความหนาต่ำ
  • ติดทนนาน, คุณสมบัติการคืนตัวได้คงที่

คุณสมบัติของกาว
  • แรงเชื่อมยึดต่ำเริ่มต้นต่ำ (low tack)
  • การยึดเกาะที่แข็งแรงทั้งสองด้าน
  • ต้านทานต่อสารตัวทำละลาย

คุณสมบัติเพิ่มเติม
  • โครงสร้างแผ่นไลเนอร์เป็น PP
  • สีของโลโก้แสดงถึงความแข็งโฟม


รายละเอียดผลิตภัณฑ์และข้อมูลเฉพาะ

Application Fields

การติดเพลทที่มีความหนา 1.14 มม. (0.45‘‘) และ 1.70 มม. (0.067‘‘), backing ชนิด PET, printing plate ติดเข้ากับกับ steel / alu / PU และ glassine cylinders และ sleeves
ความหนารวม 430 µm
ประเภทกาว Tackified Acrylic
ประเภทแผ่นลอก PP
วัสดุตัวเทป PE foam with film lamination
ความแข็ง อ่อนนุ่ม
หมวดหมู่ความหนา 380
Color of logo สีแดง
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้

Get in contact with us!

ติดต่อเรา

ขอบคุณสำหรับข้อความ

ทางเราจะติดต่อกลับโดยเร็วที่สุด

Something went wrong. Please try again later.

เปรียบเทียบผลิตภัณฑ์

ชื่อผลิตภัณฑ์ tesa® Softprint 52817 Secure tesa® Softprint 73324 TP-X (EA), ปานกลาง tesa® Softprint 73322 TP-X (EA), นุ่ม tesa® Softprint 73326 TP-X (EA), แข็ง tesa® Softprint 52814 Secure tesa® Softprint 52015 Steel Master tesa® Softprint 72228 Sleevemaster tesa® Softprint 72420 FE tesa® Softprint 72028 Steelmaster tesa® Softprint 52060 BigFoam tesa® Softprint 72328 TP-X tesa® Softprint 72526 FE-X (EA), แข็ง
ความหนารวม
430 µm
550 µm
550 µm
550 µm
430 µm
430 µm
550 µm
550 µm
550 µm
550 µm
550 µm
ประเภทกาว
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
Tackified Acrylic
วัสดุตัวเทป
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam with film lamination
PE foam
PE foam with film lamination
PE foam with film lamination
หมวดหมู่ความหนา
380
500
500
500
380
380
500
500
500
1500
500
500
ความแข็ง
อ่อนนุ่ม
ปานกลาง
อ่อนนุ่ม
ปานกลาง-แข็ง
แข็ง
ปานกลาง-แข็ง
แข็ง
อ่อนนุ่มพิเศษ
แข็ง
ปานกลาง
แข็ง
ปานกลาง-แข็ง
ประเภทแผ่นลอก
PP
PP
PP
PP
PP
PP
PP
PP
PP
PP
PP
PP
สีของโฟม
สีม่วง
สีแดง
สีฟ้า
สีขาว
