tesa® Softprint 52015 Steel Master
เทปโฟมติดยึดเพลท (แข็งปานกลาง) สำหรับการพิมพ์ combination & solid
Product description
tesa® 52015 Softprint Steel Master เป็นเทปโฟมเคลือบกาวสองด้านที่ออกแบบมาโดยเฉพาะสำหรับการติด photopolymer plate ที่มีความหนา 1.70มม. (0.067 ") หรือ 2.54 มม. (0.100") ในการพิมพ์ฉลาก flexographic.
เทปโฟมแบบแข็งปานกลางนี้เป็นทางเลือกที่ดีสำหรับการพิมพ์แบบ combinations และ solid.
คุณสมบัติของโฟม:
- โฟมถูกบีบอัดได้สูงและมีการคืนตัวได้ดีสำหรับคุณภาพการพิมพ์ที่ดีเยี่ยม
- คุณสมบัติการคืนตัวคงสภาพได้ยาวนานสำหรับการพิมพ์ขนาดใหญ่และความเร็วสูง
1 มีความคงที่เที่ยงตรงด้านความหนาสำหรับการเตรียมงานพิมพ์ที่รวดเร็วและลดของเสีย
คุณสมบัติของกาว:
- กาวด้านที่เปิดออกจากม้วนมีการยึดเกาะสูงติดกับ steel cylinder หรือ Sleeve เพื่อหลีกเลี่ยงการเคลื่อนของแผ่น plate
- มีการยึดเกาะสูงกับ plate เพื่อหลีกเลี่ยงการหลุดตรงขอบหรือการเคลื่อนของ plate
- แรงยึดเกาะไม่เพิ่มขึ้นสำหรับการลอกจัดตำแหน่งใหม่ได้ง่ายและโดยเฉพาะอย่างยิ่งสำหรับการนำแผ่นงานและเทปออกได้ง่าย
- กาวที่มีโครงสร้างแข็งแรงมากสำหรับการลอกออกโดยไม่มีคราบกาวตกค้าง
คุณสมบัติเพิ่มเติม:
- PP liner ป้องกันการก่อตัวของฟองอากาศเมื่อติดตั้งแผ่นงาน

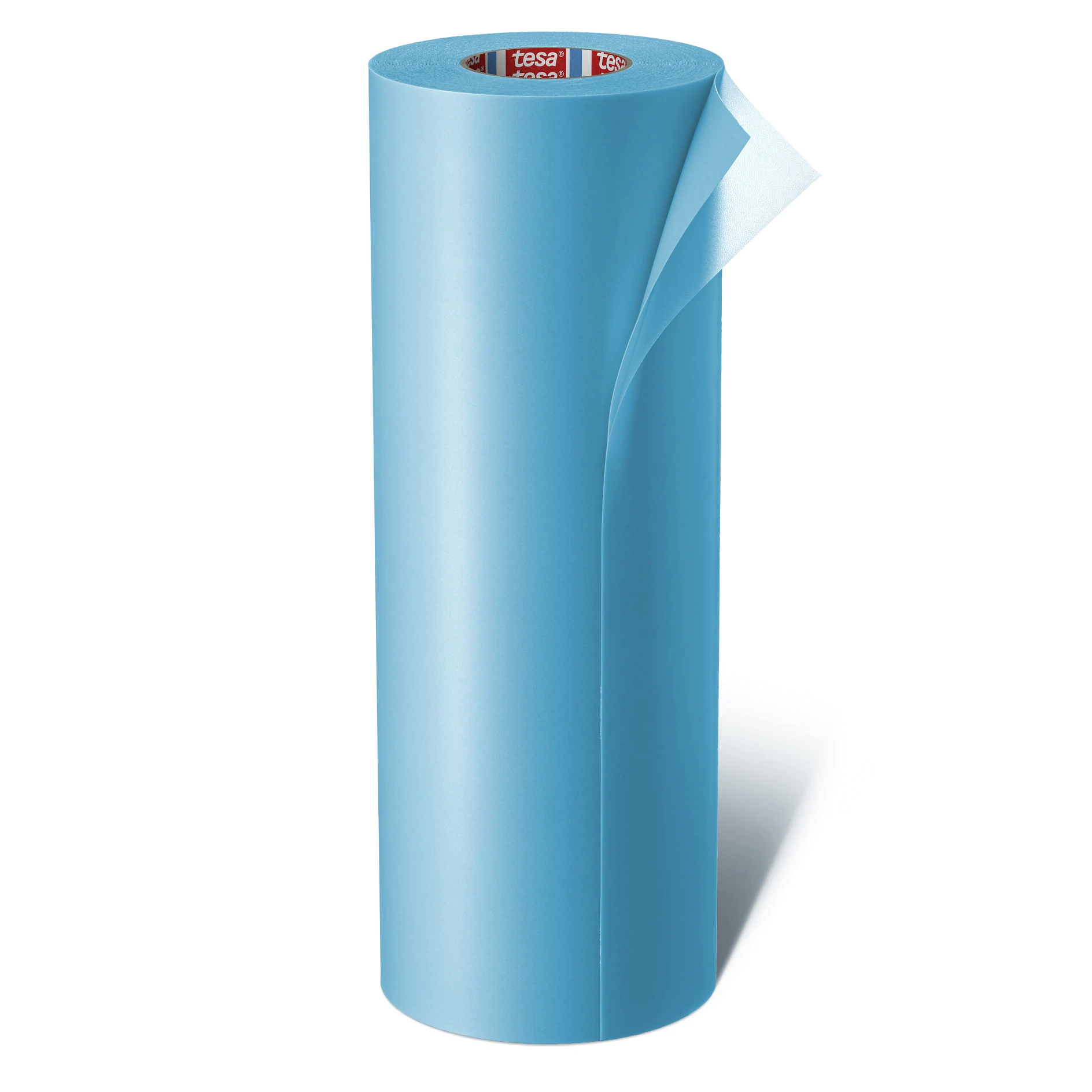

- แถบสีน้ำเงินแสดงว่าเป็น medium foam
รายละเอียดผลิตภัณฑ์และข้อมูลเฉพาะ
Application Fields
tesa® 52015 Softprint Steel Master เป็นเทปโฟมหนา 380µm (15 mil) ออกแบบเป็นพิเศษสำหรับการติด photopolymer plates ที่มีความหนา 1.70 มม. (0.067") หรือ 2.54 มม. (0.100") ในการพิมพ์ flexographic label
Product Construction
ความหนารวม | 430 µm |
---|---|
ประเภทกาว | Tackified Acrylic |
ประเภทแผ่นลอก | PP |
วัสดุตัวเทป | PE foam with film lamination |
Product Construction
ความหนารวม | 430 µm |
---|---|
ประเภทกาว | Tackified Acrylic |
ประเภทแผ่นลอก | PP |
วัสดุตัวเทป | PE foam with film lamination |
Properties / Performance Values
ความแข็ง | ปานกลาง-แข็ง |
---|---|
Color of logo | สีฟ้า |
หมวดหมู่ความหนา | 380 |
Properties / Performance Values
ความแข็ง | ปานกลาง-แข็ง |
---|---|
Color of logo | สีฟ้า |
หมวดหมู่ความหนา | 380 |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
