เทปฟิล์ม กาวสองหน้า Shock and Push-outTechnology filmic tape 300ไมครอน
Product description
tesa® 61815 เป็นเทปกาวสองด้าน ประกอบด้วย backing ชนิด PET สีดำ พร้อมด้วยกาวอะคริลิค (novel acrylic)
คุณสมบัติพิเศษ:
คุณสมบัติพิเศษ:
- การยึดเกาะดีมาก
- คุณสมบัติ push-out resistance ที่ดีเยี่ยม
- คุณสมบัติ shock resistanceที่ดีเยี่ยม
- สามารถติดบน LSEได้ ดี
- ทนต่อสภาพแวดล้อมดี เยี่ยม
- สีดำเพื่อการตรวจสอบง่าย หรือวัตถุประสงค์ของการออกแบบ
Application Fields

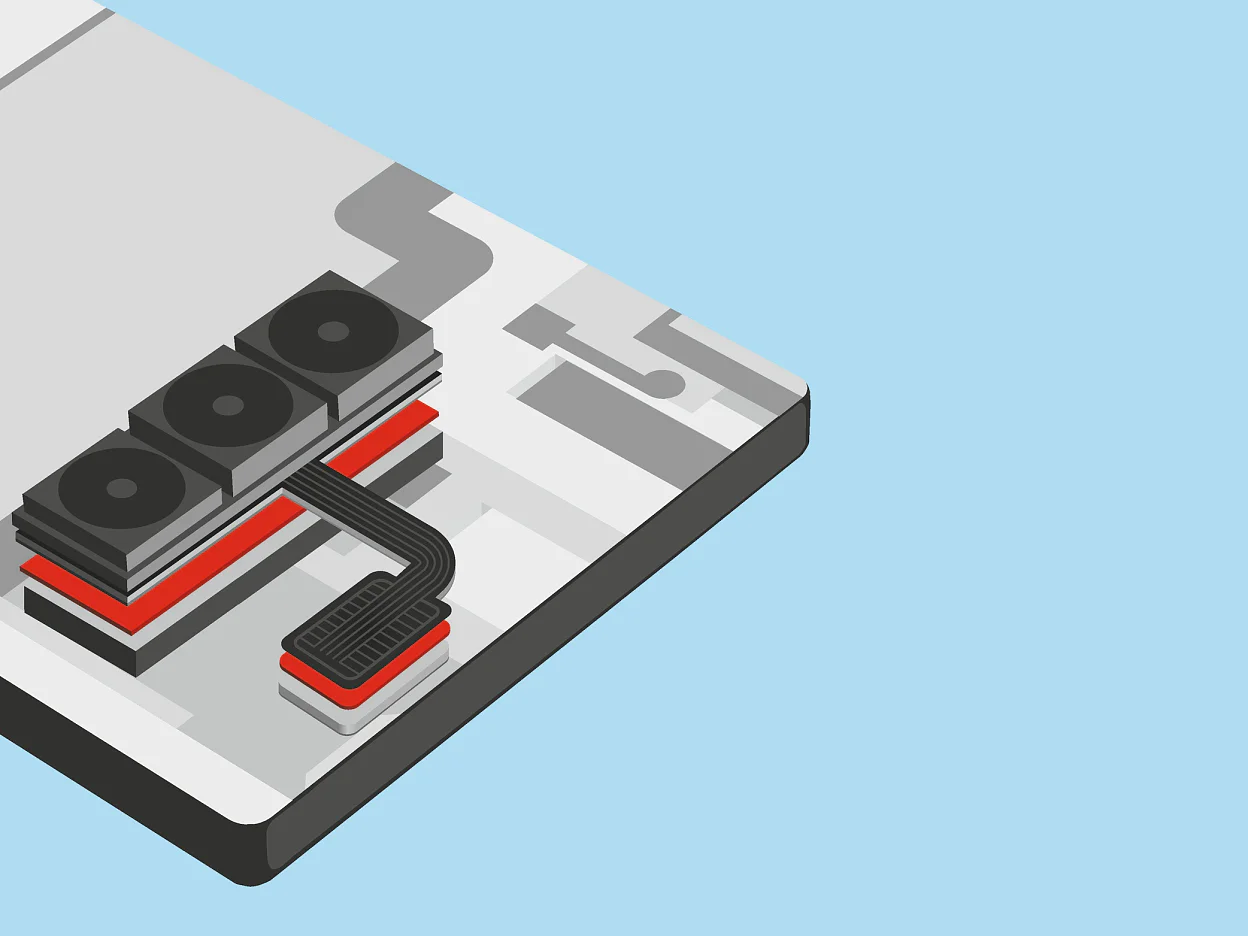

- การติดเลนส์ฝาครอบในอุปกรณ์อิเล็กทรอนิกส์
- การติดจอสัมผัสในอุปกรณ์อิเล็กทรอนิกส์
Product Construction
Backing material | PET film |
Color | สีดำ |
Color of liner | โปร่งใส |
Thickness of liner | 50 µm |
Total thickness | 300 µm |
Type of adhesive | type: modified acrylic |
Type of liner | type: PET |
Weight of liner | 70 g/m² |
Properties / Performance Values
Elongation at break | 80 % |
Tensile strength | 140 N/cm |
Humidity resistance | ดีมาก |
Static shear resistance at 40°C | ดี, กลาง |
Ageing resistance (UV) | ดีมาก |
Static shear resistance at 23°C | ดี, กลาง |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Tack | กลาง |
การทนต่ออุณหภูมิระยะเวลายาว | 100 °C |
Adhesion to Values
Adhesion to PC (initial) | 18 N/cm |
Adhesion to PC (after 14 days) | 22 N/cm |
Adhesion to Steel (initial) | 20 N/cm |
Adhesion to Steel (after 14 days) | 21 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
