tesa® 60249
เทปโฟมสีเทาสองหน้านำไฟฟ้า 700µm
Product description
tesa® 60249 ป็นเทปกาวด้านเดียว สีเทา เทปโฟมนำไฟฟ้า ประกอบด้วยเนื้อโฟมที่มีรอยปรุเคลือบด้วยสารนำไฟฟ้าและกาวนำไฟฟ้า
tesa® 60249 คุณสมบัติพิเศษ.
- ความหนา: 700ไมครอน
- สามารถนำไฟฟ้าในทิศทาง XYZ ได้ดีเยี่ยม แม้จะอยู่ในที่ที่มีอุณหภูมิสูงและมีความชื้น
- ระดับการยึดติดสูง แม้จะอยู่ในสภาวะแวดล้อมที่เลวร้าย
- รองรับแรงกระแทกและการสั่นสะเทือนได้ดี
- เนื้อโฟมมีความเสถียรสูงเพื่อหลีกเลี่ยงการหลุดล่อนออกมาเป็นชิ้นเล็กชิ้นน้อย
รายละเอียดผลิตภัณฑ์และข้อมูลเฉพาะ
Application Fields
- การใช้งาน EMC เช่น สายดิน
- งานElectrostatic discharge applications

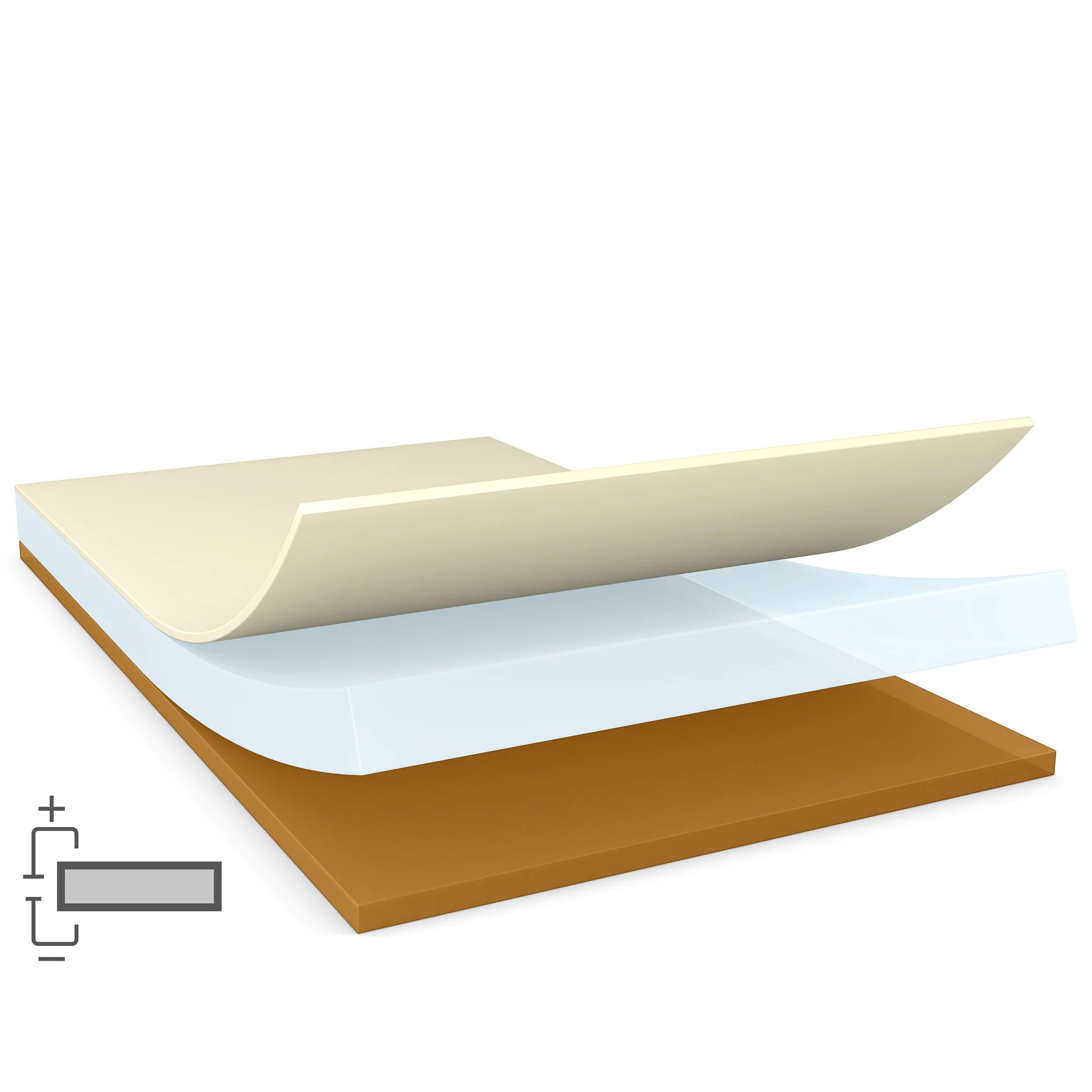

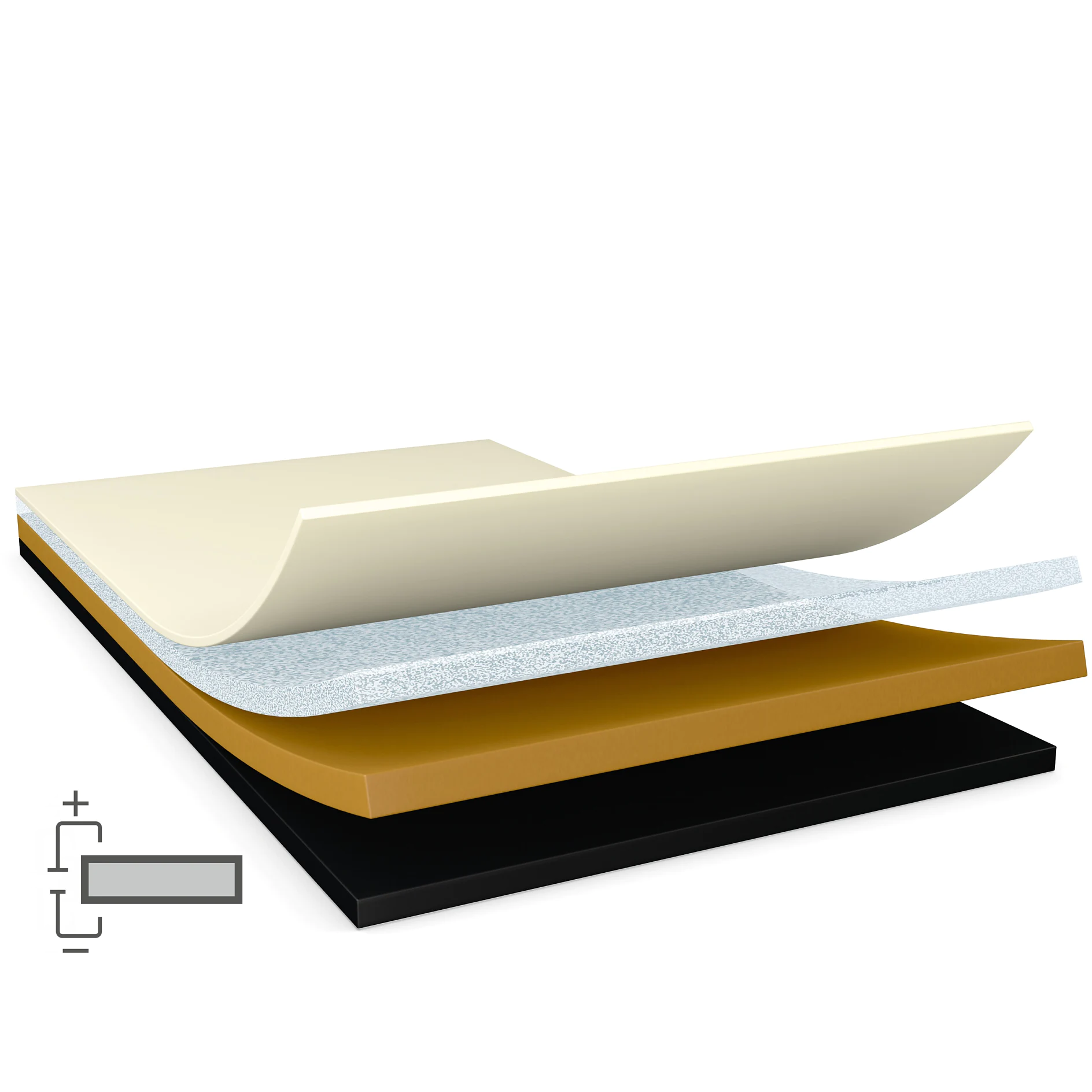

Product Construction
ความหนาของแผ่นลอก | 120 µm |
---|---|
ความหนารวม | 700 µm |
ประเภทกาว | conductive acrylic |
ประเภทแผ่นลอก | กระดาษเคลือบ PE |
วัสดุตัวเทป | conductive foam |
สี | สีเทา |
สีของแผ่นลอก | logo สีขาว/น้ำเงิน |
Product Construction
ความหนาของแผ่นลอก | 120 µm |
---|---|
ความหนารวม | 700 µm |
ประเภทกาว | conductive acrylic |
ประเภทแผ่นลอก | กระดาษเคลือบ PE |
วัสดุตัวเทป | conductive foam |
สี | สีเทา |
สีของแผ่นลอก | logo สีขาว/น้ำเงิน |
Properties / Performance Values
การแกะแผ่นลอก | ลอกง่าย |
---|---|
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
ทนต่อการสัมผัสตามแนวความหนา (เริ่มต้น) | 0.03 Ohm / square inch |
แรงต้านพื้นผิวบนแนวแกน xyz | 0.2 Ohm / square |
Properties / Performance Values
การแกะแผ่นลอก | ลอกง่าย |
---|---|
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
ทนต่อการสัมผัสตามแนวความหนา (เริ่มต้น) | 0.03 Ohm / square inch |
แรงต้านพื้นผิวบนแนวแกน xyz | 0.2 Ohm / square |
Adhesion to Values
การยึดเกาะกับเหล็ก (หลังจาก 14 วัน) | 7.5 N/cm |
---|
Adhesion to Values
การยึดเกาะกับเหล็ก (หลังจาก 14 วัน) | 7.5 N/cm |
---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
