Additional Info
- Technical data acc. to LV 312
- Applicable for red ring assembly aid

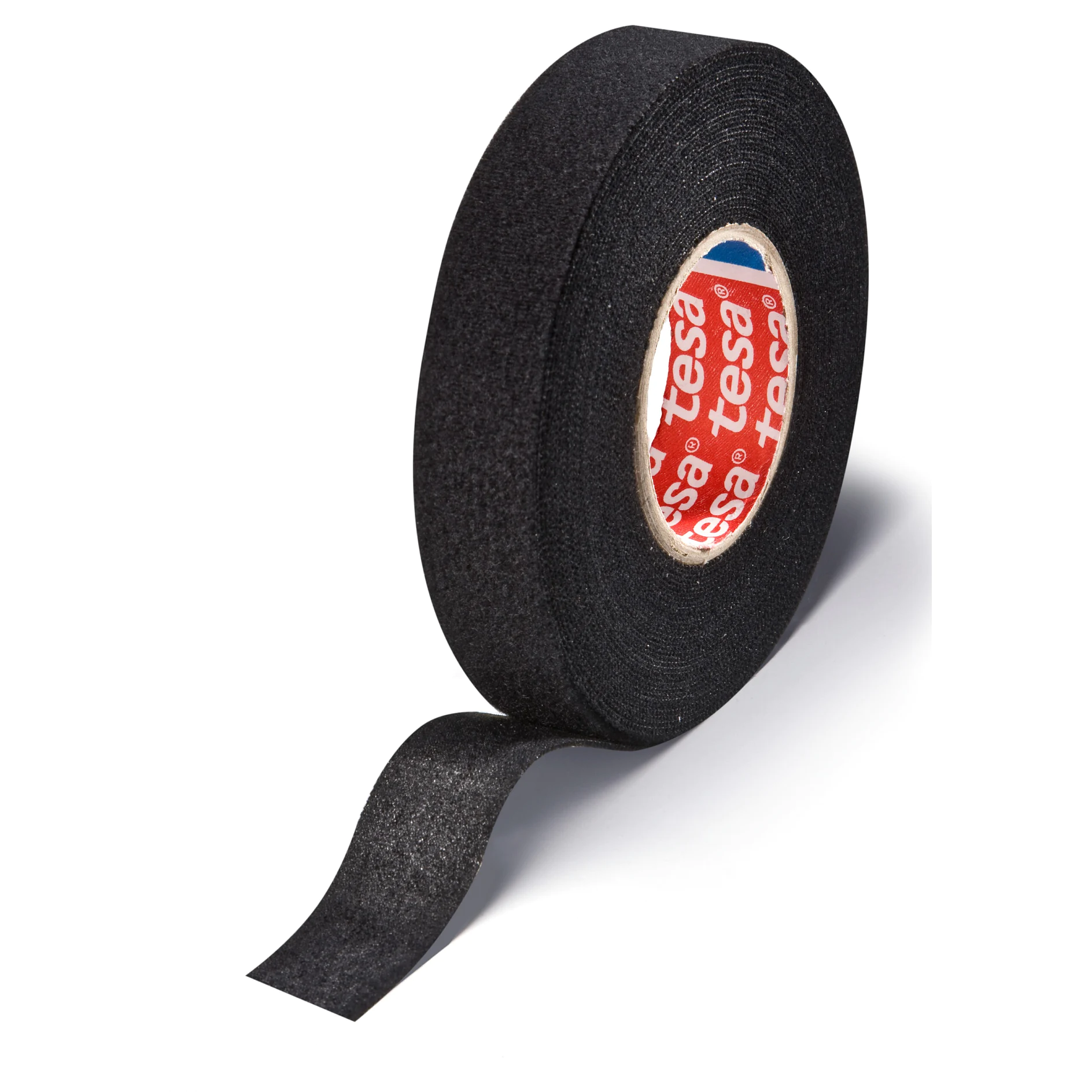

tesa® 4606
PET velour tape for high noise damping
Product description
tesa® 4606 is a thick PET velour wire harness tape with an acrylic based adhesive.
Major Features:
- Temperature resistance 125°C/3000h
- Exceptionally high noise damping
- Abrasion resistant
Color: Available in black
Product details and specifications
Application Fields
tesa® 4606 is designed for the passenger compartment, providing high noise damping.
Product Construction
| Backing material | PET velour |
|---|---|
| Total thickness | 500 µm |
| Type of adhesive | acrylic |
Product Construction
| Backing material | PET velour |
|---|---|
| Total thickness | 500 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 80 N/cm |
| Noise damping (LV312) | Class D |
Properties / Performance Values
| Elongation at break | 40 % |
|---|---|
| Tensile strength | 80 N/cm |
| Noise damping (LV312) | Class D |
Adhesion to Values
| Adhesion to steel | 1 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 1 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
